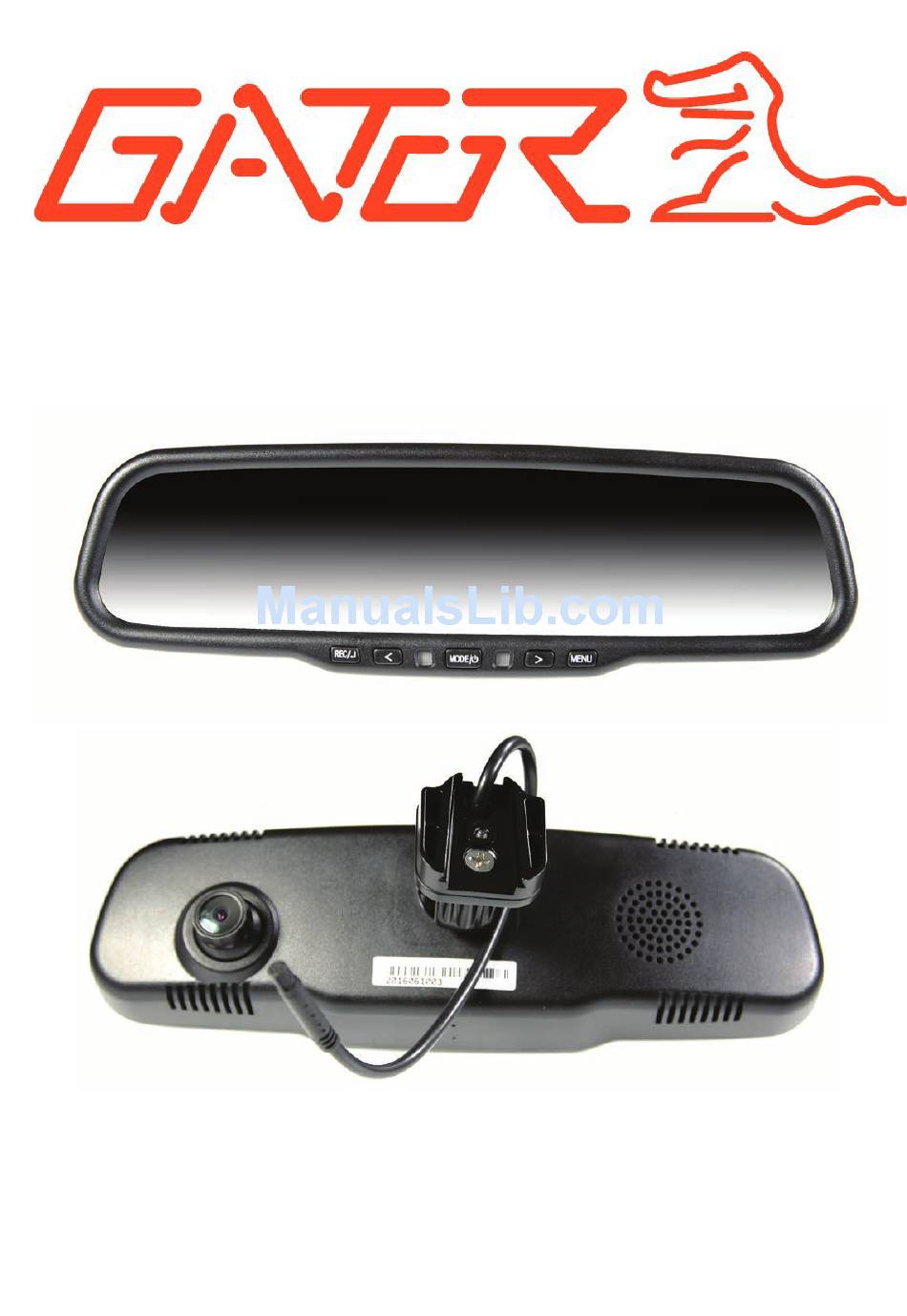

- Page 1 USER G UIDE G R430EDR ...
-
Page 2: Product Overview

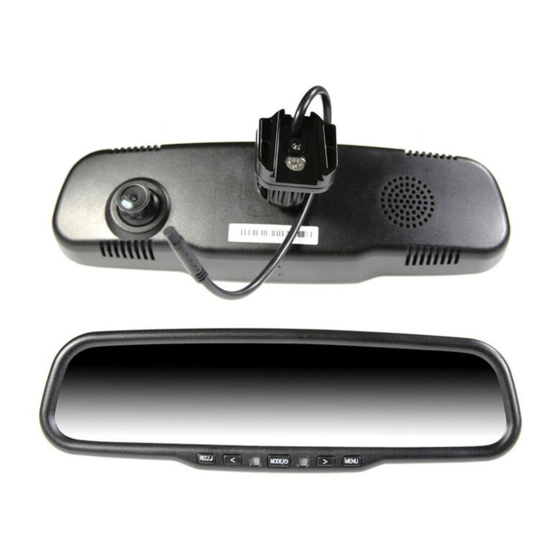

Product Overview The GR430EDR is an OE Grade Mirror Monitor with a Full HD 1080P DVR. The dual function Mirror Monitor/ DVR is just like a normal rear view mirror with a built in 4.3” screen allowing you to see what is behind the vehicle when reverse gear is engaged (additional rear view camera needed). -
Page 3: Wiring Cover
Do not use the Mirror/DVR in a damp working environment, as it is not waterproof. Do not open or try to repair the Mirror/DVR by yourself. If the unit or any accessories for the Mirror/DVR have any problems, please take it to an authorized repair agent for repair. Do not use chemicals, solvents or cleaners to clean the DVR, please use a moist soft cloth. -
Page 4: Product Structure
Product Structure: 1) Record 6) DOWN /adjustment “+“/ Zoom 2) UP /adjustment “-“/ Zoom 7) Menu 3) Ambient light sensor 8) Adjustable DVR camera 4) Mode 9) Speaker 5) Working indicator 10) Micro SD Card slot... -
Page 5: Button Instructions
System and DVR Operation 1. This system has signal-sensing. When the Video 1 or 2 inputs see a signal, the display will automatically turn on. When the signal is removed, it will automatically switch to movie mode. If both inputs see a signal, Input 2 will override Input 1. 2. - Page 6 DVR Menu Operation Instruction This device provides various menu settings for users to set up the system. Generally, five modes, including Movie Mode, Still Capture, Playback, Media Tool, and General Settings. Before enter into button Main Menu interface, please turn off the video recording by short pressing Movie Mode While in the movie mode, push button to access the Movie Mode menu interface, the...
-
Page 7: Playback Instructions
Still Capture While in the mode of Still Capture, just push button to access the Still Capture menu interface, the instructions as follows: Still Capture Instructions Submenu Still Image Select the still image size 14M/12M/8M/5M/3M/2M/1.2M/VGA Size Still Quality Select the still image quality Super Fine/Fine Select mode for various Scene... - Page 8 Media Tool While in the mode of Media Tool, just push button to switch into the Media Tool menu interface, the instructions as follows: Media Tool Instructions Submenu Format SD-Card All data will be deleted YES/NO SD-Card Information Movie Time Left, Photos Left General Settings In any mode, just push the MENU key and then push the MODE key to switch into the General Settings menu interface, the instructions as follows:...
-
Page 9: Installation
Installation Notes This system is has signal sensing, there is no “reverse trigger wire” in the wire harness. Be sure to use a relay with CANBUS vehicles (not included) to power your camera, as most vehicles’ reverse lamp wires are now variable voltage wires, and will cause a fuzzy or distorted image. (PIC 2) Installation 1. -
Page 10: Power Connector
Adding a reverse camera Installing optional reversing camera (not included)(Gator G30C model) (Connects to video input source) 6 Metres Moulded splitter 1.5 Metres Power connector (Positive wire connects to reversing lamp/ Negetive wire connects to chassis or negative of lamp) -
Page 11: Infringement Of Copyright Warning
Technical Assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 –...
