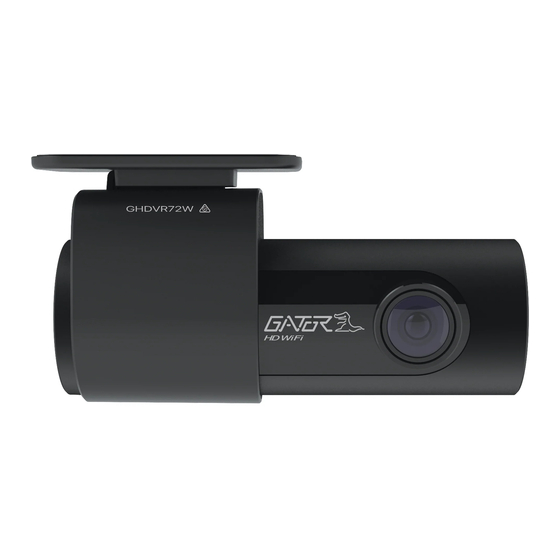

- Page 1 HDVR72W HD 720P wIFI DaSH cam PRODUCT USER MANUAL 720P Super Resolution Hand Gesture Adhesive G Sensor Wide Angle Wide Angle GPS Option Capacitor Photo Function Mount ...
-
Page 2: Introduction
DASH CAM simply mounts to the windscreen and records footage onto a Micro SD memory card. It has built-in WIFI and interfaces with your smartphone. It transfers the user interface to the phone via the Gator Dash Cam APP. It has a G-sensor with adjustable sensitivity and loop recording functionality. ... -
Page 3: Table Of Contents
Table of Contents Introduction…………………….…………………………………………..2 Product overview………………………..…………………………………2 Product features …………………………………………………………..2 Table of contents ………………………………..…………….………….3 Package components ………………………………..…………….…….4 Optional accessories…...…..……………………………………………..4 Product structure……………………………….……………….…...…..5 Installation of Dash Cam…..………………..……….…...……….…..6 Fixing the Dash Cam…..…..……………………………………………..7 Indicator lights………….………………………………………………..7 Hand gesture photo function………….………………………………..7 Downloading the Dash Cam WiFi App………………………………….7 Pairing the Dash Cam to a Smartphone…….……………………….…8 Dash Cam interface ..……………..…………..……………...………..9 Dash Cam App functions ..…………... -
Page 4: Package Components
GHDVR72W User Guide Optional accessories: GPS7282W & GHWCUSB (Sold separately) The GATOR GPS7282W antenna enables the user to connect directly to the DASH CAM for power and to use the GPS tracking and recording function via the App. The GATOR GHWCUSB enables a professional installation of a GATOR DASH CAM into your vehicle. -
Page 5: Product Structure
Product structure: Camera Gesture photo function Speaker... -
Page 6: Installation Of Dash Cam
Micro USB power socket Card slot Installation of Dash Cam 1. Insert adhesive mount into the mounting bracket fixing point on the DASH CAM. 2. Fix device onto a clean windscreen where the vision is not blocked (Place close to rear-view mirror is recommended). Don’t install device on airbag or within its working range. -
Page 7: Fixing The Dash Cam
When you wave your hand in front of the gesture photo sensor, the Dash Cam will make a click sound and automatically takes a photo. Downloading the DASH CAM WiFi APP On your Smartphone search Gator Dash Cam APP. For iPhones search the APP Store or for Android devices via Google Play. -
Page 8: Pairing The Dash Cam To A Smartphone
Pairing the Dash Cam to a Smartphone On the Smartphone to the Gator Dash Cam APP and press the Pair icon. This will go to your WiFi settings and display all devices for connection. Select your Dash Cam model. Enter the password 12345678. Join then Launch Dash Cam... -
Page 9: Dash Cam Interface
DASH CAM interface Once paired to your DASH CAM select the connect icon to access functions. ... -
Page 10: Dash Cam App Functions
DASH CAM APP functions DASH CAM 1. To take a picture press white button in the centre 2. To access my Dash Cam videos press video icon 3. To access Dash Cam settings press settings icon Factory Reset To hard reset the device in the case of a system jam or crash. - Page 11 Ignition Auto Power On/Off: Once power is connected to the device (ie: when the vehicles ignition is turned on), the DASH CAM will automatically turn on and start recording. When the power is disconnected, or car is turned off, the DASH CAM will automatically save the file and shutdown.
-
Page 12: Instructions For Video And Photo Playback
VideoPlay 1.0.0.1 viewer from the web site. This is for PC platforms only. www.tdj.com.au/firmware/Gator/DVR Dash Cams/GHDVR72W-GHDVR82W ATTENTION: To avoid any possible GPS signal interference, make sure the DASH CAM is away from any other car audio equipment. -
Page 13: Product Specification
Product specifications Product Feature HD Camera, HD Recording Light sensor 2MP CMOS sensor G-sensor Three axis accelerometer WiFi 2.4GHz 802.11 b/g/n Lens 152 Degree Wide Angle Fixed focus, F = 2.2 English/Simplified Chinese/Traditional Language ... -
Page 14: Trouble Shooting Guide
Trouble shooting guide Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. -
Page 15: Safety Information & Warnings
Safety information & warnings Do not use the DASH CAM in damp working conditions; the DASH CAM is not waterproof Do not try opening the shell or trying to repair the DASH CAM by yourself. If the accessories for the DASH CAM have any problems, please take it to an authorised repair agent for repair. ... -
Page 16: Technical Assistance
Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference. If you would like to download a digital copy of this manual, or other Gator manuals/software, please visit the http://gatordriverassist.com website and click on ‘Firmware & Manuals” for information on where to find the manuals/software.
