GRV93MKT
USER MANUAL
For more information
on the Gator range
go to our website
gatordriverassist.com
INCLUSIONS:

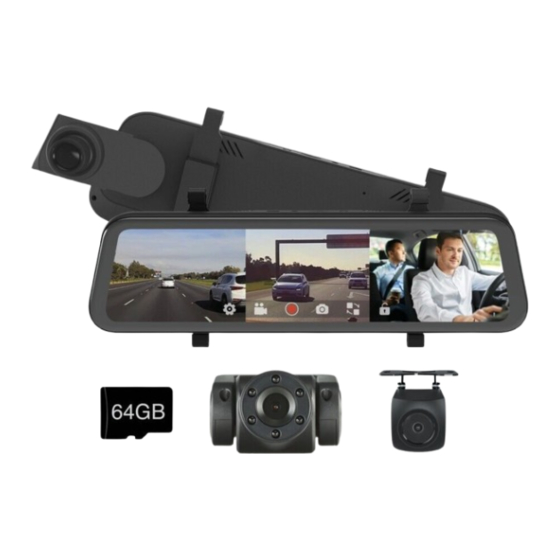

Mirror Monitor, Rear Camera, In-Cabin Camera, Camera Splitter, Reverse
Camera Lead With Trigger Wire, 12/24V DC Wiring Harness
(Hardwired Regulator) , 64GB Micro SD Card & Mounting Hardware
Advertisement
Table of Contents
Related Manuals for Gator GRV93MKT
Summary of Contents for Gator GRV93MKT
- Page 1 GRV93MKT USER MANUAL For more information on the Gator range go to our website gatordriverassist.com INCLUSIONS: Mirror Monitor, Rear Camera, In-Cabin Camera, Camera Splitter, Reverse Camera Lead With Trigger Wire, 12/24V DC Wiring Harness (Hardwired Regulator) , 64GB Micro SD Card & Mounting Hardware...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gator GRV93MKT Mirror Monitor. This product is a convenient and durable travelling video and data recorder. Please ensure that you have read the product manual and instructions in full, prior to installation and use. -
Page 3: Table Of Contents
Table of contents Introduction..............2 Product features..............2 Table of contents..............3 Package components............4 Product structure..............5 Installation of the Mirror Monitor...........6 Touch screen functions............9 Settings (Common Settings)..........10 Settings (Driving Settings)..........11 Settings (Time Lapse Recording)........11 Video playback mode............12 Connecting to a computer..........12 G-sensor sensitivity............12 Reversing guide lines............13 Formatting SD card............13 Infringement of copyright warning........13... -
Page 4: Package Components
Package components GRV93MKT Mirror Monitor Camera Splitter 12/24V DC Wiring Harness (Hardwired Regulator) Reverse Camera Lead with Trigger Wire Rear Camera In-Cabin Camera Mirror protector pads & Mounting screws & 3M adhesive Micro SD rubber mounting clips for butterfly camera... -
Page 5: Product Structure
Product structure 1) LCD touch screen 5) Camera Input 2) Power button 6) Forward recording camera 3) Power Input 7) Mounting clip-on system 4) Micro SD card slot... -
Page 6: Installation Of The Mirror Monitor
Installation of the Mirror Monitor Before After Flexible bands go behind the existing vehicles mirror and attach to the plastic hooks on Gator Mirror Monitor. 40MM 40MM The forward facing cameras mounting arm can be extended outwards as well as the camera lens angled up and down. - Page 7 Installation of the Mirror Monitor 1. Insert Micro SD card into the Mirror Monitor. Once the device powered it will ask you to format the SD card. 2. Clip on mirror design securely mounts on the existing rear view mirror in the vehicle by stretching the bands at the back. There are two positions based on thickness of existing mirror.
- Page 8 Installation of the Mirror Monitor 6. Connect the In-Cabin camera to the camera splitter cable. Test the camera is working correctly and orientation before fixing the cable and securing the camera mount on your vehicle. Mirror orientation can also be changed on the touch screen . 7.
-
Page 9: Touch Screen Functions
Product structure Touch screen functions 1) Recording indicator 6) Take still image 2) Settings 7) Switch between camera views 3) Playback 8) Lock / Unlock recorded files 4) Brightness adjustment 9) Date / Time 5) Stop / Start recording Long press the power button to turn the Mirror Monitor ON, short press to turn the Mirror Monitor OFF. -
Page 10: Settings (Common Settings)
Settings - Common Settings When not it recording mode, touch the screen to display icons. Select Settings icon to enter video settings. Select Common Settings icon. Select function and then select setting to make changes. Select arrow icon to exit the function. Select Home icon to exit settings. -
Page 11: Settings (Driving Settings)
Settings - Driving Settings When not it recording mode, touch the screen to display icons. Select Settings icon to enter video settings. Select Driving Settings icon. Select function and then select setting to make changes. Select arrow icon to exit the function. Select Home icon to exit settings. -
Page 12: Video Playback Mode
Video playback mode When not recording press the playback icon to select recorded video footage. Touch the icons to view recorded files on screen. Recorded files Locked recorded files Picture files Camera specific recorded files Select a recorded file for playback on screen. Touch the recording to pause and play. -
Page 13: Reversing Guide Lines
G-sensor sensitivity cont..Note: With this function turned on it may fill up the SD card with locked video files. Re-format the SD card to create space. The device does NOT guarantee video recording of all accidents as the built-in impact sensor may not be activated due to combination of user settings and the level of impact during the collision. -
Page 14: Product Specifications
Product specifications Display 9.35" High-resolution LCD touch screen Colour Black Video Resolution (Front) 1920*1080 @ 30FPS 1920*1080 @ 25FPS Resolution (Rear) (Cabin) Frequency 50HZ/60HZ MCU processor Mstar SSC8826Q Front Camera 120 Degree wide angle lens Rear Camera Surface mount butterfly camera 110 Degree wide angle lens In Cabin Camera Surface mount camera... -
Page 15: Troubleshooting Guide
Troubleshooting guide The Mirror mount will not stay attached to the Problem: existing mirror Solution: • The rubber bands used to mount the Mirror Monitor can tightened by using the different rungs for adjustment. The Mirror Monitor will not power on Problem: Solution: •... - Page 16 Troubleshooting guide Problem: The Mirror Monitor settings cannot be accessed Solution: • While the Mirror Monitor is recording the settings can not be accessed. Stop recording before pressing the settings button. The Mirror Monitor screen turns off after a few minutes Problem: when the Mirror Monitor is powered on Solution: •...
- Page 17 Setup and try again. • Format Micro SD Card in a computer. Unresolved issues Problem: Solution: • Reset the unit by going into Settings - Common settings - Reset Setup • Format Micro SD Card in a computer. • Contact Gator Technical Department...
-
Page 18: Safety Information & Warnings
Please pay attention to cleaning the lens surface, use a moist soft cloth to clean the lens before use, to avoid poor video footage. Gator is NOT responsible for the loss of any recorded video during operation. Although designed to withstand high impact of car collision, Gator does NOT guarantee recording of accidents where the impact may cause the device to be damaged. -
Page 19: Technical Assistance
Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
