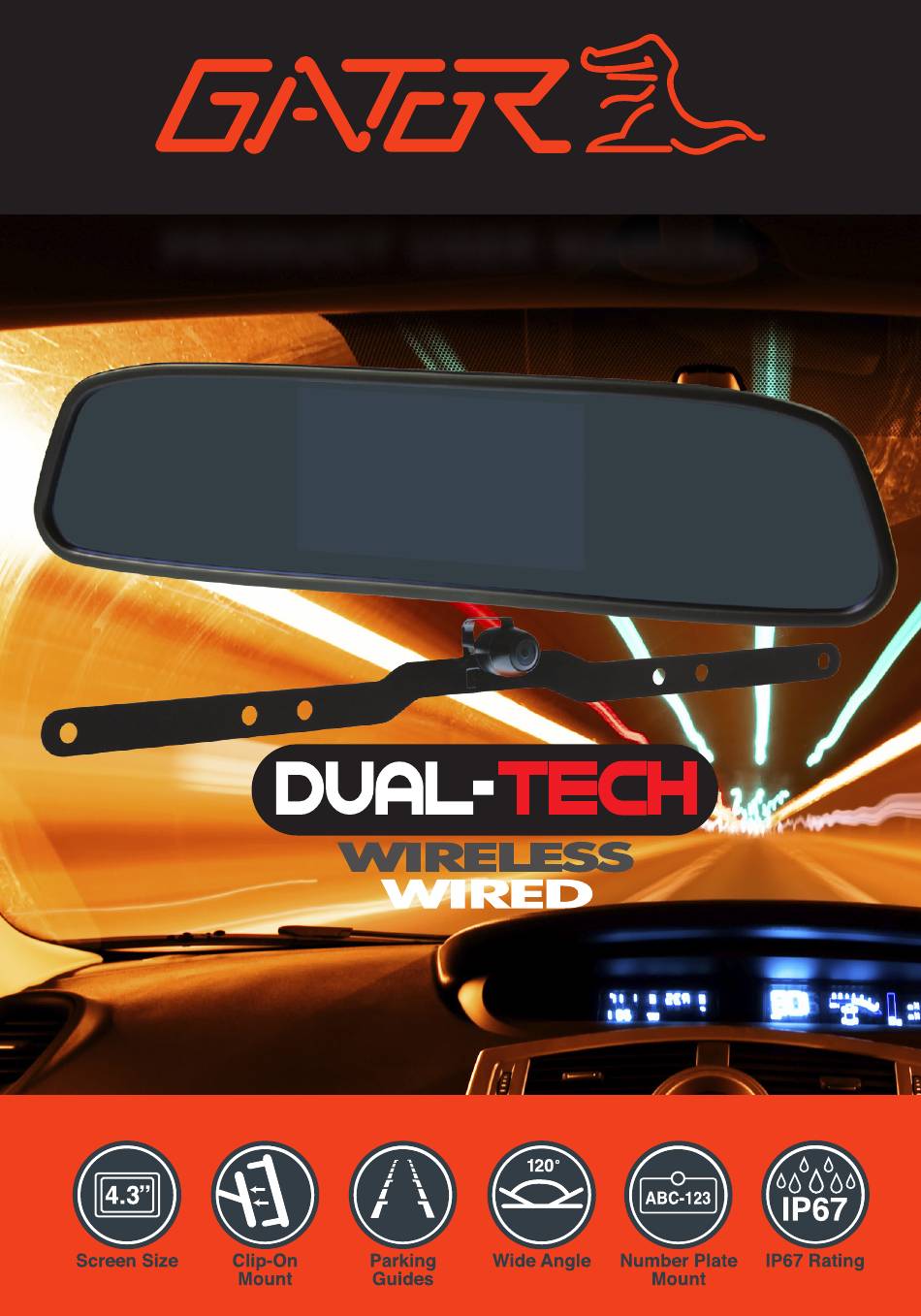

- Page 1 PRODUCT USER MANUAL Rv43MDT Rear view Mirror Reversing Camera PAGE 1 GRV43MDT INSTRUCTION MANUAL...
- Page 2 Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance. In terms of the wiring of the camera system, the Gator GRV43MDT can be installed in 2 different ways, wired or wireless. We call this versatility Dual Tech.
-
Page 3: Installation
INSTALLATION Installing the camera In most instances, the camera is best mounted above the vehicles license plate as shown here. Where this is not possible there are other camera combinations that will suit your individual application. When mounting the camera, make sure that the camera does not cover any part of the license plate. - Page 4 WIRED INSTALLATION DIAGRAM The video signal is transfered from the camera to the mirror monitor via an RCA cable that will need to be run from the boot through the passenger compartment to the monitors wired loom run under the dash.
-
Page 5: Wired Installation
WIRED INSTALLATION 1. Connect the RED wire of the Cameras Power Harness to the wire that supplies power to the reversing light globe (the wire that is energized only when the car is put into reverse). Before making the electrical connection, temporarily disconnect the camera from the power plug whilst making the connection to the reversing light globe. - Page 6 WIRELESS INSTALLATION DIAGRAM Wireless installation refers to the connection of the video signal to the monitor. In a wireless installation there is no need to run a video cable through the passenger compartment which can be difficult for some DIY installers. Instead the signal is sent wirelessly to the mirror monitor. This feature means that the time and difficulty of installing the cameras system is greatly reduced.
-
Page 7: Wireless Installation
WIRELESS INSTALLATION 1. Connect the RED wire of the wireless video transmitter to the wire that supplies power to the reversing light (this is the wire that is energized when the vehicle is put into reverse). Please measure the voltage on this wire to make sure that it is +12V when it is energized. Use a suitable splicing/crimp connector (Scotch lock type) or strip back the insulation and solder the connection making sure to insulate the connection with electrical tape or shrink tubing after the join is made. -
Page 8: Menu Functions
- Language: Select menu language - Reset: Resets all menu setting back to factory configuration TECHNICAL ASSISTANCE If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 –...
