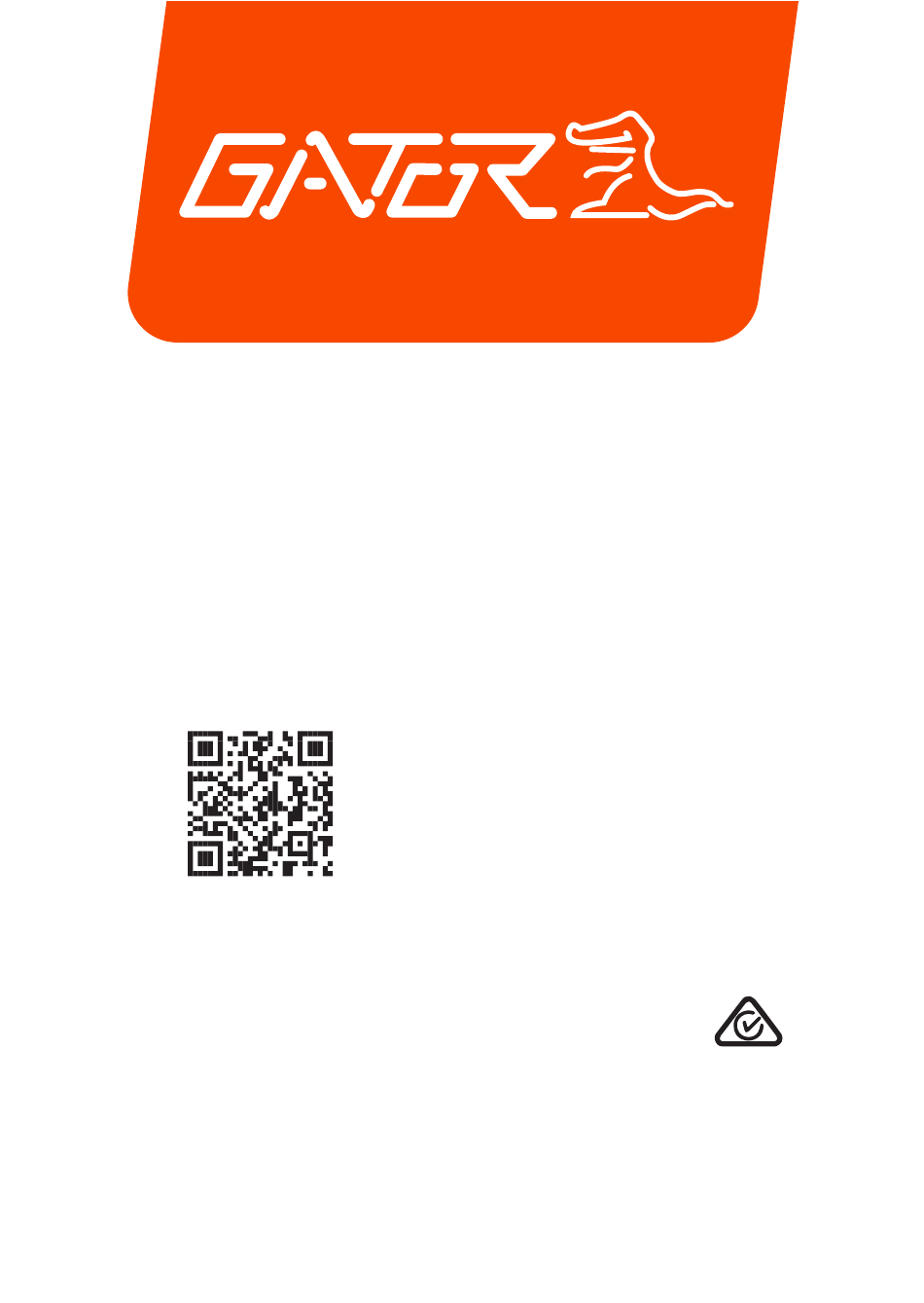

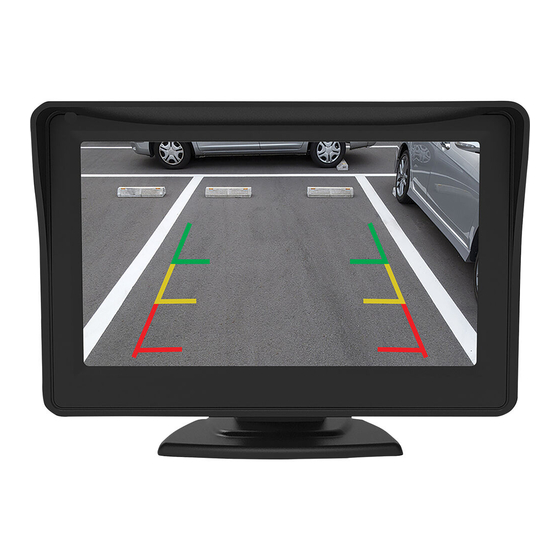

  • Page 1 GRV43SKT USER MANUAL For more information on the Gator range go to our website gatordriverassist.com Monitor, Monitor power cable, Number plate mount wireless camera, USB to DC camera charging cable, Number plate mount adaptor, Dash mount, Suction mount, Vent mount & Mounting screws...

  • Page 2: Introduction

    Introduction Thank you for purchasing the Gator GRV43SKT 4.3” wireless solar powered reverse camera kit. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance.

  • Page 3: Table Of Contents

    Table of contents Introduction..............2 Product features & specifications..........2 Table of contents..............3 Inclusions................4 Charging the Camera's built-in battery.........5 Monitor Installation...............6 Installing the camera............8 Adjusting the camera angle..........9 Operating your device............9 Menu options and settings..........10 Troubleshooting guide............13 Safety information & warnings...........14 Technical assistance............15...

  • Page 4: Inclusions

    Inclusions Monitor Suction Mount Monitor Adapter Plate Monitor Vent Mount Camera Monitor Adhesive Mount Monitor Power Cable Charging Cable...

  • Page 5: Charging The Camera's Built-In Battery

    Charging the Camera's built-in battery NOTE: * Prior to installation the camera must be fully charged. 1. Connect the supplied DC cord to the charging port of the camera by removing the end plate cover on the camera. Carefully slide up away from the camera plate. 2.

  • Page 6: Monitor Installation

    Monitor Installation 1. There are three ways you can mount the monitor, either suction, vent or the adhesive mount. With the suction mount the monitor can be mounted to the windscreen or dash and be easily removed. Attach the suction mount to the back of the monitor using the supplied screwdriver and threaded screw.
  • Page 7 Monitor Installation For the vent mount, screw the socket adapter to the back of the monitor with the supplied screwdriver and small screw. Then secure the ball end of vent mount to the socket and tighten the retaining nut. Lift the clamp up and down to secure or release the vent clip on the vent.

  • Page 8: Installing The Camera

    Installing the camera 1. Identify the number plate size you have. This will determine if you need to use the adapter plate. 2. If you need to use the adapter plate this slides inside the back of the camera base plate 3.

  • Page 9: Adjusting The Camera Angle

    Adjusting the camera angle 1. When you want to adjust the camera angle, firstly make sure the monitor is powered, by pressing the "Touch For Rearview" button to enter working status. 2. Please note when rotating the camera, hold the license base plate with one hand, hold the camera outer frame with the other hand, then move up or down to adjust the angle.

  • Page 10: Menu Options And Settings

    Menu options and settings 1. The middle button [MENU/OK]: Short Press to enter monitor menu settings. Long Press (press and hold for 3 seconds) to confirm the chosen item in the menu setting interface. 2. The Up button [ADD]: Short Press to change/add parameter value in the menu setting interface.
  • Page 11 Menu options and settings While the monitor is showing the backup camera image, short press the [MENU/OK] button to enter and exit the main menu interface and settings. 5 options are available (Including Pairing, Image Parameters, Image Mirror, Guideline Style and Software Information).
  • Page 12 Menu options and settings 3. IMAGE MIRROR: long press the [MENU/OK] button to enter settings. Press the ADD/DEC to either mirror the image or rotate it upside down. 4. GUIDELINE STYLE: long press the [MENU/OK] button to enter settings. Press the ADD/DEC to change the style of the guidelines.

  • Page 13: Troubleshooting Guide

    • Also be sure to have removed the transparent lens/screen cover during installation. Problem: The Monitor is frozen or not responding Solution: • Reset the unit by disconnecting, then reconnecting power to the monitor • Contact Gator Technical Assistance.

  • Page 14: Safety Information & Warnings

    Safety information & warnings Do not use the Monitor in damp working conditions; the Monitor is not waterproof. Do not try opening the shell or trying to repair the Monitor by yourself. If the accessories for the Monitor have any problems, please take it to an authorised repair agent for repair.

  • Page 15: Technical Assistance

    Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
