Summary of Contents for Gator GDVR110

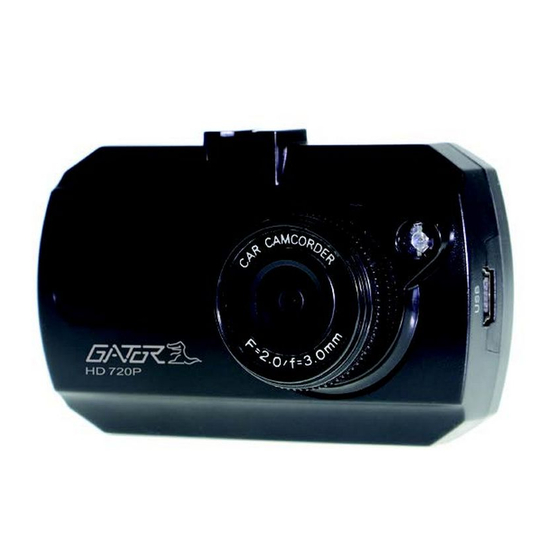

- Page 1 DVR110 HD 720P DaSH cam Manual 1.5” 720P Resolution Screen Size File G Sensor Wide Angle Suction Locking Mount...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gator GDVR110 HD 720P Dash Cam. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance. - Page 3 Table of Contents Introduction Product overview Product features Table of contents Package components Product structure Installation of Dash Cam Fixing the Dash Cam Indicator lights Instructions for video and photo operation Video/Photo playback Dash Cam functions Menu setting features explained Resetting Dash Cam Dash Cam glossary Product specifications...
-
Page 4: Package Components
Package components GDVR110 Mounting Bracket USB to Mini USB Car Charger 4G Micro SD GDVR110 User Card Guide... -
Page 5: Product Structure
Product structure 8) Mode/Lock Button 1) Up 9) Power Button 2) Menu 10)LCD 3) Down 11)Micro SD Card Slot 4) Mini USB 12)Mounting Slot 5) Lens 13)MIC 6) Speaker 14)Reset 7) OK Button 15)IR LED... -
Page 6: Installation Of Dash Cam
Installation of Dash Cam 1. Ensure windscreen is clean and free of debris. Attach suction cup to the windscreen and lock into position with the lever. 2. Fix where the vision is not blocked (Place close to rear-view mirror is recommended). Don't install device on airbag or within its working range. -
Page 7: Fixing The Dash Cam
Fixing the Dash Cam Suggested Indicator lights 1. When the blue LED is flashing, the Dash Cam is in recording mode. 2. When the blue LED is solid the Dash Cam is in standby mode. 3. When the red LED is on, the Dash Cam is being powered by the car. -
Page 8: Instructions For Video And Photo Operation
Instructions for video and photo operation Powering device on and off: To turn on the Dash Cam press the power key once, the red indication lamp will be light up if it is connected to a power source. To turn it off, hold down the power button and the device will turn off. -
Page 9: Video/Photo Playback
Video/Photo playback Press the mode button until you see the video reel icon on the top left of the screen representing playback mode. Using the arrow buttons, you can choose between all your recorded videos or photos. The protected files have a lock icon meaning they cannot be deleted until unlocked. -
Page 10: Dash Cam Functions
DASH CAM functions Menu Settings Press the Menu button to get into the menu settings. You can navigate the settings menu by using the Up/Down buttons. To change or edit a selected setting, press the OK button. Press the menu button again to get out of the menu settings. - Page 11 Date Stamp: This feature will stamp the date and time on all your footage produced by your Dash Cam. G Sensor: This feature allows you to set the sensitivity of the Gravity sensor in the Dash Cam. We recommend this be set to ‘4G’ to help stop false or irrelevant readings. Parking Mode: When enabled, the Dash Cam will automatically turn on and start recording when it detects a impact against the car when parked.
-
Page 12: Resetting Dash Cam
Resetting DASH CAM To hard reset the device in the case of a system jam or crash. Insert a fine point paper clip into reset hole on the top of the unit. DASH CAM glossary Micro SD Slot: Where the Micro SD card is inserted (Max size is 32GB Class 10). USB Interface: The USB charging adapter is used to power the Dash Cam with the Micro USB cable. - Page 13 Mute microphone: Turns microphone recording sound on or off. If you want to stop the Dash Cam recording sound in the cab of your vehicle, set this feature to ‘off’. The microphone can be muted in the video menu settings of the Dash Cam. WDR (Wide Dynamic Range): Wide Dynamic Range can allow for better quality footage in areas where both bright light and no light are present.
- Page 14 Formatting Card: It is advisable to format the card weekly if you have the setting G-sensor and park mode setting active, all footage that are locked in G-sensor and park mode will fill up the card causing it to stop recording any footage. IR Function: Press the power button once to switch between night symbol and sun you will see the 2 symbol alienate on the screen night symbol means infrared...
-
Page 15: Product Specifications
Product specifications General plus1248+GC1024 Display 1.5-inch LCD screen Color Black Video 720P 1280*720 at 30fps WVGA 848*480 at 30fps VGA 640*480 at 30fps Picture 12M/10M/8M/5M/3M/2MHD/1.3M/VGA Picture format Viewing Angle 140 degree view angle Infrared Night Vision 1pc infrared light Functions G-Sensor, Loop recording Parking monitor Support 2G,4G,8G... - Page 16 Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
-
Page 17: Trouble Shooting Guide
Troubleshooting guide Under normal operating conditions, if there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording? Due to the high amount of HD video data being recorded, please use a high-speed Micro SD card. -
Page 18: Safety Information & Warnings
Safety information & warnings Do not use the Dash Cam in damp working conditions; the Dash Cam is not waterproof Do not try opening the shell or trying to repair the Dash Cam by yourself. If the accessories for the Dash Cam have any problems, please take it to an authorised repair agent for repair.
