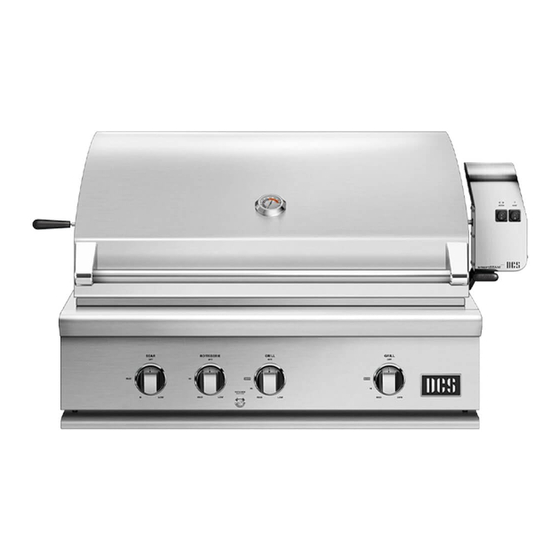

PROFESSIONAL GRILL
BH1-48RI, BH1-36RI, BH1-48RS, BH1-48R and BH1-36R models
BGA36-IJS and BGA48-IJS insulated jackets
INSTALLATION GUIDE
US CA

Advertisement

Table of Contents
loading

Summary of Contents for DCS BH1-48RI

  • Page 1 PROFESSIONAL GRILL BH1-48RI, BH1-36RI, BH1-48RS, BH1-48R and BH1-36R models BGA36-IJS and BGA48-IJS insulated jackets INSTALLATION GUIDE US CA...
  • Page 2: Safety And Warnings

    SAFETY AND WARNINGS DANGER IF YOU SMELL GAS • Shut off gas to the appliance. • Extinguish any open flame. • Open lid. • If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING! •...
  • Page 3 SAFETY AND WARNINGS To reduce the risk of fire, electrical shock, injury to persons, or damage when using the appliance, follow the important safety instructions listed below: WARNING! Hot Surface Hazard Failure to follow this advice may result in burns and scalds or serious injury. •...
  • Page 4 SAFETY AND WARNINGS WARNING! Hot Surface Hazard Failure to follow this advice may result in burns and scalds or serious injury. • Use only dry pot-holders; moist or damp pot- holders on hot surfaces may cause burns from steam. Do not use a towel or bulky cloth in place of pot-holders.
  • Page 5 SAFETY AND WARNINGS WARNING! Cut Hazard Failure to use caution could result in injury. • Take care: some edges are sharp. WARNING Excessive Weight Hazard Failure to follow this advice may result in injury or death. • Two or more people are required to move and install this unit.
  • Page 6 SAFETY AND WARNINGS WARNING! Fire Hazard Failure to follow this advice may result in death or serious injury. • Do not operate the grill under un protected combustible construction. Use only in well ventilated areas. • Cylinders shall be stored outdoors and out of the reach of children.
  • Page 7 SAFETY AND WARNINGS To reduce the risk of fire, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the guidance before using the appliance. Do not use an outdoor cooking gas appliance for purposes other than intended.
  • Page 8 SAFETY AND WARNINGS Fire Have an ABC rated fire extinguisher accessible – never attempt to extinguish a grease fire with water or other liquids. Never leave the product unattended when in use. Always remove dust cover and open hood before lighting. Do not replace cover during cooking or before appliance has cooled.
  • Page 9 SAFETY AND WARNINGS Gas Requirements Do not change the regulator/hose assembly from that supplied with the unit or attempt to use a Type 1 equipped regulator/hose assembly with a standard 510 POL cylinder/ valve assembly. The cylinder pressure relief valve outlet must point away from the user when in use. An installer-supplied gas shut-off valve must be installed in an easily accessible location.
  • Page 10 SAFETY AND WARNINGS LP Cylinder Hazards Installation must conform with local codes or with the National Fuel Gas Code ANSI Z223.1 or the CSA-B149.2 Propane Installation Code. This appliance can be used with any brand of 20 lb LP gas cylinder provided it is compatible with a proper retention device (not supplied for built-in installations).
  • Page 11 All gas piping and connectors must conform to the Standard for Connectors for Outdoor Gas Appliances and Manufactured Homes, ANSI Z21.75/CSA 6.27. Total gas consumption of the grill with all burners on HI - Input rates BTU/Hr MODEL BH1-36R BH1-48R BH1-36RI BH1-48RI BH1-48RS MAXIMUM 89000 118000 88000 117000...
  • Page 12: Components Required

    COMPONENTS REQUIRED TOOLS Not supplied Box cutter Phillips screwdriver Level PARTS Supplied Supplied and to be discarded Gas regulator parts (natural gas only) 2x pallet transit brackets Gas regulator hose (LP only) 8x pallet Phillips screws Radiant tray ceramic rods 4x transit bracket screws Radiant trays and brackets Rotisserie motor...
  • Page 13 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit dcsappliances.com/us/trade-resources/specify. Search by appliance type, product name or model code. For cavity specifications see the Planning Guide 27 3/8"...
  • Page 14: Prior To Installation

    PRIOR TO INSTALLATION 1. Measure cavity dimensions. Ensure all minimum specifications have been met and clearances have been considered. Check ventilation requirements for LP cylinder storage cabinet enclosures on page 9, and in the Planning Guide. 2. Ensure ground is level and clear.
  • Page 15: Unpack Grill

    UNPACK GRILL 1. Remove all eight Phillips screws from the pallet. 2. Lift carton to remove. Discard corner posts and any packaging. 3. Open grill and cut the straps. Set aside boxes, grill grates, and racks.
  • Page 16 UNPACK GRILL 4. Remove remaining tape before carefully setting aside the rotisserie rod. 5. Remove the two Phillips screws securing the transit brackets to the pallet. 6. Loosen the Phillips screws holding the transit bracket to the grill. Lift the transit bracket to remove, then re-tighten the screws.
  • Page 17 UNPACK GRILL Do not place the grill (LP models) on the ground or flat surface to prevent damaging the regulator assembly with the weight of the grill. 7. Remove the drip tray and set aside. 8. Product rating information can be found under and behind the right side of the tray.
  • Page 18 UNPACK INSULATION JACKET 1. Jacket installation only: Cut the straps and lift the box cap to remove. 2. Lift carton and remove jacket. 3. Dispose of packaging responsibly.
  • Page 19 INSTALL INSULATION JACKET 1. Jacket installation only: Slide the insulation jacket into the cavity.
  • Page 20: Install Grill

    INSTALL GRILL Take care when the lifting grill, some edges are sharp. Be careful not to trap fingers when placing the grill in the jacket. 1. Do not place the grill on the ground or flat surface to prevent damaging the regulator assembly with the weight of the grill.
  • Page 21: Insert The Battery

    INSERT THE BATTERY 1. A 9v battery is required for ignition and dial lighting. Plug the battery into the holder under the left front side of the grill. 2. Re-insert the drip tray.
  • Page 22 INSTALL ROTISSERIE MOTOR 1. Secure the rotisserie mount to the side of the grill using the supplied bolts. The mount and motor can be installed on the right or left of the grill. 2. Place the motor onto the mount and tighten the handles at the side.
  • Page 23 INSTALL RADIANT TRAYS 1. Place the ceramic rods into the radiant trays. 2. Lock the rods in place by pushing the side bracket into place. 3. Ensure the heat deflectors under the burners are secure before placing the radiant trays onto the pins above the burners.
  • Page 24 INSTALL GRILL GRATES 1. Hook the grill grates over the bar at the rear of the grill and rest at the front. 2. Sear burner models: At the left of the grill, place the sear burner grate on the hooks at the back and rest the legs at the front.
  • Page 25: Install Side Burner

    INSTALL SIDE BURNER 1. Place burner caps and trivet on to the side burner.
  • Page 26 INSTALL ROTISSERIE ROD 1. Slide the rotisserie forks onto the rod and tighten screws to secure. 2. Push the sharp end of the rod firmly into the motor. Rest opposite end on the rollers at the end of the grill. The rod does not rest on the rollers next to the motor.
  • Page 27: Lp Gas Cylinder Connection

    LP GAS CYLINDER CONNECTION Before connecting the grill to the LP cylinder, the main valve on the cylinder must be completely closed. Check that all grill burners and rotisserie valves are OFF and open grill hood. 1. Before connecting to the new cylinder, check the rubber O-ring.
  • Page 28 CONNECT TO NATURAL GAS Check the safety and warnings section of this guide for gas regulations, requirements and important information before connecting. 1. Fittings must be connected by an authorized technician. For ease of install, attach the regulator after the grill is in position.
  • Page 29 BULK LP INSTALLATION If connecting an LP gas grill to an LP house gas system, your installer should follow natural gas connection guidelines. The supplied fitted brass elbow and 2 stage LP regulator/hose assembly must be removed from the product. If the grill is to be connected to a reticulated LP system within a house or building, an installer supplied step down regulator is required to deliver a grill operating pressure of 11.0"...
  • Page 30: Leak Testing

    LEAK TESTING Do not smoke while leak testing and extinguish all open flames. Check with a full cylinder and make sure all dials are OFF. 1. Open the gas cylinder valve. 2. Apply a soap solution of 1:1 liquid soap and water to all connections, hoses and fittings from the cylinder to the connection at the grill.
  • Page 31: Check Burners

    CHECK BURNERS Each burner is tested and adjusted before shipping. It should not be necessary to make adjustments however local gas variations and altitude may effect burner performance. 1. Remove the grill grates and radiant trays to expose the burners. 2.
  • Page 32 BURNER AIR INTAKE ADJUSTMENT 1. Turn off gas supply and ensure the burners are cool to touch. Grip the burner and use a screwdriver to open the tab underneath. Lift the burner out and remove. 2. Using a Phillips screwdriver, loosen the burner shutter screw and turn shutter to desired position.
  • Page 33 BURNER LOW FLAME ADJUSTMENT Each burner is tested and adjusted before shipping. It should not be necessary to make adjustments, however local gas variations and altitude may effect burner performance at low setting. 1. Light the burners before turning the dial to LOW. Pull dial to remove from the grill.
  • Page 34: Installer Checklist

    INSTALLER CHECKLIST Specified clearances maintained to combustibles. Verified proper cylinder enclosure ventilation if cylinder is enclosed in cabinet. Manual shut-off valve installed and accessible for natural gas and remote LP connections. Gas regulator connected and set for 4.0” W.C Natural, 11.0” W.C LP gas. Sear burner models: ensure mesh is in place.
  • Page 35 DCSAPPLIANCES.COM © Fisher & Paykel Appliances 2024. All rights reserved. Fisher & Paykel Appliances, 695 Town Center Drive Suite 180, Costa Mesa, CA 92626, USA The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
