DCS BH1 Series Installation Manual

INSTALLATION GUIDE
OUTDOOR GRILL ACCESSORY STORAGE UNIT (BH1 MODELS)
Keep this document handy for easy reference.
For detailed information on the features of your product, see your 'User Guide'.
Before using your product, make sure you read the full 'User Guide', with special attention to the 'Safety and warnings' section.
Contact us at www.dcsappliances.com if you have any questions or comments, need an authorized technician to service your product,
need replacement parts or accessories or want to register your product.
SAFETY AND WARNINGS
WARNING!
Cut hazard
Take care - panel edges are sharp.
Failure to use caution could result in injury
or cuts.
IMPORTANT SAFETY INSTRUCTIONS!
Do not allow children or pets to play in or around your outdoor accessories. Children could be seriously injured if they climb onto or
into these products.
Children, or persons with a disability which limits their ability to use the appliance, should have a responsible person to instruct
them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their
surroundings.
The Storage Unit fits onto both sides of your outdoor grill. To avoid hazard do not attempt to fit it to any other positions.
To avoid personal injury or damage to the products, do not overload the storage unit.
After having unpacked the appliance, check to ensure that it is not damaged.
Packing elements (e.g. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of
children, as these may cause serious injuries.
Follow the installation instructions. The manufacturer is not responsible for any damage or defects arising from improper
installation.
Some products are supplied with protective film on steel and aluminium parts. This must be removed before using the appliance.
Do not modify this appliance.
BUILT-IN CONSTRUCTION DETAILS
A
D D
PRODUCT DIMENSIONS
A
Width of enclosure cavity (standard install)
B
Width of enclosure cavity (storage unit install)
C
Max. air gap between storage unit and enclosure wall
D
Max. air gap between grill and enclosure wall
For more built-in construction details see the 'Installation' section of your User Guide.
US CA
B
C D
BH1-48R BH1-36R
Inches (mm) Inches (mm)
45 3/4" (1162) 34 1/2" (876)
52 1/8" (1324) 40 1/2" (1028)
1/8" (3) 1/8" (3)
5/8" (16) 5/8" (16)

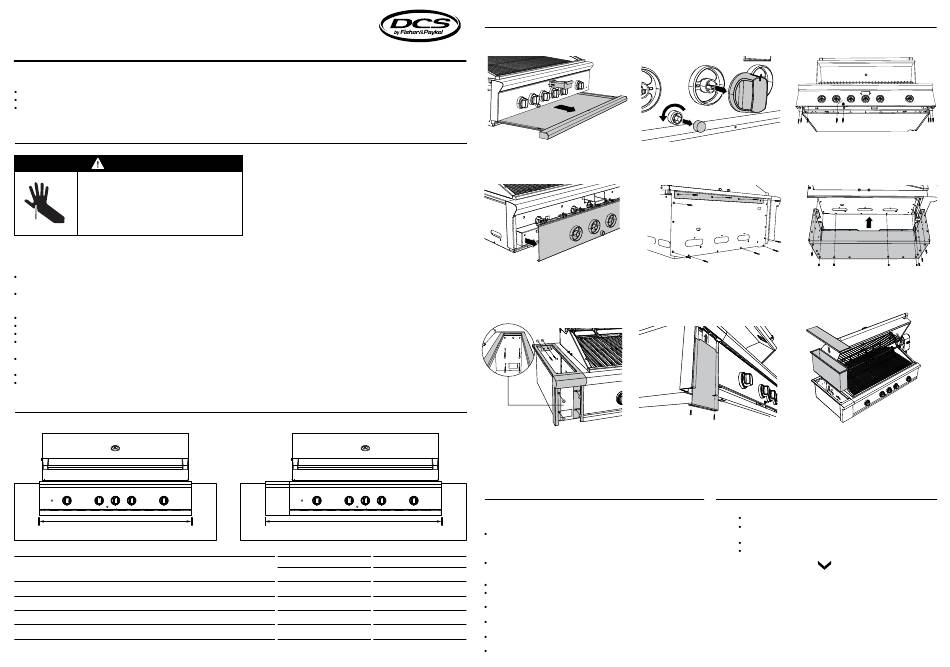

INSTALLATION INSTRUCTIONS
IMPORTANT!
Do not overtighten the screws.
1 Remove the chip tray and the grease 2 Remove all of the knobs. Where
tray from the grill. fitted, remove the safety valve cap
by unscrewing its retaining screw and
unscrew the bezel.
4 Remove the front panel from the 5 Remove these screws, as indicated,
product. from the side panel. Store screws
carefully for later use. The grill support
NOTE: Take care when removing the angle can be discarded.
front panel.
7 Place the unit cover over the shell and 8 Slot the concealer panel into the front
align flush to the grill. Secure using four of the unit and secure using two screws
screws and nuts on the front tabs and at the base of panel. Ensure unit cover
two screws and nuts on the back tab. remains flush.
CARE AND CLEANING
IMPORTANT!
Do not use abrasive cleaners, steel soap pads or sharp objects
on stainless steel.
Note: Stainless steel tends to corrode in presence of chlorides and
sulfides especially in coastal areas. To ensure corrosion prevention,
wash all stainless steel surfaces every 3-4 weeks with fresh water
and stainless cleaner.
These stainless steel products are made of mold resistant
materials. However, to avoid staining or growth of mold, always
empty, clean and dry your product(s) when not in use.
Always use the mildest cleaning procedure first.
Wipe soiling off with a cloth using a mild household detergent
and wipe dry with a clean cloth.
Regularly clean the drawers using hot soapy water. Rinse and dry
with a clean soft cloth to avoid water marks.
To maintain the exterior appearance, apply a stainless steel polish
to the outside surfaces on a regular basis.
Always read the label of your stainless steel cleaner to ensure it
does not contain chlorine compounds.
Always rub the stainless steel in the direction of the grain.
3 Underneath the front panel, locate and
remove the retaining screws. Where
fitted, remove the screw from the face
of the front panel.
6 Fit the shell of the storage unit to the
side of the grill. Secure to side panel
using the eight screws from Step 5.
Ensure the shell is fixed as close to the
front as possible.
9 Insert the lining of the storage unit into
the shell. Lid is able to be placed on
unit as desired.
Reassemble the grill by starting at
Step 4 and follow the instructions in
the reverse order.
FOR MORE INFORMATION
If you...
have any questions or comments
need a DCS by Fisher & Paykel authorized
technician to service your product
need replacement parts or accessories
want to register your product
contact us
USA toll-free, 24/7 1 888 936 7872
CA toll-free, 24/7 1 888 936 7872
www.dcsappliances.com
www.dcsappliances.ca
