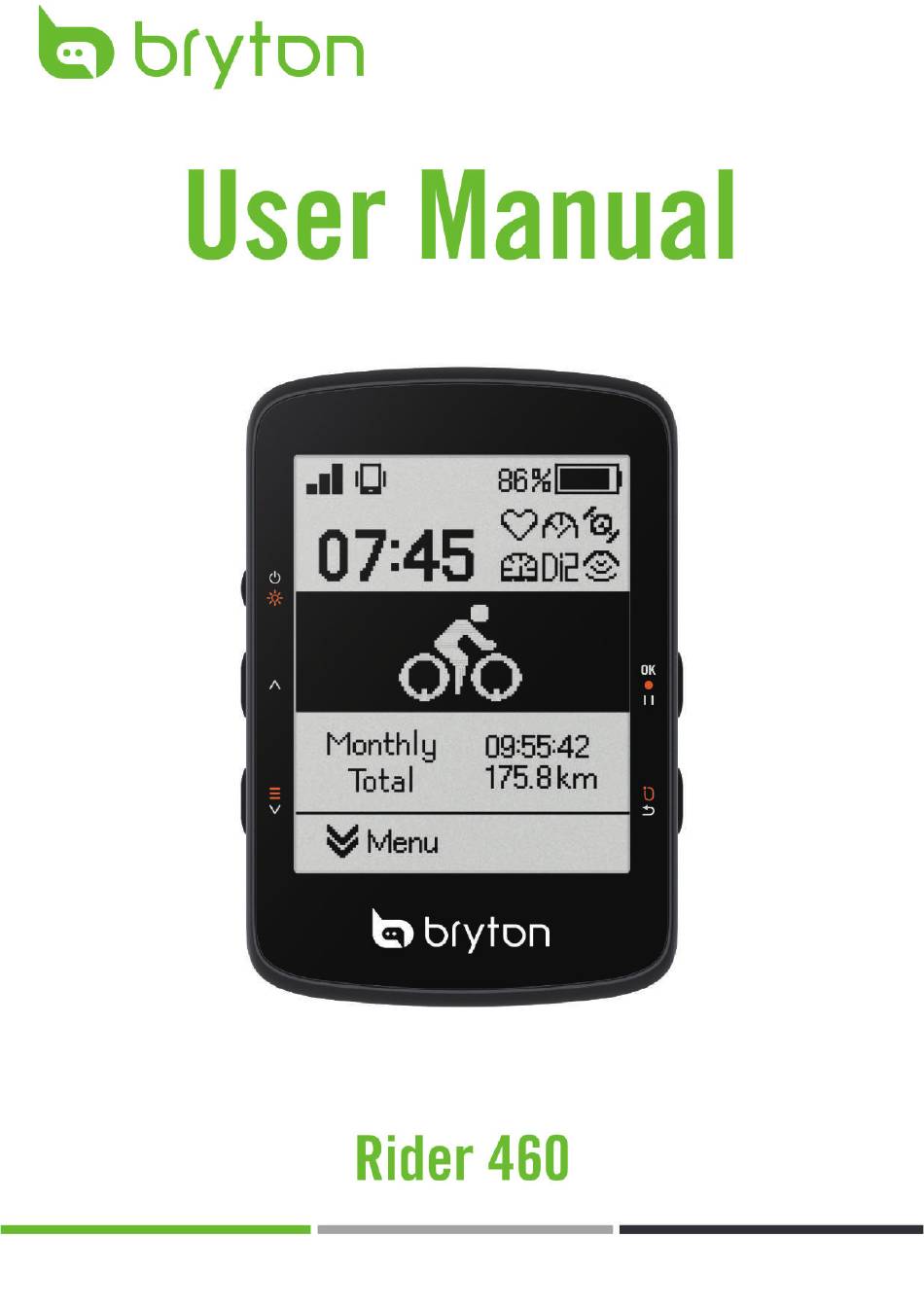

Bryton Rider 460 User Manual
  1. Manuals
  2. Brands
  3. Bryton Manuals
  4. Bicycle Accessories
  5. Rider 460
  6. User manual

Bryton Rider 460 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rider 460 and is the answer not in the manual?

Questions and answers

Related Manuals for Bryton Rider 460

Summary of Contents for Bryton Rider 460

  • Page 2 Video Tutorial For a step-by-step demonstration of device and Bryton Active app, please scan the QR code below to check out Bryton Tutorial Videos. http://www.youtube.com/c/BrytonActive...

  • Page 3: Getting Started

    Getting Started This section will guide you through basic preparations before the first use with your Rider 460. Initial Setup 1.Download Bryton Active app on your phone. 2.Turn on your Rider 460. 3.After logging into the app, add the Rider 4.Set up your profile, preference settings,...
  • Page 4 Rider 460 Key Functions A. Power/Backlight( Press to turn the device on. Press to turn on/off the backlight while the device is on. Long Press to turn the device off. B. Up ( ) : Press to scroll up the data screens and the options in Menu.

  • Page 5: Quick Menu

    Reboot Rider Press ( ) at the same time to reboot the device. Accessories The Rider 460 E SKU includes the following accessories: USB Cable Bike Mount Safety Landyard Optional Item :(Include in D Sku) Smart Heart Rate Monitor Smart Cadence Sensor...

  • Page 6: Status Icons

    Step 1: Charge your Rider 460 Charge the Rider 460 battery for at least 4 hours. Unplug the device when it is fully charged. You may see a white screen when the battery is really low. Keep the device plugged in until properly charged.The temperature suitable for charging battery is 0°C ~ 40°C.

  • Page 7: Step 4: Acquire Satellite Signals

    Step 3: Initial Setup When powering on the Rider 460 for the first time, follow the instructions to complete setup. 1. Select the display language. 2. Choose the units of measurement. 3. Download Bryton Active app and pair the Rider 460 with your smartphone.

  • Page 8: Step 6: Share Your Records

    1.Sign up on Brytonactive.com a. Go to https://active.brytonsport.com. b. Use your Bryton Actgive account to log in or Sign up for a new account 2.Connect to PC Turn on your Rider 460 and connect it to a computer by USB cable.
  • Page 9 Bryton Active match, press Cancel and try again. App. NOTE: Bryton Active App syncs with Brytonactive.com. If you already have a brytonactive.com account, please use the same account to log in to Bryton Active App and vice versa.

  • Page 10: Firmware Update

    GPS data every 1-2 weeks. Update Firmware Bryton releases a new firmware version on an irregular basis to add new functions or fix bugs. We highly recommend that you update the firmware once the latest version is available. It usually takes a while to download and install the firmware.
  • Page 11 Or select Firmware Update to start updating. c. Choose to update the firmware with the Bryton cable or Bluetooth. You will need a USB-C to USB Adapter with Bryton original cable. Make sure the smartphone is connected to the device. Select the “BRYTON”...
  • Page 12 Update to start the update. Or select Firmware Update to start updating. c. Choose to update the firmware with Bryton cable or with Bluetooth. If you are using the cable, please give the app permission to access phone storage.

  • Page 13: Follow Track

    Follow Track Create Track Rider 460 provides 3 ways to create tracks: 1. Plan trip via Bryton Active App. 2. Import routes from 3rd party platforms. 3. Auto sync routes from Strava, Komoot and RideWithGPS. Plan Trips via Bryton Active App 1.
  • Page 14 Peak in Route mode, allowing you to make the right decision based on your status and stay motivated along the way. 1. Go to Course > My Routes in Bryton Active App. 2. Select the route you would like to add POIs.

  • Page 15: Route Guidance

    Climb Challenge When you approach a climb, the Rider 460 will change to the Climb Section page, providing an overview of a route’s climb segments. The Climb Challenge screen shows different patterns altitude map based on the gradient, distance remaining, and ascent remaining, giving you the climb information at-a-glance.
  • Page 16 Workout Create a Workout Rider 460 provides 2 ways to create workout: 1. Plan workout via Bryton Active App. 2. Sync workout from TrainingPeaks. Plan workout via Bryton Active App 1. In Bryton Active App, select Course > Workout Plan > My Workout > “+” > Plan Workout to plan a training workout by selecting interval types and enter details.
  • Page 17 Train with a Workout plan 1. Select Menu > Course > Workout. 2. You can see the workout plans, which are downloaded from the app. Start Workout 1. Press to select the workout you would like to start with. 2. Press the to start the workout End Workout 1.

  • Page 18: Group Ride

    Group Ride Join Group Ride The Group Ride needs to work with the Bryton Active app. Please make sure you pair the Rider 460 with the Bryton Active app on your smartphone Create Group Ride 1. Select Course on Bryton Active app.

  • Page 19: Live Track

    Share your real-time location with friends and family using the Live Track feature.Before using, please ensure that Rider 460 is already recording a ride by pressing the record button and then opening the Bryton Active app on our smartphone. This feature will not work if the device is not recording.
  • Page 20 2. You can switch to different control mode in the quick menu. 3. Resistance (Slope/Power) training will automatically stop when the Smart Trainer lost connection. Note: You need to connect a smart trainer to the Rider 460 before having access to the Smart Workout, Resistance, and Power Workout.
  • Page 21 Smart Workout Training plans can be built with the Bryton Active App and downloaded directly to the Rider 460. With ANT+ FE-C support, the Rider 460 will communicate with your smart trainer to control the resistance according to the training plan.
  • Page 22 Navigation on Bryton Active App 1. Pair the Rider 460 with Bryton Active App, select Course > Navigation. 2. Input keywords or address or POI in the search bar then click 3. Select a result from the search list. 4. Confirm the location then click Plan Route to see the route.
  • Page 23 Result You can view recorded activities on the Rider 460 or delete records to save more storage capacity of the device. View Records 1. Select ”Monthly Total” on the home page. 2. Pick a record to view details. Delete Record 1.
  • Page 24 Press to return to the home page Note:Connect the Rider 460 to your phone via Bluetooth.You can use Bryton Active APP to modify Grids numbers and Data Pages. Display You can change the display settings such as Brightness, Backlight, and Contrast.
  • Page 25 Pair Sensors Pair your sensors with the device beforehand. Rider 460 will scan nearby active paired sensors, making switching between bikes and sensors easier and more convenient. 1. Long press to enter the menu. 2. Select Menu > Settings > Sensors Add New Sensors 1.
  • Page 26 Using Electronic Shifting Systems After pairing electronic shifters, such as Shimano Di2 or SRAM, you can enter the sensor pages for further settings. To customize the data grids on meter pages, please go to page 24 for more instruction. 1. Select Menu > Settings > Sensor >Add Sensor. 2.
  • Page 27 2. Choose any type of sensor that you would like to pair with. 3. To pair sensors with your device, please have Bryton Smart Sensors installed first, then wear a heart rate monitor or rotate the crank and wheel a few times to wake Bryton Smart Sensors up.
  • Page 28 Note: 1. If there is no vehicle around you, the strip will not show on the screen. 2. Please go to Page 38 to see how to pair a bike radar with Rider 460. Using E-bike The Rider 460 incorporates Shimano Steps and ANT+ LEV e-bike support for compatible brands to display various e-bike data, including assist mode, assist level shifting mode, E-Bike battery, travel range and rear gear position.
  • Page 29 2. Select Menu > Settings > System Language 1. Select your desired language. (or you can set it up on Bryton Active APP) Time / Unit 1. Select Daylight Saving, Date Format, Time Format, Unit, and Temperature to change the...
  • Page 30 Altitude With connection to the Internet, Bryton Active APP provides altitude information for you to calibrate directly. You can also change altitude manually. Calibrate Altitude 1. Long press down to enter the menu. 2. Select Menu > Settings > Altitude 3.Select Calibrate...

  • Page 31: General Setting

    Bryton App Settings After pairing your Rider 460 with Bryton Active App, you can set up more Settings and recevie notifications. General Setting Keytone 1. Enable or disable Key Tone to change the settings for key presses. Sound 1. Turn on or off Sound to change the settings for alerts and notifications.

  • Page 32: Bike Settings

    Profile You only can edit the Profile via Bryton Active App. Just edit your profile info in the profile tab in Bryton Active. Once the device is connected to the app, your profile info will be updated to your Rider 460.

  • Page 33: Specification

    Appendix Specification Rider 460 Item Description Display 2.6” Mono LCD Physical Size 53.8x79.8x12.6 Weight Operating Temperature -10°C ~ 50°C Battery Charging 0°C ~ 40°C Temperature Battery Li-polymer rechargeable battery Battery Life Up to 32 hours with open sky ANT+™ Featuring certified wireless ANT+™ connectivity. Visit www.thisisant.com/directory...

  • Page 34: Battery Information

    Smart Cadence Sensor (Optional) Item Description Physical Size 36.9 x 31.6 x 8.1 mm Weight Water Resistance Incidental exposure to water of up to 1 meter for up to 30 minutes Transimission Range Battery Life Up to 1 year Operating Temperature -10°C ~ 60°C Radio Frequency/protocol 2.4GHz / Bluetooth 4.0 and Dynastream ANT+ Sport wireless communications protocol...
  • Page 35 To replace the battery: 1. Locate the circular battery cover on the back of sensors. 2. Use your finger to press and twist cover counter-clockwise so the indicator on the cover points to unlock icon ( 3. Remove the battery and insert new battery with positive connector first into the battery chamber.
  • Page 36 Install Rider 460 Use Sport Mount to Mount Rider 460 Use F-Mount to Mount Rider 460...
  • Page 37 Install the Cadence Sensor (Optional) NOTE: x Once sensors are waken, the LED blinks twice. The LED continues to blink when you continue to pedal for pairing. After around 15 times blink, it stops blinking. If not used for 10 minutes, sensor would go into sleep mode to preserve power.

  • Page 38: Install Heart Rate Belt (Optional)

    Adjust the sensor position to the middle part of the body (wear it slightly below the chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic belt firmly so that it will turn loose during the exercise.

  • Page 39: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 12x1,75 26x3,00 2170 12x1,95 26x1-1/8 1970 14x1,50 1020 26x1-3/8 2068 14x1,75 1055 26x1-1/2 2100 16x1,50 1185 650C Tubular 26 1920 x7/8 16x1,75...

  • Page 40: Data Field

    Data Field Category Data Field Description of Data Fields The height of your current location above or below sea Altitude level. The highest height of your current location above or below Max Altitude level which the rider achieved for the current activity. The total altitude distance gained during this current activ- Alt.
  • Page 41 Category Data Field Description of Data Fields Time Current GPS Time. Ride Time The time spent on riding for current activity. Trip Time Total time spent for current activity. Sunrise The time of sunrise based on your GPS location. Time Sunset The time of sunset based on your GPS location.
  • Page 42 Category Data Field Description of Data Fields Power Now Current Power in Watt. Avg Power The average power for the current activity. Max Power The maximum power for the current activity. LapAvgPw The average power for the current lap. LapMaxPw The maximum power for the current lap.
  • Page 43 Category Data Field Description of Data Fields CurPB-LR The current left/right power balance. The average left/right power balance for the current AvgPB-LR activity. The current left/right percentage of how efficiently a rider CurTE-LR is pedaling. The maximum left/right percentage of how efficiently a MaxTE-LR rider is pedaling.
  • Page 44 Category Data Field Description of Data Fields SPD Ring The current speed rate displays in dynamic coloured graph- ical mode. SPD Bar CAD Ring The current cadence rate displays in dynamic coloured graphical mode. CAD Bar HR Ring The current heart rate displays in dynamic coloured graph- ical mode.
  • Page 45 20 cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.brytonsport.com/download/Docs/CeDocs_Rider460.pdf...
