35
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Bryton Rider 35

Summary of Contents for Bryton Rider 35

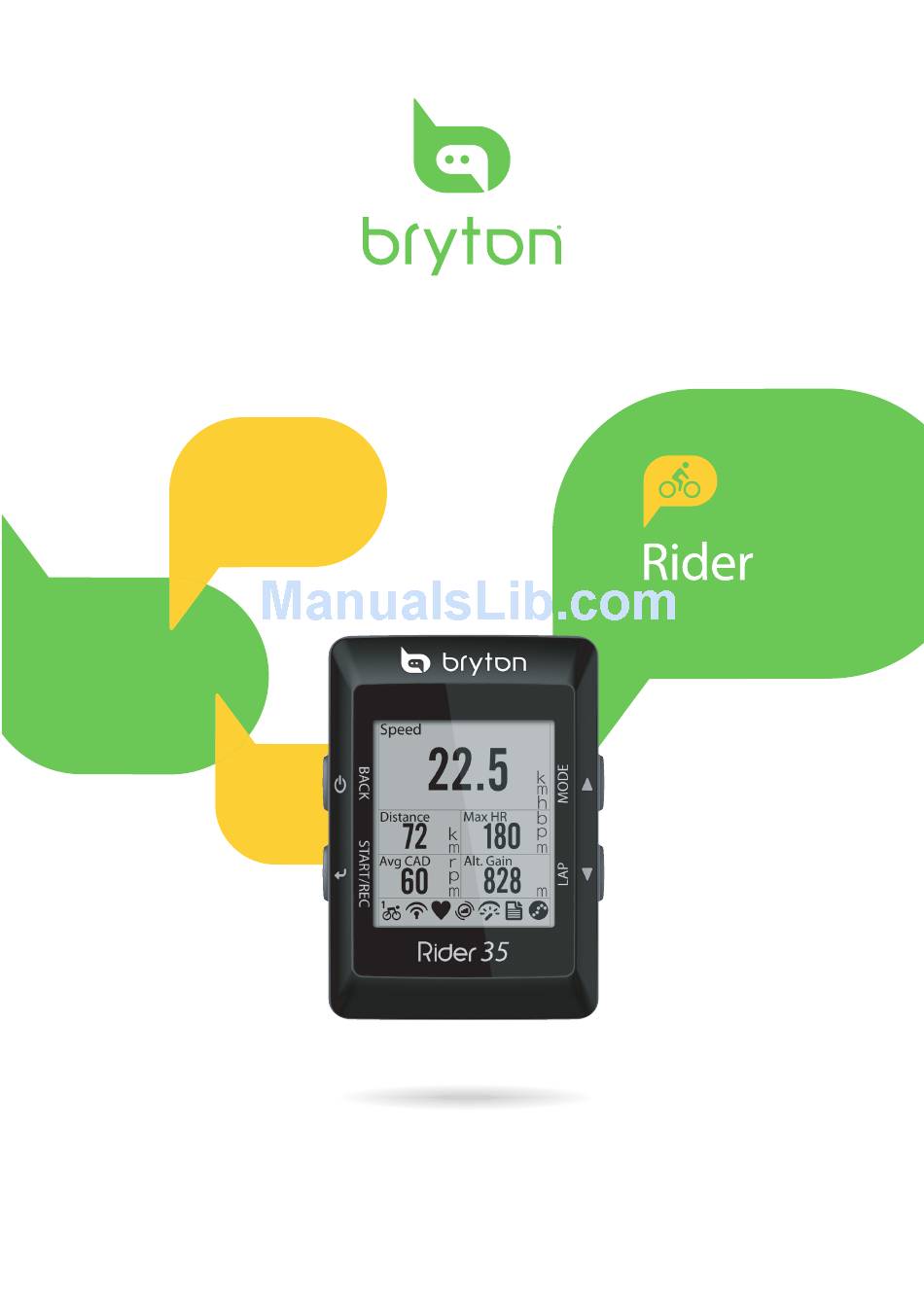

  • Page 1 User's Manual...

  • Page 3: Table Of Contents

    Charge the Battery ...... 7 Trip ..........18 Install the Rider 35 ...... 7 My POI ........19 Mount the Rider 35 to the Bike....7 Stop Navigating ......19 Install the Speed/Cadence Data Recording ......19 Sensor (Optional) ......8 Save POI ........
  • Page 4 View GPS Status ......31 View Firmware Version ..... 31 Appendix ......32 Specifications ......32 Battery Information ....33 Wheel Size and Circumference ......34 Heart Rate Zones ....... 35 Basic Care For Your Rider 35 ..35 Table of Contents 3...
  • Page 5 Always consult your physician before you begin or modify any training program. Please read the details in Warranty and Safety Information guide in the package. Product Registration Help us better support you by completing your device registration using Bryton Bridge. Go to http://support.brytonsport.com for more information. Bryton Software tracks and analyze your data on the web.

  • Page 6: Getting Started

    Getting Started This section will guide you on the basic preparations before you start using your Rider 35. Your Rider 35 Power Mode / Up • Press and hold to turn the Rider 35 on • Press to switch modes: Meter, Find &...

  • Page 7: Reset The Rider 35

    Reset the Rider 35 To reset the Rider 35, press and release both at the same time. Accessories The Rider 35 comes with the following accessories: • USB cable • Bike mount Optional items: • Speed/Cadence sensor • Heart rate belt •...

  • Page 8: Charge The Battery

    This product contains a lithium-ion battery. See the Warranty and Safety Information guide in the package for important battery safety information. To charge the battery, connect your Rider 35 to your computer using the USB cable. Install the Rider 35...

  • Page 9: Install The Speed/Cadence Sensor (Optional)

    Install the Speed/Cadence Sensor (Optional) Speed Status: inactive Rescan Turn on Speed Status: inactive Rescan Turn on Cadence Status: inactive Rescan Turn on Cadence Status: inactive Rescan Turn on NOTE: To ensure optimum performance, the distance between the sensor and the magnet must be within 3 mm.

  • Page 10: Install Heart Rate Belt (Optional)

    Install Heart Rate Belt (Optional) Clips Strap Clip Battery Electrodes compartment NOTE: • In cold weather, wear appropriate clothing to keep the heart rate belt warm. • The belt should be worn directly on your body. Getting Started 9...

  • Page 11: Using The Power Adapter (Optional)

    Using the Power Adapter (Optional) You can use the power adapter to charge the battery. You can puchase different plug head(s) suitable in the country where you purchased the Rider 35. To use the plug: Getting Started...

  • Page 12: Turn On The Rider 35

    Rider 35 on. Power button Acquire Satellite Signals Once the Rider 35 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals. Initial Setup When turning the Rider 35 on for the first time, the setup wizard appears on screen. Follow the instructions to complete setup.

  • Page 13: Manage Rider 35 Data Via Your Computer

    3. Follow the on-screen instructions to transfer data to your computer. NOTE: • After unplugging the Rider 35 from the USB, the Rider 35 will reset itself. • Do not unplug the USB cable during the file transferring process. Otherwise, the files may be damaged or corrupted.

  • Page 14: Training

    Bicycling is one of the best types of exercise for your body. It helps you to burn your calories, lose weight, and increase your overall fitness. With the Rider 35 Training feature, you can set simple/zone based workouts and use the Rider 35 to track your training or workout progress.

  • Page 15: Distance

    Distance 1. In the Training menu, press p/q to select Simple To Plan > Simple > By Distance. 2. Press p/q to set your distance and press By Time to confirm. By Distance 3. A “Save to My Workout?” message appears on the screen.

  • Page 16: Basic Workouts

    Basic Workouts You can create a workouts based on the time and heart rate zone. 1. In the Training menu, press p/q to select Basic To Plan > Basic. Time 2. Press p/q to set your time and press to confirm. 1:0 ' 0"...

  • Page 17: Customize Workouts

    Customize Workouts You can create a customize interval workouts with your Rider 35. 1. In the Training menu, press p/q to select Customize To Plan > Customize. 2. Set the customize workout settings. Warm up 3. On the Repeat time option, press p/q 0:15 ' 0"...

  • Page 18: My Workout

    6. When finished, press p/q to select Continue and press to start the workout. 7. A “Save to My Workout?” message appears on the screen. To save the data, press p/q to select Yes and press to confirm. 8. Enter the workout name using the on-screen keyboard. 9.

  • Page 19: Find & Go

    Navigate Rides from Planned Trip You can navigate a ride uploaded to your Rider 35 from the Bryton Bridge application. 1. Prepare and download your trip via brytonsport.com and Bryton Bridge application. 2. Connect your Rider 35 with the computer using the USB cable.

  • Page 20: My Poi

    2. To stop the current training, press p/q to stop? to select Yes and press to confirm. Data Recording The Rider 35 can record points every second of your ride. • In training mode, press to start training and recording log. Press again to stop training and recording log.

  • Page 21: Save Poi

    121000000 keyboard. Save View History The Rider 35 automatically saves the history as the timer starts. After you have finished a ride, you can view the history data on the Rider 35. To view your history: History 1. In the main screen, press p/q to select View History.

  • Page 22: Stopwatch

    With the Stopwatch feature, you can measure the amount of time elapsed from the time the Rider 35 is activated and deactivated. You can switch between two modes: Countdown and Timer. Countdown is used to notify you when a set amount of time has passed. Timer is used to measure how long something takes.

  • Page 23: Timer

    Timer 1. In the Stopwatch menu, press p/q to Timer select Timer. 2. To start the timer running, press confirm. 00 : 00' 00" 3. To record a lap while the watch is running, press p/q to select Record and press to confirm.

  • Page 24: Settings

    Settings With the Settings feature, you can customize altitude settings, display settings, sensor settings, system settings, bike and user profiles, GPS setup, and view device information. 1. In the main screen, press p/q to select Settings Settings. Altitude 2. Press to enter the Settings menu.

  • Page 25: Other Location Altitude

    Other Location Altitude 1. In the Settings menu, press p/q to Location 1 select Altitude > Location 1, Location 2, Location 3, Location 4, or Location 5. Altitude 2. Press to confirm. 3. To set the altitude, use p/q to select Calibrate Altitude and press to confirm.

  • Page 26: Find & Go / My Buddy / Altitude Display

    NOTE: There are five types of Power meter information that can be displayed on the screen: Power Now (current power), 3s Power (3 seconds average power), 30s Power (30 seconds average power), Max Power (maximum power), and Avg Power (average power). Find &...

  • Page 27: Sensors

    Sensors You can customize the respective sensor settings such as enable/disable the function or rescan the sensor for the Rider 35. Heart Rate Speed Cadence Status: active Status: inactive Status: inactive ID 0 ID 0 ID 0 Rescan Rescan Rescan...

  • Page 28: Personalize User Profile

    NOTE: • When the heart rate monitor is paired, the heart rate icon appears on the main screen. • While pairing your speed/cadence sensor and heart rate belt, please make sure there is no other cadence/speed sensor within 5 m. When the cadence sensor is paired, the cadence sensor icon appears on the main screen.

  • Page 29: View Bike Profile

    5. Press to exit this menu. Change System Settings You can customize the Rider 35 system settings such as backlight off, alert, time/unit data format, on-screen display language, and data reset. Backlight Off 1. In the Settings menu, press p/q to Backlight Off select System >...

  • Page 30: Alert

    Alert 1. In the Settings menu, press p/q to Alert select System > Alert. 2. Press to confirm. 3. Press p/q to select the desired setting and press to confirm. 4. Press to exit this menu. Time/Unit Time Zone Daylight Save Date format GMT+7:00 +0:00...

  • Page 31: Language

    4. Press to exit this menu. NOTE: • If you want to add or remove the OSD language on your Rider 35, change the setting via Bryton Bridge > Rider 35 > Language. • Erase data will delete all the history data and record logs, except the user setting.

  • Page 32: View Gps Status

    View GPS Status You can view the information about the GPS signal the Rider 35 is currently receiving. 1. In the Settings menu, press p/q to GPS Status select GPS Status. 2. Press to confirm. 121 . 000000 25 . 000000 3.

  • Page 33: Appendix

    Appendix Specifications Rider 35 Item Description Display 1.9” Mono LCD panel Resolution 128 x 160 Physical size 68.9 x 48 x 21 mm Weight 55.5 g Operating C ~ 50 temperature Battery Charge C ~ 40 temperature Battery 1200mAh rechargeable Li Battery Battery life Max.

  • Page 34: Battery Information

    Heart Rate Monitor Item Description Physical size 34.7 x 3.4 x 1.1 cm Weight 44 g Water Resistance 10 m Transmission range Battery life 1 hour per day for 16 months (480 hours) Operating temperature C ~ 40 2.4GHz / Dynastream ANT+ Sport wireless Radio frequency/protocol communications protocol Accuracy may be degraded by poor sensor contact, electrical interference, and receiver...

  • Page 35: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 24 x 1.75 1890 12 x 1.75 24 x 2.00 1925 14 x 1.5 1020 24 x 2.125 1965 14 x 1.75 1055...

  • Page 36: Heart Rate Zones

    Basic Care For Your Rider 35 Taking good care of your Rider 35 will reduce the risk of damage to your Rider 35. • Do not drop your Rider 35 or subject it to severe shock.
