Bryton Rider 15 User Manual

Hide thumbs Also See for Rider 15:
Table of Contents

Advertisement

Quick Links

User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rider 15 and is the answer not in the manual?

Questions and answers

tourbot
April 25, 2025

JE NE SAIS PAS TROUVER LA FREQUANSE CARDIO SUR MON RIDER 15

0

Related Manuals for Bryton Rider 15

Summary of Contents for Bryton Rider 15

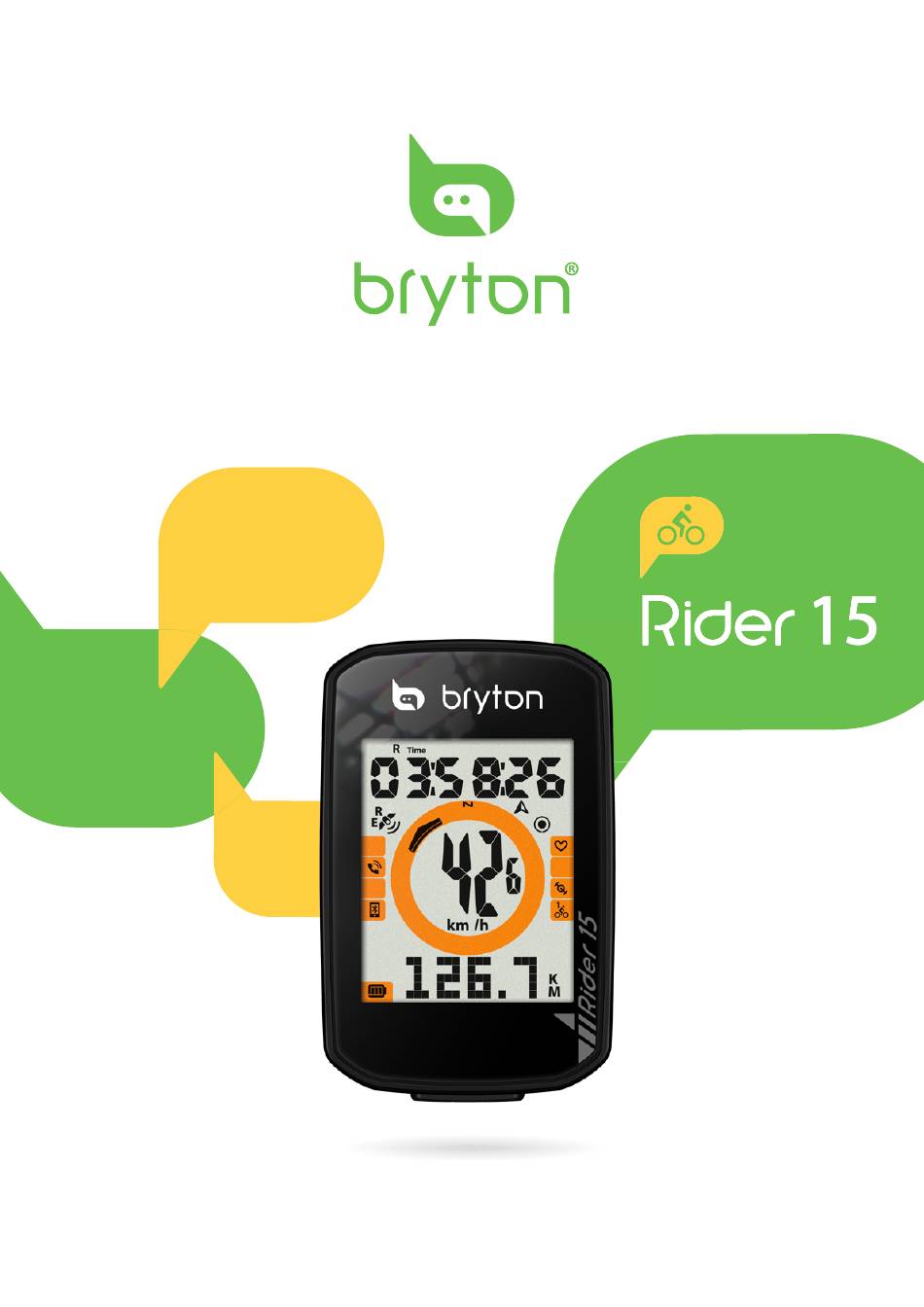

  • Page 1 User's Manual...

  • Page 2: Table Of Contents

    Accessories ........5 Notification ........20 Status Icons ........5 Appendix ......21 Step 1: Charge your Rider 15 ..6 Step 2: Turn On Rider 15 ....6 Specifications ......21 Step 3: Initial Setup ....... 6 Battery Information ..... 22 Step 4: Acquire Satellite Install Rider 15 ......
  • Page 3 Video Tutorial For a step-by-step demonstration of device and Bryton Mobile App, please scan below QR code to check Bryton Video Tutorials. https://www.youtube.com/c/DevelopmentBryton...

  • Page 4: Getting Started

    Getting Started This section will guide you on the basic preparations before you start using your Rider 15. Rider 15 Key Functions Backlight/Page ( Power/OK ( x Long press to turn on/off backlight. x Press to turn the device on.

  • Page 5: Accessories

    Accessories The Rider 15 comes with the following accessories: • USB Cable •Bike Mount Optional items: • Smart Heart Rate Monitor • Smart Speed Sensor • Smart Cadence Sensor • Sport Mount Status Icons Icon Description Icon Description Icon Description...

  • Page 6: Step 1: Charge Your Rider 15

    Step 1: Charge your Rider 15 Connect Rider 15 to a PC to charge the battery for at least 4 hours. Unplug the device when it is fully charged. x You may see battery icon is blinking when the battery is really low. Keep the device plugged until it is properly charged.

  • Page 7: Step 4: Acquire Satellite Signals

    Step 4: Acquire Satellite Signals Once the Rider 15 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals for the first time use. The GPS signal Icon ( ) appears when GPS is fixed .

  • Page 8: Sync To Bryton Mobile App

    Sync Data to Bryton Mobile App Launch Bryton Mobile App 1. Download Bryton Mobile App Scan below QR Code to download Bryton App or you can go to Google Play for android/ App Store for iOS to search Bryton App and download it. http://download.brytonsport.com/inst.html 2.
  • Page 9 Pair Your Device with Bryton Mobile App With the connection to Bluetooth, your Rider computer easily uploads recorded tracks. To sync data correctly from your device, it is required to pair your device with Bryton mobile app before syncing data for the first time.

  • Page 10: Download Bryton Update Tool

    Download Bryton Update Tool Bryton Update Tool is the tool for you to update GPS data, firmware, download Bryton Test and maps for multiple regions. 1. Go to http://www.brytonsport.com/#/supportResult?tag=BrytonTool and download Bryton Update Tool. 2. Follow the on-screen instructions to install Bryton Update Tool.

  • Page 11: Settings

    Settings Under Settings, you can customize Bike Profile, Tire Size, Altitude, Sync (Sensor Pairing), Device Storage, GPS, Unit of Measurement, Unit of Temperature, Hour, Daylight Saving, Heading and Odometer. Bike Profile You can select which bike profile you would like to activate and calibrate. 1.

  • Page 12: Calibrate Altitude

    4. After completing the setting, press to confirm and press to exit menu. Sensor Pairing You can pair Heart Rate Sensor, Speed Sensor, Cadence Sensor and Dual Sensor with Rider 15. 1. Press to enter settings. 2. Press to select “SYNC” and press to enter the setting.

  • Page 13: Delete Records

    Delete NOTE: • Rider 15 can record up to 120 hours in smart recording mode, and it can record up to 30 hours in 1 sec recording mode (It requires Bryton Mobile App to switch to 1 sec recording mode).

  • Page 14: Gps System

    GPS System Rider 15 has full GNSS (Global Navigation Satellite System) support including GPS , GLONASS (Russia), BDS (China), QZSS (Japan) and Galileo (EU). You can select the GPS+GLO mode or GPS+BDS mode according to your location to enhance accuracy or better suit your needs.

  • Page 15: Unit

    Unit You can set km/h or mi/h as your unit of measurement, and set °C or °F as your unit of temperature. 1. Press to enter settings. 2. Press to enter “UNIT” setting. 3. Press to select “km/h or mi/h”. 4.

  • Page 16: Hour

    Hour You can set time format as 12-hour clock or 24-hour clock and adjust daylight saving time. 1. Press to enter settings. 2. Press to select “HOUR” and press to enter HOUR setting. 3. Press to select “12h or 24h” and press to confirm selection.

  • Page 17: Heading

    Heading Heading function informs you which direction you are currently heading. Rider 15 has 2 display modes, the Compass Mode for pointing to the North and the Map Mode for pointing to current direction. 1. Press to enter settings. 2. Press to select “NE”.

  • Page 18: Bryton App Advanced Settings

    Bryton App Advanced Settings After pairing your Rider 15 with Bryton Mobile App, you will have access to Grid Setting and Altitude Calibration. Grid Setting You can customize your data page manaully, set your MHR, LTHR, turn on/off Smart Pause and set Data Recording.

  • Page 19: Altitude Calibration

    Tap “Calibrate” to make change as suggested. e. Bryton Mobile App scans for available devices. Tap “OK” to connect to Rider 15. f. Tap “OK” to calibrate altitude data for your device.

  • Page 20: Notification

    Notification After pairing your compatible smartphone using Bluetooth Smart wirelessly technology with Rider 15, you can receive phone call, text and email notifications on your Rider 15. 1. IOS Phone Pairing a. Turn on Rider 15. b. Go to your phone “Settings>Bluetooth” and enable Bluetooth.

  • Page 21: Appendix

    Appendix Specification Rider 15 Item Description Display 2” Segment Type HTN LCD Physical Size 71 x 46,2 x 16,5 mm. Weight 52 g Operating Temperature -10°C ~ 50°C Battery Charging 0°C ~ 40°C Temperature Battery Li-polymer rechargeable battery Battery Life...

  • Page 22: Battery Information

    Smart Cadence Sensor Item Description Physical Size 36.9 x 31.6 x 8.1 mm Weight Water Resistance Incidental exposure to water of up to 1 meter for up to 30 minutes Transimission Range Battery Life Up to 1 year Operating Temperature -10°C ~ 60°C Radio Frequency/ 2.4GHz / Bluetooth 4.0 and Dynastream ANT+ Sport wireless...
  • Page 23 To replace the battery: 1. Locate the circular battery cover on the back of sensors. 2. Use your finger to press and twist cover counter-clockwise so the indicator on the cover points to unlock icon ( 3. Remove the battery and insert new battery with positive connector first into the battery chamber.

  • Page 24: Install Rider 15

    Install Rider 15 Use Bike Mount to Mount Rider Use F-Mount to Mount Rider (Optional) 24  Specification...

  • Page 25: Install The Speed/Cadence/Dual Sensor (Optional)

    Install the Speed/Cadence Sensor (Optional) Smart Cadence Sensor Smart Speed Sensor NOTE: x Once sensors are waken, the LED blinks twice. The LED continues to blink when you continue to pedal for pairing. After around 15 times blink, it stops blinking. If not used for 10 minutes, sensor would go into sleep mode to preserve power.

  • Page 26: Install Heart Rate Belt (Optional)

    Adjust the sensor position to the middle part of the body (wear it slightly below the chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic belt firmly so that it will turn loose during the exercise.

  • Page 27: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 12x1,75 26x3,00 2170 12x1,95 26x1-1/8 1970 14x1,50 1020 26x1-3/8 2068 14x1,75 1055 26x1-1/2 2100 16x1,50 1185 650C Tubular 26 x7/8 1920 16x1,75 1195 650x20C...

  • Page 28: Basic Care For Your Rider 15

    Basic Care For Your Rider 15 Taking good care of your device will reduce the risk of damage to your device. x Do not drop your device or subject it to severe shock. x Do not expose your device to extreme temperatures and excessive moisture.

  • Page 29: Data Fields

    You are free to use Distance 1 or Distance 2 to record, for example, weekly total distance and use another to record, for example, monthly total distance. It requires Bryton Mobile App to enable this function. Speed : The current rate of change in distance.
  • Page 30 20 cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.brytonsport.com/download/Docs/CeDocs_Rider15.pdf...
