Summary of Contents for Bryton Rider 11

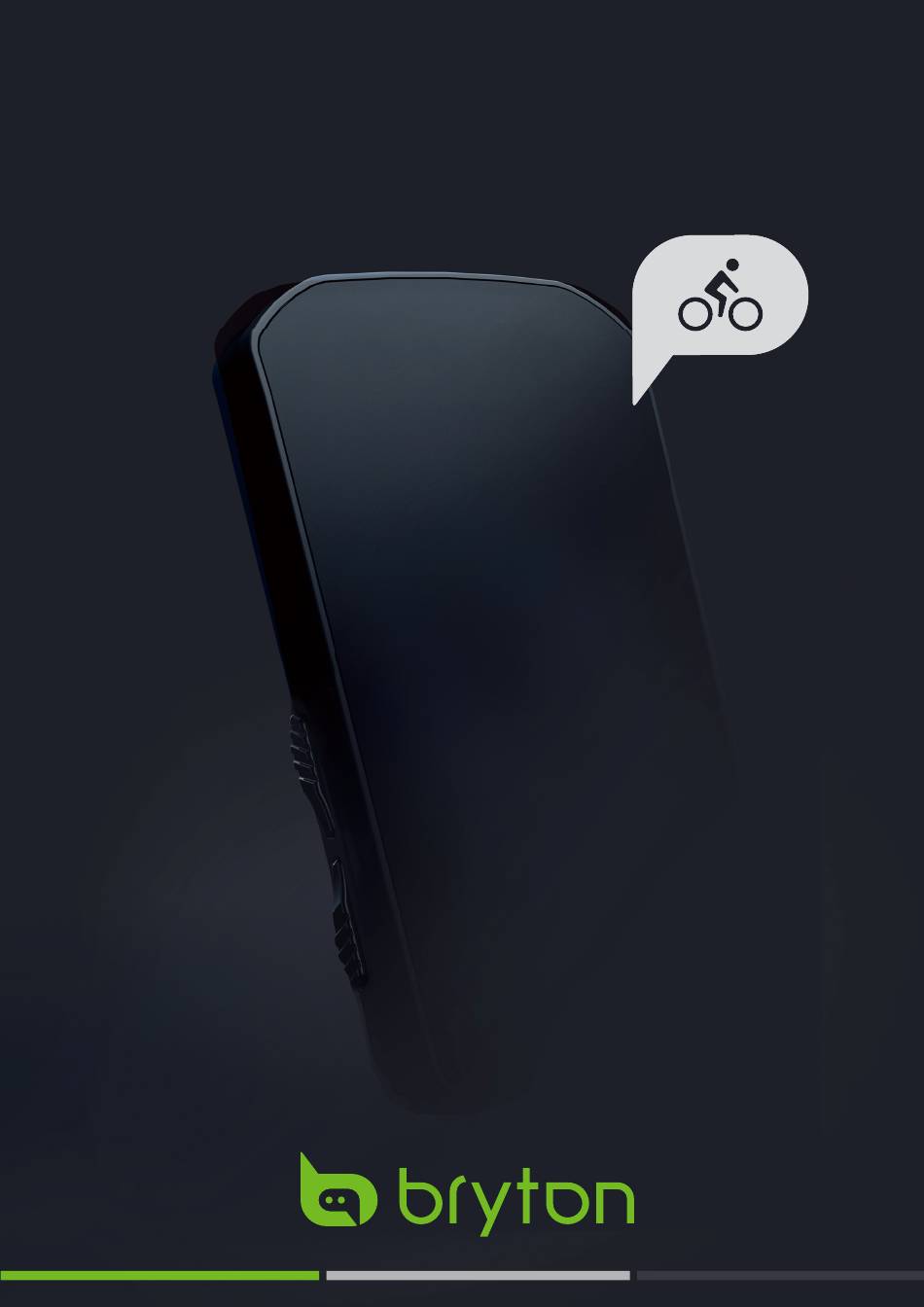

  • Page 1 User Manual Rider 11...
  • Page 2 Video Tutorial For a step-by-step demonstration of device and Bryton Active app, please scan the QR code below to check out Bryton Tutorial Videos. http://www.youtube.com/c/BrytonActive...

  • Page 3: Table Of Contents

    Specification ......20 Initial Setup ....... 7 Battery Information ....21 Step 1: Power On Rider 11 ..7 Wheel Size Chart ....... 23 Step 2: Select Unit ..... 7 Install Speed/Cadence Sensor ..24 Step 3: Acquire GPS Signal ..7 Install Heart Rate Belt ....

  • Page 4: Getting Started

    Getting Started This section will guide you on the basic preparations before you start using your Rider 11. Rider 11 Key Functions POWER/MENU/BACK OK/RECORD Power: x Press to turn the device on. x In Menu, press to confirm a selection.

  • Page 5: Reboot Rider 11

    Reboot Rider 11 To reboot the Rider 11, press the two keys ( ) at the same time. Accessories The Rider 11 comes with the following accessories: USB Cable Bike Mount Optional items: Smart Heart Rate Monitor Smart Speed Sensor...

  • Page 6: Charge Rider 11

    Charge your Rider 11 Before start using the device, connect Rider 11 to a PC with Bryton USB cable to charge the battery for at least 4 hours. The temperature suitable for charging battery is 0°C ~ 40°C. At least 4 Hours...

  • Page 7: Initial Setup

    Initial Setup When turning on Rider 11 for the first time, the setup wizard appears on the screen. Follow the instruction to complete setup. Step1. Turn on Rider 11 Press to turn on Rider 11. Step2. Select Unit km/h, ˚C Select "km/h, ˚C"...

  • Page 8: Step 4: Ride With Rider 11

    4. Ride with Rider 11 After acuired GPS signal, you can enjoy your ride with Rider 11. x Free ride: Measurement starts and stops automatically in sync with the movement of the bicycle.

  • Page 9: Step 5: Install On Bikes

    5. Install on Bikes Table of Getting Settings Bryton App Appendix Contents Started 9 Getting Started...

  • Page 10: Share Your Records

    UUID does not match, press NO and try again. Note: Bryton Active App syncs with Brytonactive.com. If you already have a brytonactive.com account, please use the same account to log in to Bryton Active App and vice versa. Table of...
  • Page 11 Register for a new account or use your current account to log in. iii. Turn on your Rider 11 and connect it to your computer by USB cable. Then find the “Bryton” disk in the computer. c. Share Your Records to Strava a.

  • Page 12: Bryton Update Tool

    Bryton Update Tool Bryton Update Tool is the tool for you to update GPS data, firmware and download Bryton Test. 1. Go to http://www.brytonsport.com/#/supportResult?tag=BrytonTool and download Bryton Update Tool. 2. Follow the on-screen instructions to install Bryton Update Tool. Update GPS Data The newer GPS data can speed up the GPS acquisition.

  • Page 13: Settings

    Refer to the wheel size chart. x Once the profile is set up, bike Confirm and move infomation will be stored. Make the to the next digit. ride more easier. Table of Getting Settings Bryton App Appendix Contents Started 13 Settings...

  • Page 14: Calibrate Altitude

    Confirm and move to the next digit. The first digit can be set as "-" or "0". Note: Bryton Active App provides altitude information for you to calibrate altitude manually. Go to Page 18 to see more information. Table of...

  • Page 15: Sensor Pairing

    GPS signal. x To pair sensors with Rider 11, please have Bryton Smart Sensors installed on the bike first, then wear heart rate monitor or rotate crank and wheel for a few times to wake Bryton Smart Sensors up while scanning.

  • Page 16: Delete Data

    Confirm and move “0”. The last 2 digits can only be to the next step. set as “30” or “00”. Select numbers. Confirm and move to the next digit. Table of Getting Settings Bryton App Appendix Contents Started 16 Settings...

  • Page 17: Odometer

    Confirm and move to the next digit. 8. Reset Data x You can reset your device to Select factory settings. "YES" or "NO". Confirm to reset data. Table of Getting Settings Bryton App Appendix Contents Started 17 Settings...

  • Page 18: Bryton App Advanced Settings

    Notifications After pairing your compatible smartphone using Bluetooth Smart wireless technology with Rider 11, you can receive phone calls, texts and email notifications on your Rider 11. 1. iOS Phone Pairing a. Go to your phone “Settings>Bluetooth” and enable Bluetooth.

  • Page 19: Altitude Calibration

    2. Calibrate Your Altitude a. Tap “Alt. Cal” in Bryton Active App. b. Tap ”Allow” to enable Bryton Active App to use current location for altitude information. (For iOS phone only) c. Bryton Active App shows altitude of your current location. You can also make manual changes by pressing or tap on the number to input manually.

  • Page 20: Appendix

    The current rate at which rider is pedalling the pedals. The accumulated power output in kilojoules for the current Cadence Avg CAD activity. Max CAD The maximum cadence for current activity. Temperature Temp The current temperature. Table of Getting Settings Bryton App Appendix Contents Started 20 Appendix...

  • Page 21: Specification

    Specification Rider 11 Item Description Display 2” Segment Type HTN LCD Physical Size 71.1 X 46.1 X 16.7 mm Weight 51 g Operating Temperature -10°C ~ 50°C Battery Charging 0°C ~ 40°C Temperature Battery Li-polymer rechargeable battery Battery Life 16 hours with open sky...

  • Page 22: Battery Information

    ( 3. Remove the cover and battery tab. 4. Use your finger to press and twist cover clockwise so the indicator on the cover points to locked icon ( Table of Getting Settings Bryton App Appendix Contents Started 22 Appendix...
  • Page 23 5. Use a coin to twist the cover clockwise. NOTE: x Be careful not to damage or lose the O-ring gasket. x Contact your local waste disposal department to properly dispose of of used batteries. Table of Getting Settings Bryton App Appendix Contents Started 23 Appendix...

  • Page 24: Wheel Size Chart

    2200 26x1,40 2005 700x42C 2224 26x1,50 2010 700x44C 2235 26x1,75 2023 700x45C 2242 26x1,95 2050 700x47C 2268 26x2,10 2068 29x2,1 2288 26x2,125 2070 29x2,2 2298 26x2,35 2083 29x2,3 2326 Table of Getting Settings Bryton App Appendix Contents Started 24 Appendix...
  • Page 25 After around 15 times blink, it stops blinking. If not used for 10 minutes, sensor would go into sleep mode to preserve power. Please complete the pairing during the time the sensor is awake. Table of Getting Settings Bryton App Appendix Contents Started 25 Appendix...

  • Page 26: Install Heart Rate Belt

    The belt should be worn directly on your body. x Adjust the sensor position to the middle part of the body (wear it slightly below the chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic belt firmly so that it will turn loose during the exercise.

  • Page 27: Basic Care For Your Rider 11

    Basic Care For Your Rider 11 Taking good care of your device will reduce the risk of damage to your device. x Do not drop your device or subject it to severe shock. x Do not expose your device to extreme temperatures and excessive moisture.
  • Page 28 20 cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.brytonsport.com/download/Docs/CeDocs_Rider15neo.pdf...
