Summary of Contents for Bryton Rider S500

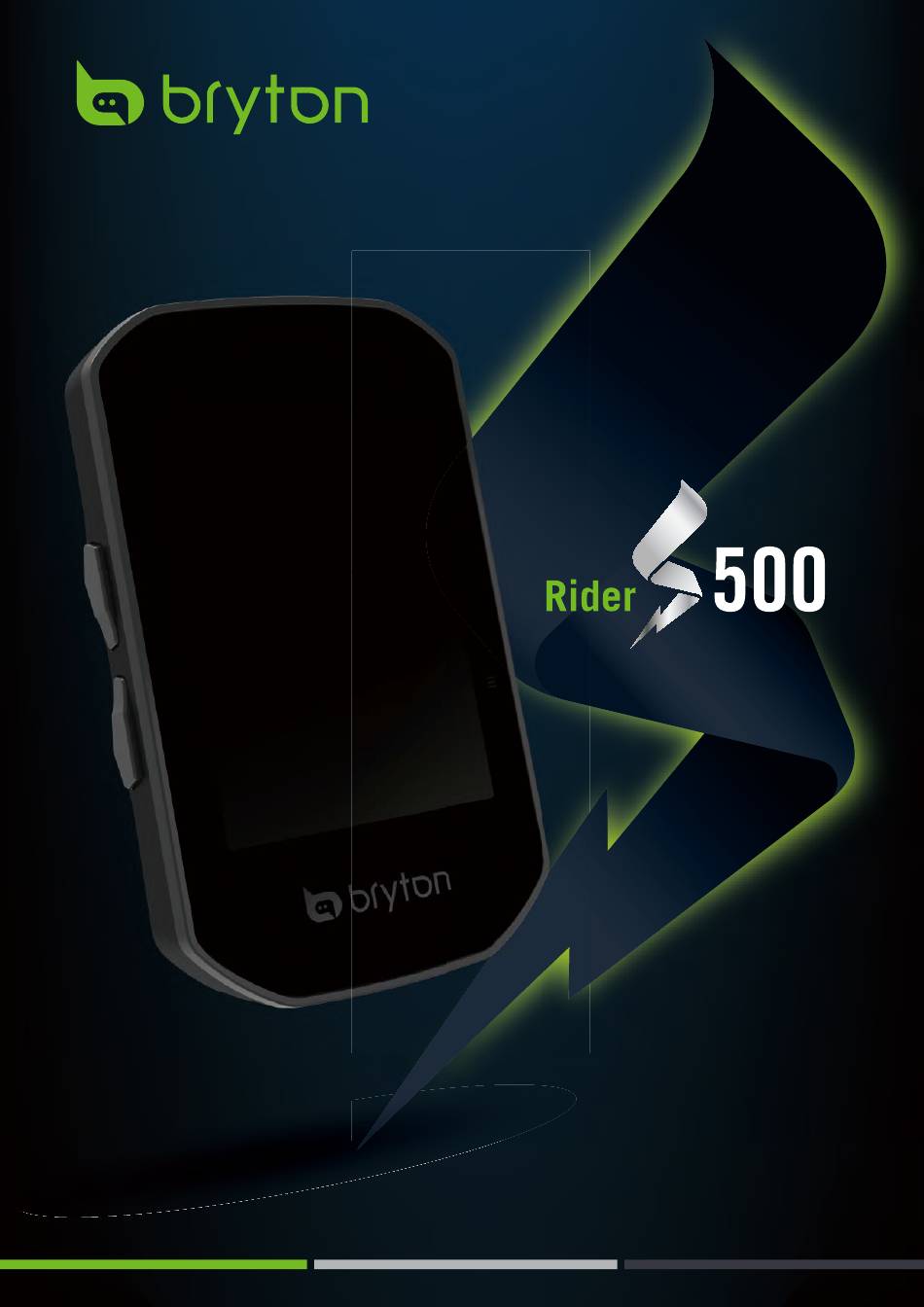

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Altitude ........45 Status Icons ....... 8 About ........46 Step 1: Charge Your Rider S500 ... 9 Profile ......47 Step 2: Turn On Rider S500 ..9 Bryton Advanced Settings ..48 Step 3: Initial Setup ....9 Notifications .......
  • Page 3 Video Tutorial For a step-by-step demonstration of device and Bryton Active app, please scan the QR code below to check out Bryton Tutorial Videos. http://www.youtube.com/c/BrytonActive...

  • Page 4: Getting Started

    In Cycling mode, press to switch meter screen pages. Reboot Rider Press ( ) at the same time to reboot the device. Accessories The Rider S500 T SKU comes with the following accessories: USB Cable Bike Mount Sport Mount Optional items: Smart Heart Rate Monitor...

  • Page 5: Touch Screen

    Touch Screen Speed S pe titude itud Altitude 24.3 t. Gain t. Gain Alt. Gain Ride Time e Ti Gr r ad radient dien Ride Ti de T Gradient adie 06:15 06:1 Trip Time Trip Time Trip p Ti Ca a lor alories alories Trip Tim...

  • Page 6: Gui Display

    GUI Display Outer Rings Average value Inner Rings Current value when using a Speed or a Cadence sensor. Current value when using a Heart Rate Monitor or a Power sensor. The colors will change by different zones, which are based on the settings. 15.2 1293 Bar Chart for Di2/E-Shifting...

  • Page 7: Quick Status

    Quick Status See key statuses while riding, such as sensor & smartphone connection, GPS signal, and individual battery status of paired sensor ,etc…Users can also see if device is recording at a glance by the flicker. 1. Single-tap the screen on meter page to 08:30 08:30 open the Quick Staus menu.

  • Page 8: Status Icons

    Status Icons NOTE: When you seen this for the GPS signal, it means the device is keeping the ephemeris data, which will help the dvice acquire the GPS signal faster. The data will remain in 1 to 2 weeks, and needs to be updated. 8  Getting Started Back to Top...

  • Page 9: Step 1: Charge Your Rider S500

    Step 1: Charge your Rider S500 Charge the Rider S500 battery for at least 4 hours. Unplug the device when it is fully charged. x You may see the battery icon blinking when the battery is very low. Keep the device plugged in until properly charged.

  • Page 10: Step 4: Acquire Satellite Signals

    Step 4: Acquire Satellite Signals Once the Rider S500 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals for first time use. • The GPS signal Icon ( ) appears when GPS is fixed.

  • Page 11: Step 6: Share Your Records

    Go to https://active.brytonsport.com. b. Register for a new account. 2. Connect to PC Turn on your Rider S500 and connect it to a computer by USB cable. 3. Share Your Records a. Click “+” in the right upper corner.
  • Page 12 NOTE: Bryton Active App syncs with Brytonactive.com. If you already have a brytonactive. brytonactive.com account, please use the same account to log in to Bryton Active App and com account, please use the same account to log in to Bryton Active App and vice versa. vice versa.

  • Page 13: Firmware Update

    Firmware Update Bryton Update Tool Bryton Update Tool is the tool for you to update GPS data, firmware and download Bryton Test. 1. Go to http://www.brytonsport.com/#/supportResult?tag=BrytonTool and download Bryton Update Tool. 2. Follow the on-screen instructions to install Bryton Update Tool.
  • Page 14 USB-C to USB Adapter with Bryton original cable. Make sure the smartphone is connected to the device. Select the “BRYTON” root folder to allow Bryton Active app gets permission to access the device for downloading new firmware. 14  Getting Started Back to Top...
  • Page 15 OK to start the update. Or select Firmware Update to start updating. c. Choose to upadte the firmware with Bryton cable or with Bluetooth. If you are using the cable, please give the app permission to access phone storage.

  • Page 16: Course

    Route Create Track Rider S500 provides 3 ways to create tracks: 1. Plan trip via Bryton Active App. 2. Import routes from 3rd party platforms. 3. Auto sync routes from Strava, Komoot and RideWithGPS. Plan Trips via Bryton Active App 1.
  • Page 17 Peak in Route mode, allowing you to make the right decision based on your status and stay motivated along the way. 1. Go to Course > My Routes in Bryton Active App. 2. Select the route you would like to add POIs.

  • Page 18: Route Guidance

    Route Guidance After downloading routes to the Rider S500, you are able to follow the route guidance. Rider S500 supports advanced features to help you stay on track and get the most out of your rides, such as auto-rerouting, on-screen POIs, and reverse saved rides.
  • Page 19 Lyell St. Lyell St. Without connection with Bryton Active App If the Rider S500 is not connected to the app, the map will display a dash line to show you the direaction to the route. Press to show the directin to the start.

  • Page 20: Climb Challenge

    Climb to new heights with the Climb Challenge feature. When approaching a climb, the Rider S500 will change to the Climb Section page, providing an overview of a route’s climb segments. The Climb Challenge screen also features a graphical summary with multiple climbs, vivid color climb segments, distance, altitude &...

  • Page 21: Workout

    Workout Create a Workout Rider S500 provides 2 ways to create workout: 1. Plan workout via Bryton Active App. 2. Import workout from 3rd party platforms. Plan workout via Bryton Active App 1. In Bryton Active App, select Course >...
  • Page 22 Note: After you synced the workout plan from the app for the 7-day period, the workouts will disapper when the date passed. If you want to save a particular workout to the Rider S500, please download the workout from the app to the device.

  • Page 23: Bryton Test

    Bryton Test Bryton Test includes test courses to help you evaluate your MHR, LTHR, FTP and MAP. Knowing your MHR, LTHR, FTP and MAP gives you a benchmark of your overall efficiency. It also helps you check progress over time and analyze your exercise intensity.

  • Page 24: Smart Trainer

    2. Select to confirm. Note: To see how to create tracks: 1. Plan trip via Bryton Active App. 2. Import routes from 3rd party platforms. 3. Auto sync routes from Strava, Komoot and RideWithGPS. Please go to Page16.
  • Page 25 Smart Workout Training plans can be built with the Bryton Active App and downloaded directly to the Rider S500. With ANT+ FE-C support, the Rider S500 will communicate with your smart trainer to simulate the resistance from the training plan.
  • Page 26 Virtual Ride or the Smart Trainer lost connection. Power Note: You need to connect a smart trainer to the Rider S500 before having access to the Virtual Ride, Smart Workout, Resistance, and Power Workout. 26  Course Back to Top...

  • Page 27: Navigation

    Navigation With connection to the internet, you can use your voice to search for locations on the Rider S500 in over 100 languages. The voice search features offers a faster, more intuitive and more convenient to find addresses or POIs. Voice Serach 1.

  • Page 28: Pin A Location

    2. Tap on to start navigation. Navigate on Bryton Active App 1. Pair the Rider S500 with Bryton Active App, select Course > Navigation. 2. Input keywords or address or POI type in the search bar then click 3. Select a result from the search list.

  • Page 29: Retrace

    Retrace When you want to return back to your starting location, the Rider S500 can help you double back with just a press of a button at any point during a ride, using the same path you took to retrace your steps and providing turn-by-turn route guidance! 1.

  • Page 30: Download Maps

    Please do not rename the file(s) or change the file extension(s) in the unzipped folder, as this may cause errors to occur. 2. Using the Bryton device’s original USB cable, plug the device into the PC and in the “Bryton” disk, navigate to [Bryton>MAP].
  • Page 31 Adapter while using an iPhone. d. Select the “Add Maps” and choose a desired map c. Select the “BRYTON” root folder to allow Bryton Active app gets permission to access the device for to download to the Rider S500. downloading maps.
  • Page 32 USB-C to USB Adapter while using an iPhone. c. Select the “BRYTON” root folder to allow Bryton d. Select the “Bryton OpenStreetMap” and choose the Active app gets permission to access the device for map, which you want to delete.

  • Page 33: Results

    Results You can view recorded activities on the Rider S500 or delete records to save more storage capacity of the device. View Records 2021/12/15 1. Select in the home page. 2. Pick a record to view details. Summary Details 3. Tap Details or Summary to see different data.

  • Page 34: Settings

    Active App. Bike Setup Rider S500 supports up to 3 bike profiles, it is easier than ever to customize your device for any type of setup. Settings for each profile can be completely customized for any type of cycling, such as GPS system, wheel size, data fields, etc.
  • Page 35 Auto Lap: AUTO LAP Auto Lap Trigger: You can use the Auto Lap to mark the lap at a AUTO LAP TRIGGER Auto Lap Trigger particular position automatically. Location Choose by Distance or Location Lap At option to trigger laps counts. 51.507877, Set desired settings or type value by Distance...
  • Page 36 GPS System Rider S500 has full GNSS (Global Navigation Satellite System) support including GPS, GLONASS (Russia), BDS (China), QZSS (Japan) and Galileo (EU). You can select a suitable GPS Mode according to your location to enhance accuracy or better suit your needs.

  • Page 37: Display

    Overview Select Overview to view more details of the bike odometer. 1. Find in the home page. OVERVIEW 2. Tap Bike Settings. 3. Select a bike profile > Overview. Trip 1 Trip 1 / 2: 20 km Cumulative mileage recorded before you reset Trip 2 it.

  • Page 38: Pair Sensors

    Pair Sensors We suggest that you pair all your sensors with the device beforehead, Rider S500 will scan for nearby active sensors from the sensor pool, making switching between bikes and sensors easier and more convenient than ever. 1. Select in the home page.
  • Page 39 Using Electronic Shifting Systems After pairing electronic shifters, such as Shimano Di2 or SRAM, you can enter the sensor pages for further settings. To customize the data grids on meter pages, please go to page 5 for more instruction. Sensor Details Rear Gear Gear 1 120345...
  • Page 40 2. Choose any type of sensor that you would like to pair with. 3. To pair sensors with your device, please have Bryton Smart Sensors installed first, then wear a heart rate monitor or rotate the crank and wheel a few times to wake Bryton Smart Sensors up.
  • Page 41 If there is no veichle around you in 150m, the color strip will not show on the screen. • Please go to Page 29 to see how to pair a bike radar with Rider S500. Using E-bike The Rider S500 incorporates Shimano Steps and ANT+ LEV e-bike support for compatible brands to display various e-bike data, including assist mode, assist level shifting mode, E-Bike battery, travel range and rear gear position.

  • Page 42: System

    System In System, you can customize System Settings, Recording Settings, Auto Scroll, Start Remind, File Saving, Memory, ODO, and Data Reset. System Settings You can setup Language, Backlight Duration, Meter Color Mode, Key Tone, Sound, Time/Unit, Auto Lock, and Status Duration. 1.
  • Page 43 Recording Settings In Recording Settings, data recording frequency can be customized for higher accuracy / data saving, as well as how data is included depending on user preference. 1. Select in the home page. Recording Settings 2. Select System > Recording Settings. Smart Recording Smart Recording 4 Sec...

  • Page 44: Altitude

    Altitude With connection to Internet, Rider S500 provides altitude information for you to calibrate directly. You can also change altitude manually. Calibrate Altitude ALTITUDE 1. Choose in the home page. 2. Select Altitude. 3. Click on the number to change the value.

  • Page 45: Profile

    Profile In Profile, you can browse and personalize your information. Personal Information 1. Select in the home page. PROFILE 2. Select Herat Rate Zone and tap to edit details. Device Name Customize Heart Rate Zone 1. Select MHR. Katherine x Use keyboard to enter MHR . Gender x Press to edit details for each zone.

  • Page 46: Bryton Advanced Settings

    Bryton App Advanced Settings After pairing your Rider S500 with Bryton Active App, you will have access to Notifications. Notifications After pairing your compatible smartphone using Bluetooth Smart wireless technology with Rider S500, you can receive phone calls, texts and email notifications on your Rider S500.

  • Page 47: Appendix

    Appendix Specification Rider S500 Item Description Display 2.4” color TFT 240x320 capacitive touch screen Physical Size 83.9 x 51 x 17.4 mm Weight 87 g Operating Temperature -10°C ~ 50°C Battery Charging 0°C ~ 40°C Temperature Battery Li-polymer rechargeable battery...

  • Page 48: Battery Information

    Smart Cadence Sensor (Optional) Item Description Physical Size 36.9 x 31.6 x 8.1 mm Weight Water Resistance Incidental exposure to water of up to 1 meter for up to 30 minutes Transimission Range Battery Life Up to 1 year Operating Temperature -10°C ~ 60°C Radio Frequency/protocol 2.4GHz / Bluetooth 4.0 and Dynastream ANT+ Sport wireless communications protocol...
  • Page 49 To replace the battery: 1. Locate the circular battery cover on the back of sensors. 2. Use your finger to press and twist cover counter-clockwise so the indicator on the cover points to unlock icon ( 3. Remove the battery and insert new battery with positive connector first into the battery chamber.

  • Page 50: Install Rider S500

    Install Rider S500 Use Sport Mount to Mount Rider S500 Use F-Mount to Mount Rider S500 50  Appendix Back to Top...

  • Page 51: Install The Speed/Cadence/Dual Sensor (Optional)

    Install the Speed/Cadence Sensor (Optional) Smart Cadence Sensor Smart Speed Sensor NOTE: x Once sensors are waken, the LED blinks twice. The LED continues to blink when you continue to pedal for pairing. After around 15 times blink, it stops blinking. If not used for 10 minutes, sensor would go into sleep mode to preserve power.

  • Page 52: Install Heart Rate Belt (Optional)

    Adjust the sensor position to the middle part of the body (wear it slightly below the chest). The Bryton logo shown on the sensor should be facing upward. Tighten the elastic belt firmly so that it will turn loose during the exercise.

  • Page 53: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 12x1,75 26x3,00 2170 12x1,95 26x1-1/8 1970 14x1,50 1020 26x1-3/8 2068 14x1,75 1055 26x1-1/2 2100 16x1,50 1185 650C Tubular 26 1920 x7/8 16x1,75...

  • Page 54: Data Fields

    Data Field Category Data Field Description of Data Fields The height of your current location above or below sea Altitude level. The highest height of your current location above or below Max Altitude level which the rider achieved for the current activity. The total altitude distance gained during this current activ- Alt.
  • Page 55 Category Data Field Description of Data Fields Calories The number of total calories burned. Energy The accumulated power output in kilojoules for the current Kilojoules activity. Time Current GPS Time. Ride Time The time spent on riding for current activity. Trip Time Total time spent for current activity.
  • Page 56 Category Data Field Description of Data Fields Power Now Current Power in Watt. Avg Power The average power for the current activity. Max Power The maximum power for the current activity. LapAvgPw The average power for the current lap. LapMaxPw The maximum power for the current lap.
  • Page 57 Category Data Field Description of Data Fields CurPB-LR The current left/right power balance. The average left/right power balance for the current AvgPB-LR activity. The current left/right percentage of how efficiently a rider CurTE-LR is pedaling. The maximum left/right percentage of how efficiently a MaxTE-LR rider is pedaling.
  • Page 58 Category Data Field Description of Data Fields SPD Ring The current speed rate displays in dynamic coloured graph- ical mode. SPD Bar CAD Ring The current cadence rate displays in dynamic coloured graphical mode. CAD Bar HR Ring The current heart rate displays in dynamic coloured graph- ical mode.

  • Page 59: Basic Care For Your Rider S500

    20 cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.brytonsport.com/download/Docs/CeDocs_RiderS500.pdf...
