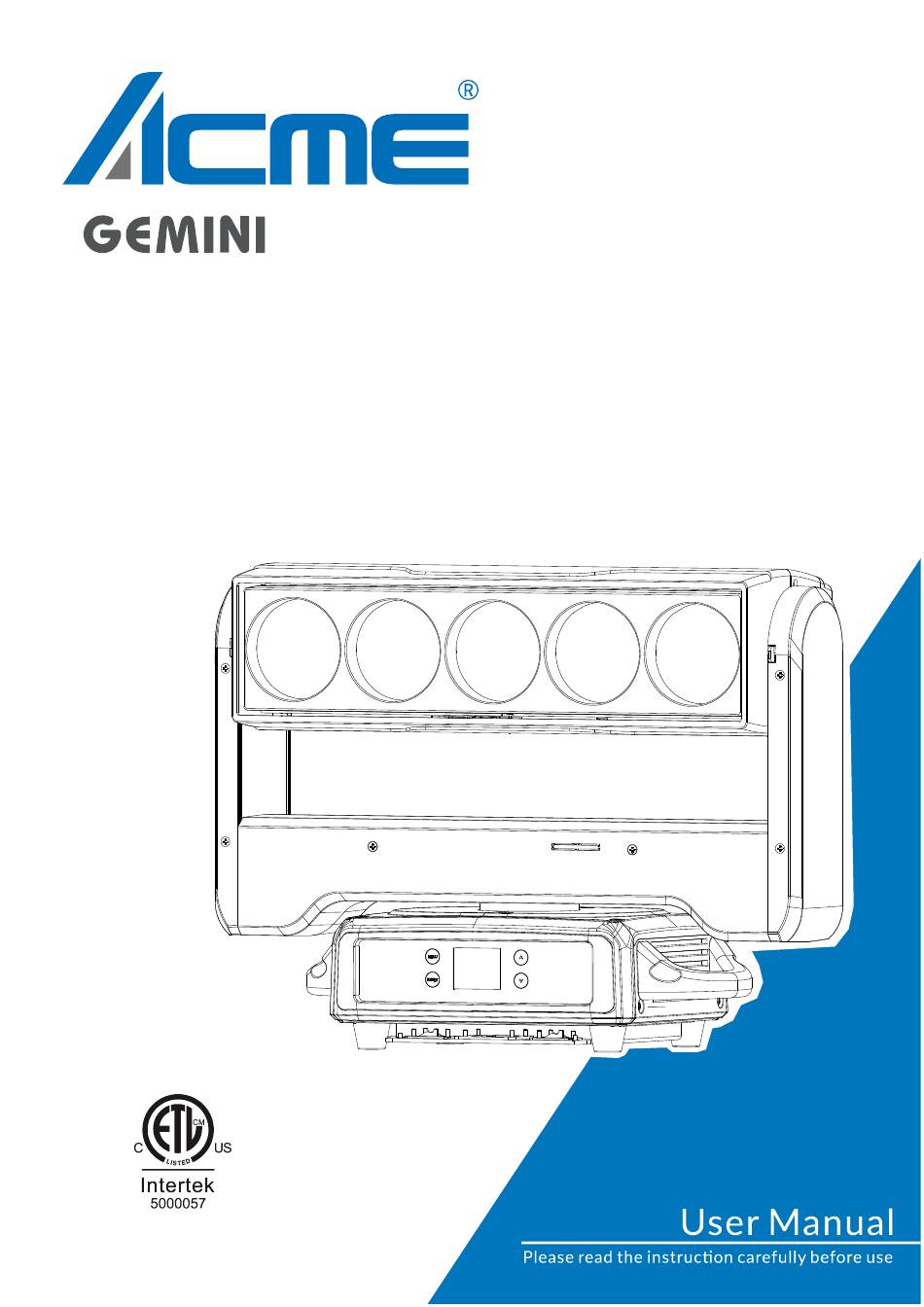

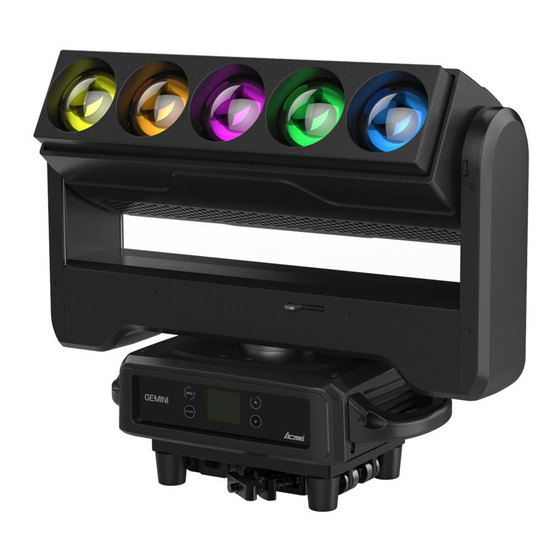

ACME GEMINI User Manual
Hide thumbs Also See for GEMINI:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEMINI and is the answer not in the manual?

Questions and answers

Summary of Contents for ACME GEMINI

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Instructions ....................2 02/ Technical Specifications ..................6 03/ Control Panel ......................8 04/ Fixture Installation ....................9 05/ How To Set The Unit .................... 11 5.1 Main Functions ....................11 5.2 Home Position Adjustment ................. 25 06/ Control By Universal DMX Controller ..............
  • Page 3: 01/ Safety Instructions

    01/ Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 pour éviter tout risque d'incendie. Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 75℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil.
  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications Power Voltage 100-240V~ 50/60Hz Power Consumption 1240W 5x60W RGBW LED Light Source 36x18W CW LED 2.8°-31° (beam section) Beam Angle 96° (strobe section) 5°-46° (beam section) Field Angle 116° (strobe section) 0-100% smooth dimming; outstanding strobe effect with variable Dimmer/Strobe speed Infinite...
  • Page 8 With zoom and strobe functions Beam section: 5 x RGBW LEDs with individual control Strobe section: 18 x CW LED zones with individual control Features Variable CTO Outstanding color mixing effect Supplied with two omega brackets (optional with two fixed foldable clamps) 500x223x388.4 mm Dimensions...
  • Page 9: 03/ Control Panel

    03/ Control Panel 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.
  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation  DO install and operate by qualified operator. Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas were unauthorized personnel might reach the fixture by hand. NEVER stand directly below the fixture(s) when rigging, removing or servicing.
  • Page 11 Steps for installing omega brackets to the fixture: - 10 -...
  • Page 12: 05/ How To Set The Unit

    05/ How To Set The Unit 5.1 Main Functions  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 13 MENU SUBMENU OPTIONS Default 1:002.xxx.xxx.xxx IP Address Default 2:010.xxx.xxx.xxx Network Manual:xxx.xxx.xxx.xxx Subnet Mask xxx.xxx.xxx.xxx 0-127 (Default=0) Art-Net Settings Sub-Net 0-15 (Default=0) Universe 0-15 (Default=0) sACN Universe 1-32000 (Default=1) sACN Settings sACN Priority 0-200 (Default=100) Network to DMX Pan Invert Tilt Invert P/T Feedback Linear Square Law...
  • Page 14 MENU SUBMENU OPTIONS Display Invert Backlight Intensity 1-10 (Default=10) Display Settings °C Temperature Unit °F English Language Chinese Single Auto Test Cycle Mode 1 Mode 2 Clear No/Yes Clear No/Yes 0-255 0-255 Tilt 0-255 Tilt 0-255 Pan Infinity 0-255 Pan Infinity 0-255 Tilt Infinity 0-255 Tilt Infinity...
  • Page 15 MENU SUBMENU OPTIONS Fixture Use Hour Total LED Hour LED Use Hour LED On Hour LED Hours Reset Password=050 LED’s LED 1 LED 2 Temperature CPU-A CPU-B Fixture Information PCBA CPU-C CPU-D B_FAN 1-2 Fan State H_FAN 1-5 Firmware Version RDM UID Fixture Errors Error Logs...
  • Page 16 DMX Settings Enter the control menu and select DMX Settings, press ENTER. Use the UP/DOWN button to select DMX Address, Mode 4 ART Addr, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Network to DMX. DMX Address Select DMX Address, press ENTER.
  • Page 17 No DMX Status Select No DMX Status, press ENTER. Use UP/DOWN button to select one of the following status: Blackout (Fixture blacks out if DMX signal stops) Hold (The device continues to operate in the current mode with the last active DMX values until the signal returns) Manual (The device accepts the DMX value stored in the ‘Manual Test’...
  • Page 18 sACN Settings Select sACN Settings, press ENTER. Use UP/DOWN button to select sACN Universe or sACN Priority, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Network to DMX Select Network to DMX, press ENTER. Use UP/DOWN button to select No or Yes, confirm your selection with ENTER.
  • Page 19 P/T Feedback Select P/T Feedback, press ENTER. Use UP/DOWN button to select No (pan/tilt feedback deactivated) or Yes (pan/tilt feedback activated), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Dimmer Curve Select Dimmer Curve, press ENTER. Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, confirm your selection with ENTER.
  • Page 20 Invert Pixel Order Select Invert Pixel Order, press ENTER. Use UP/DOWN button to select Disable or Enable, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Line Power Mode Select Line Power Mode, press ENTER. Use UP/DOWN button to select Off or On, confirm your selection with ENTER.
  • Page 21 Language Select Language, press ENTER. Use UP/DOWN button to select English or Chinese, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Fixture Test Enter the control menu and select Fixture Test, press ENTER. Use the UP/DOWN button to select Auto Test or Manual Test.
  • Page 22 Fixture Information Enter the control menu and select Fixture Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Temperature, Fan State, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER. The operating hours is displayed.
  • Page 23 Firmware Version Select Firmware Version, press ENTER. The firmware version is displayed. To exit the menu, press MENU, or wait 30 seconds. RDM UID Select RDM UID, press ENTER. The RDM UID is displayed. To exit the menu, press MENU, or wait 30 seconds. Error Logs Select Error Logs, press ENTER.
  • Page 24 Effect Reset Select Effect Reset, press ENTER. Use UP/DOWN button to select No or Yes (the device will run built-in program to reset effect to their home positions), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. All Reset Select All Reset, press ENTER.
  • Page 25 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...
  • Page 26: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 27 Frequency(Hz) Select Frequency(Hz), press ENTER. Use UP/DOWN button to select a value between 19872 and 20127, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Select Pan, press ENTER. Use UP/DOWN button to select a value between -128 and 127, confirm your selection with ENTER.
  • Page 28 Blue 1 Select Blue 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. White 1 Select White 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 29 White 5 Select White 5, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. LED White 1 Select LED White 1, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.
  • Page 30: 06/ Control By Universal Dmx Controller

    06/ Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.
  • Page 31: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address between 1 and 512 so that the units can receive DMX signal. Press the MENU button to access the control menus, select DMX Settings, press the ENTER button to confirm.
  • Page 32 58/25/23/27/70/55 Channels: CHANNEL VALUE FUNCTION 58ch 25ch 23ch 27ch 70ch 55ch 000-255 0°540° 000-255 PAN FINE TILT 0°450° 000-255 000-255 TILT FINE PAN INFINITY 000-127 Null 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Null...
  • Page 33 DIMMER 1 000-255 0%100% 000-255 DIMMER FINE 1 RED 2 000-255 0%100% GREEN 2 000-255 0%100% BLUE 2 000-255 0%100% WHITE 2 000-255 0%100% STROBE 2 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231...
  • Page 34 GREEN 4 000-255 0%100% BLUE 4 000-255 0%100% WHITE 4 0%100% 000-255 STROBE 4 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247...
  • Page 35 LED WHITE 5 000-255 0%100% LED WHITE 6 000-255 0%100% LED WHITE 7 0%100% 000-255 LED WHITE 8 000-255 0%100% LED WHITE 9 000-255 0%100% LED WHITE 10 000-255 0%100% LED WHITE 11 000-255 0%100% LED WHITE 12 000-255 0%100% LED WHITE 13 000-255 0%100%...
  • Page 36 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198...
  • Page 37 100-104 LEE 116-Medium Blue Green 105-109 LEE 124-Dark Green 110-114 LEE 139-Primary Green 115-119 LEE 089-Moss Green 120-124 LEE 122-Fern Green 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159...
  • Page 38 145-149 Built-in Mode 3 150-154 Built-in Mode 4 155-159 Built-in Mode 5 160-164 Built-in Mode 6 165-169 Built-in Mode 7 170-174 Built-in Mode 8 175-179 Built-in Mode 9 180-184 Built-in Mode 10 185-189 Built-in Mode 11 190-194 Built-in Mode 12 195-199 Built-in Mode 13 200-204...
  • Page 39 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179 Open 180-201 CW Rotation, Fast to Slow 202-207 Stop 208-229 CCW Rotation, Slow to Fast 230-234 Open 235-239...
  • Page 40 070-074 Show 14 075-079 Show 15 080-084 Show 16 085-089 Show 17 090-094 Show 18 095-099 Show 19 100-104 Show 20 105-109 Show 21 110-114 Show 22 115-119 Show 23 120-124 Show 24 125-129 Show 25 130-134 Show 26 135-139 Show 27 140-144 Show 28...
  • Page 41 240-247 Random Strobe from Slow to Fast 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE FUNCTION 000-029 Null 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law 060-069 Dimmer Curve S 070-079 Line Power Mode: Off 080-089 Line Power Mode: On 090-099...
  • Page 42 000-255 0%100% LED WHITE 2 000-255 0%100% LED WHITE 3 000-255 0%100% LED WHITE 4 000-255 0%100% LED WHITE 5 000-255 0%100% LED WHITE 6 000-255 0%100% LED WHITE 7 000-255 0%100% LED WHITE 8 0%100% 000-255 LED WHITE 9 000-255 0%100% LED WHITE 10...
  • Page 43 ZOOM 000-255 WideNarrow 000-255 ZOOM FINE STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Slow Open Fast Close from Slow to Fast 182-189 Open 190-231 Fast Open Slow Close from Slow to Fast 232-239 Open 240-247 Random Strobe from Slow to Fast...
  • Page 44 000-255 0%100% WHITE 2 000-255 0%100% RED 3 000-255 0%100% GREEN 3 000-255 0%100% BLUE 3 000-255 0%100% WHITE 3 000-255 0%100% RED 4 000-255 0%100% GREEN 4 0%100% 000-255 BLUE 4 000-255 0%100% WHITE 4 000-255 0%100% RED 5 0%100% 000-255 GREEN 5...
  • Page 45: 07/ Error Information

    07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. CPU-B/C/D Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected.
  • Page 46 Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 47 LED Temp. 1/2 Error Check whether the temperature detecting board is normal. Check whether the components of the temperature detecting board are damaged. Check whether the lead on the temperature detecting board is installed in place or disconnected. LED Timeout Use LED Too Hot Off When the fixture temperature of beam mode reaches 75℃, it will automatically turn off to protect the fixture.
  • Page 48: 08/ Troubleshooting

    Position of cooling fans: 08/ Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work  Check the connected power. ...
  • Page 49: 09/ Fixture Cleaning

    09/ Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life. The fixture must be cleaned regularly to avoid dust, dirt and smoke-fluid residues building up on or within the fixture. The cleaning frequency depends on the application environment.
  • Page 50 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015+A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1: 2019; EN 55035: 2017+A11: 2020.
