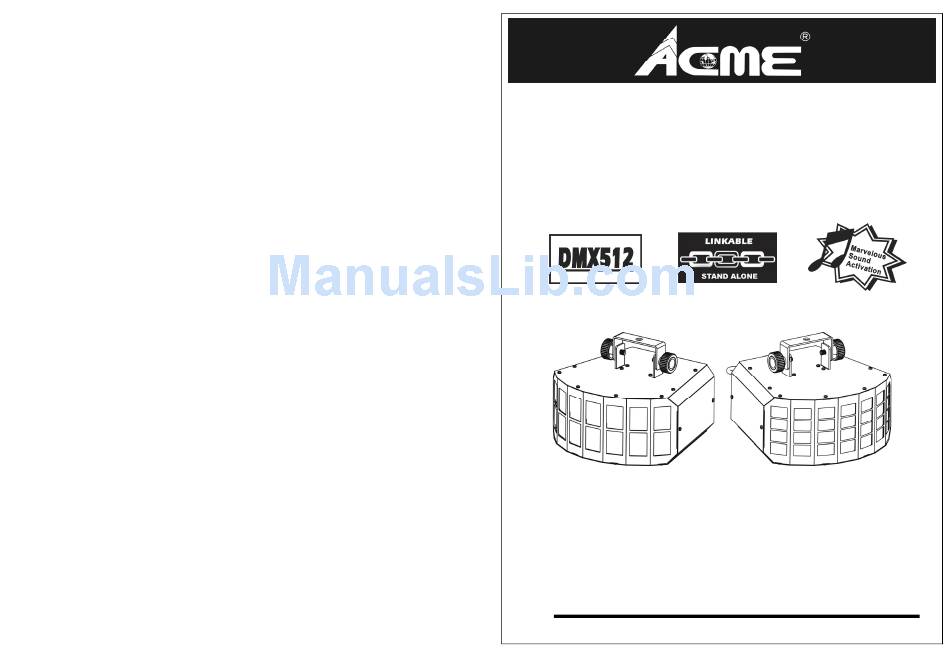

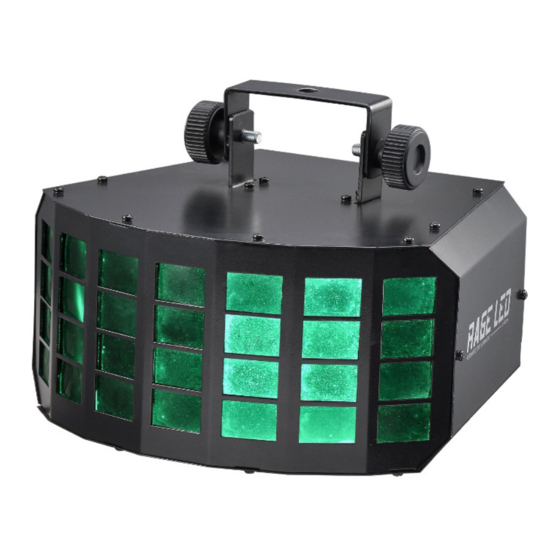

- Page 1 "#$%!&'(!$)*! $+)'!&'(!$)*! LED-3082 RGB LED-3084 RGB User Manual Innovation, Quality, Performance Please read the instructions carefully before use...
- Page 2 TABLE OF CONTENTS EC - Declaration of Conformity 1. Safety Instructions 2. Technical Specifications We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the 3. Installation Electromagnetic Compatibility (EMC) Directive 89/336/EEC. 4.
- Page 3 9. Fixture Cleaning Safety Introductions The cleaning of internal must be carried out periodically to optimize light output. Cleaning Please read the instructions carefully which includes important frequency depends on the environment in which the fixture operates: damp, smoky or information about the installation, operation and maintenance.
- Page 4 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB Dimension: 296 x 271 x 140mm of the fixture or the previous one. Weight: 4.0kgs (LED-3082 RGB) 4. Try to use another DMX controller. 3.8kgs (LED-3084 RGB) 5.
- Page 5 7. DMX512 Connections 4. How toset the unit The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. 4.1Rear Panel 1 Display: To show the various menus and the selected functions LED: 2 DMX DMX input present 3 MASTER Master Mode Connect the fixture together in a “daisy chain”...
- Page 6 4.2 Main Function 6. DMX512 Configuration To select any functions, press MENU button until the required one is shown on the display. 1 & 3-CH modes: Select the function by ENTER button and the display will blink. Use DOWN and UP button to change the mode.
- Page 7 5.2 Easy Controller (by CA-8) Channel Mode The easy remote control is used only in master/slave mode. By connecting to the 1/4” microphone jack of the first unit, you will find that Press the MENU button up to when the is shown on the display.
- Page 8 button. 4.3 Home Position Adjust Press Enter button for about 5 seconds, “OPAN” will shown on the display, press ENTER LED display button to confirm, then use DOWN and UP button to adjust the home position (-127 - 127) of the motor.
