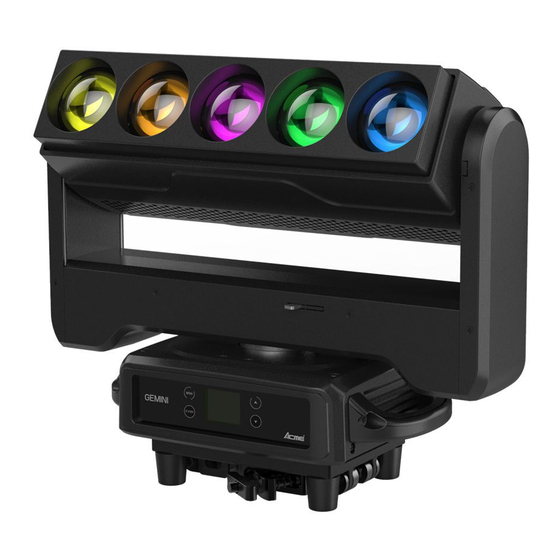

Summary of Contents for ACME Gemini

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 5 3. Control Panel ....................7 4. How To Set The Unit ..................7 4.1 Main Function ..................7 4.2 Home Position Adjustment ..............15 5. Control By Universal DMX Controller ............18 5.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 Installation: The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid vibration and slipping off during operation. Ensure that the trussing or area of installation must be able to hold 10 times the weight without any deformation. Always install a safety cable that can hold at least 12 times the weight of the fixture when installing.

  • Page 6: Technical Specifications

    2. Technical Specifications Power Voltage: 100-240V~ 50/60Hz Power Consumption: 1240W Light Source: 5x60W RGBW LED Beam Angle: 2.8°-31° Field Angle: 5°-46° Strobe: Light Source: 36x18W CW LED Beam Angle: 96° Field Angle: 116° Movement: Pan/Tilt movement: Infinite Fixation: Pan/Tilt Lock Dimmer/Shutter: Smooth dimming from 0-100%;...
  • Page 7 Features: With zoom and strobe function Beam mode: 5 LEDs can be controlled individually Strobe mode: 18 zone can be controlled individually Linear motorized zoom Outstanding color mixing effect 2 x fixed clamps for 50mm truss Dimensions/Weight: 500x223x420.4mm, 20.5kgs 19.7”x8.8”x16.6”in, 45.2lbs Photometric Diagram:...

  • Page 8: Control Panel

    3. Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.
  • Page 10 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, Mode4 ART Addr, DMX Channel Mode, No DMX Status, View DMX Value, Connect Option, Network, Art-Net Settings, sACN Settings or Artnet to DMX. DMX Address To select DMX Address, press the ENTER button to confirm.
  • Page 11 Network To select Network, press the ENTER button to confirm. Use the UP/DOWN button to select IP Address or Subnet Mask, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Art-Net Settings To select Art-Net Settings, press the ENTER button to confirm.
  • Page 12 P/T Feedback To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No (Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
  • Page 13 Display Settings To select Display Settings, press the ENTER button to confirm, use the UP/DOWN button to select Display Invert, Backlight Intensity, Temperature Unit or Language. Display Invert Select Display Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal display) or Yes (invert display), press the ENTER button to store.
  • Page 14 Manual Test To select Manual Test, press the ENTER button to confirm, use the UP/DOWN button to select Mode, Clear, Pan, Tilt, Pan Infinity, Tilt Infinity, RLED1, GLED1, BLED1, WLED1, RLED2,…...WLED5, LEDW1,……LEDW18, Intensity, Duration, Rate, Effects, Zoom, Strobe or Dimmer, press the ENTER button to confirm, use the UP/DOWN button to adjust the value, press the ENTER button to store.
  • Page 15 RDM UID Select RDM UID, press the ENTER button to confirm, RDM UID will show on the display, press the MENU button back to exit. Error Logs Select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture Errors or Reset Error Log, press the ENTER button to store.

  • Page 16: Home Position Adjustment

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 17 Frequency(Hz) Enter offset mode, Select Frequency(Hz), press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 1072 to 1327, press the ENTER button to store. Press the MENU button to exit. Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 18 Green1 Enter offset mode, Select Green1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit. Blue1 Enter offset mode, Select Blue1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button...

  • Page 19: Control By Universal Dmx Controller

    5. Control By Universal DMX Controller 5.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 20: Address Setting

    5.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 21 58 Channels (Mode 1): CHANNEL VALUE FUNCTION 000-255 0°540° PAN FINE 000-255 TILT 000-255 0°450° 000-255 TILT FINE PAN INFINITY 000-127 Pan Position 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Tilt Position 128-189 CW Rotation, Fast to Slow...
  • Page 22 WHITE3 000-255 0%100% RED4 000-255 0%100% GREEN4 000-255 0%100% BLUE4 000-255 0%100% WHITE4 000-255 0%100% RED5 000-255 0%100% GREEN5 000-255 0%100% BLUE5 000-255 0%100% WHITE5 000-255 0%100% LED WHITE1 000-255 0%100% LED WHITE2 000-255 0%100% LED WHITE3 000-255 0%100% LED WHITE4 000-255 0%100% LED WHITE5...
  • Page 23 LED WHITE14 000-255 0%100% LED WHITE15 000-255 0%100% LED WHITE16 000-255 0%100% LED WHITE17 000-255 0%100% LED WHITE18 000-255 0%100% PIXEL 000-004 Open 005-009 Pattern 1 010-014 Pattern 2 015-019 Pattern 3 020-024 Pattern 4 025-029 Pattern 5 030-034 Pattern 1+2 035-039 Pattern 2+3 040-044...
  • Page 24 175-179 Built-in Mode9 180-184 Built-in Mode10 185-189 Built-in Mode11 190-194 Built-in Mode12 195-199 Built-in Mode13 200-204 Built-in Mode14 205-209 Built-in Mode15 210-214 Built-in Mode16 215-219 Built-in Mode17 220-224 Built-in Mode18 225-229 Built-in Mode19 230-234 Built-in Mode20 235-239 Randomly Light Up a Pixel 240-244 Randomly Light Up two Pixels 245-255...
  • Page 25 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179 Open 180-201 Clockwise Rotation, Fast to Slow 202-207 Stop 208-229...
  • Page 26 248-255 Open DIMMER 000-255 0%100% 000-255 DIMMER FINE FUNCTION 000-029 No Function 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law 060-069 Dimmer Curve S 070-079 No Function 080-089 No Function 090-099 No Function 100-109 Led Frequency Setting Enable 110-119...
  • Page 27 194-255 CCW Rotation, Slow to Fast PAN/TILT SPEED 000-255 Fast to Slow RED ALL 000-255 0%100% GREEN ALL 000-255 0%100% BLUE ALL 000-255 0%100% WHITE ALL 000-255 0%100% CTO(8000K-2500K) Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031...
  • Page 28 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247...
  • Page 29 120-124 LEE 122-Fern Green 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179...
  • Page 30 130-134 Pattern 1+2+3+4+5 135-139 Built-in Mode1 140-144 Built-in Mode2 145-149 Built-in Mode3 150-154 Built-in Mode4 155-159 Built-in Mode5 160-164 Built-in Mode6 165-169 Built-in Mode7 170-174 Built-in Mode8 175-179 Built-in Mode9 180-184 Built-in Mode10 185-189 Built-in Mode11 190-194 Built-in Mode12 195-199 Built-in Mode13 200-204 Built-in Mode14...
  • Page 31 000-255 ZOOM FINE STROBE 000-007 Close 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER 000-255 0%100% DIMMER FINE 000-255 FUNCTION 000-029 No Function...
  • Page 32 000-255 0°450° 000-255 TILT FINE PAN INFINITY 000-127 Pan Position 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Tilt Position 128-189 CW Rotation, Fast to Slow 190-193 Stop 194-255 CCW Rotation, Slow to Fast PAN/TILT SPEED 000-255 Fast to Slow...
  • Page 33 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193...
  • Page 34 060-064 LEE 132-Medium Blue 065-069 LEE 200-Double CT Blue 070-074 LEE 161-State Blue 075-079 LEE 201-Full CT Blue 080-084 LEE 202-Half CT Blue 085-089 LEE 117-Steel Blue 090-094 LEE 353-Lighter Blue 095-099 LEE 118-Light Blue 100-104 LEE 116-Medium Blue Green 105-109 LEE 124-Dark Green 110-114...
  • Page 35 DIMMER 000-255 0%100% 000-255 DIMMER FINE INTENSITY 000-005 Blackout 006-255 Flash Intensity, minimum to maximum DURATION 000-255 Flash Duration, minimum to maximum RATE 000-005 No Flash 006-255 Flash Rate, Slow to Fast EFFECTS 000-005 No Effect 006-050 Ramp Up 051-100 Ramp Down 101-150 Ramp Up-Down...
  • Page 36 35+ Channels Mode (Controlled by DMX): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°450° 000-255 TILT FINE PAN INFINITY 000-127 Pan Position 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Tilt Position 128-189...
  • Page 37 LED WHITE12 000-255 0%100% LED WHITE13 000-255 0%100% LED WHITE14 000-255 0%100% LED WHITE15 000-255 0%100% LED WHITE16 000-255 0%100% LED WHITE17 000-255 0%100% LED WHITE18 000-255 0%100% INTENSITY 000-005 Blackout 006-255 Flash Intensity, minimum to maximum DURATION 000-255 Flash Duration, minimum to maximum RATE 000-005 No Flash...
  • Page 38 000-255 0%100% 000-255 DIMMER FINE FUNCTION 000-029 No Function 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law 060-069 Dimmer Curve S 070-079 No Function 080-089 No Function 090-099 No Function 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-139...
  • Page 39 000-255 0%100% GREEN3 000-255 0%100% BLUE3 000-255 0%100% WHITE3 000-255 0%100% RED4 000-255 0%100% GREEN4 000-255 0%100% BLUE4 000-255 0%100% WHITE4 000-255 0%100% RED5 000-255 0%100% GREEN5 000-255 0%100% BLUE5 000-255 0%100% WHITE5 000-255 0%100% 27 Channels (Mode 5): CHANNEL VALUE FUNCTION 000-255...
  • Page 40 194-255 CCW Rotation, Slow to Fast PAN/TILT SPEED 000-255 Fast to Slow RED ALL 000-255 0%100% GREEN ALL 000-255 0%100% BLUE ALL 000-255 0%100% WHITE ALL 000-255 0%100% CTO(8000K-2500K) Null 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K 023-027 7500K 028-031...
  • Page 41 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243 2700K 244-247...
  • Page 42 120-124 LEE 122-Fern Green 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red 175-179...
  • Page 43 130-134 Pattern 1+2+3+4+5 135-139 Built-in Mode1 140-144 Built-in Mode2 145-149 Built-in Mode3 150-154 Built-in Mode4 155-159 Built-in Mode5 160-164 Built-in Mode6 165-169 Built-in Mode7 170-174 Built-in Mode8 175-179 Built-in Mode9 180-184 Built-in Mode10 185-189 Built-in Mode11 190-194 Built-in Mode12 195-199 Built-in Mode13 200-204 Built-in Mode14...
  • Page 44 005-009 Show 1 010-014 Show 2 015-019 Show 3 020-024 Show 4 025-029 Show 5 030-034 Show 6 035-039 Show 7 040-044 Show 8 045-049 Show 9 050-054 Show 10 055-059 Show 11 060-064 Show 12 065-069 Show 13 070-074 Show 14 075-079 Show 15...
  • Page 45 240-244 Randomly Light Up two Pixels 245-255 No Function PIXEL SPEED 000-127 No Function 128-189 Fast to Slow 190-193 Stop 194-255 Slow to Fast ZOOM 000-255 46°2.8° ZOOM FINE 000-255 STROBE 000-007 Close 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181...
  • Page 46 70 Channels (Mode 6): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°450° 000-255 TILT FINE PAN INFINITY 000-127 Pan Position 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Tilt Position 128-189 CW Rotation, Fast to Slow...
  • Page 47 RED2 000-255 0%100% GREEN2 000-255 0%100% BLUE2 000-255 0%100% WHITE2 000-255 0%100% STROBE2 000-007 Close 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER2...
  • Page 48 RED4 000-255 0%100% GREEN4 000-255 0%100% BLUE4 000-255 0%100% WHITE4 000-255 0%100% STROBE4 000-007 Close 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER4...
  • Page 49 LED WHITE1 000-255 0%100% LED WHITE2 000-255 0%100% LED WHITE3 000-255 0%100% LED WHITE4 000-255 0%100% LED WHITE5 000-255 0%100% LED WHITE6 000-255 0%100% LED WHITE7 000-255 0%100% LED WHITE8 000-255 0%100% LED WHITE9 000-255 0%100% LED WHITE10 000-255 0%100% LED WHITE11 000-255 0%100%...
  • Page 50 035-039 Pattern 2+3 040-044 Pattern 3+4 045-049 Pattern 4+5 050-054 Pattern 1+3 055-059 Pattern 2+4 060-064 Pattern 3+5 065-069 Pattern 1+4 070-074 Pattern 2+5 075-079 Pattern 1+2+5 080-084 Pattern 1+2+4 085-089 Pattern 1+2+3 090-094 Pattern 2+3+4 095-099 Pattern 3+4+5 100-104 Pattern 1+4+5 105-109 Pattern 1+2+5...
  • Page 51 194-255 Slow to Fast BACKGROUND COLOR 000-009 Open 010-014 LEE 790-Moroccan Pink 015-019 LEE 157-Pink 020-024 LEE 332-Special Rose Pink 025-029 LEE 328-Follies Pink 030-034 LEE 345-Fuchsia Pink 035-039 LEE 194-Surprise Pink 040-044 LEE 181-Congo Blue 045-049 LEE 071-Tokyo Blue 050-054 LEE 120-Deep Blue 055-059...
  • Page 52 000-005 Blackout 006-255 Flash Intensity, minimum to maximum DURATION 000-255 Flash Duration, minimum to maximum RATE 000-005 No Flash 006-255 Flash Rate, Slow to Fast EFFECTS 000-005 No Effect 006-050 Ramp Up 051-100 Ramp Down 101-150 Ramp Up-Down 151-200 Lightning 201-255 Random ZOOM...
  • Page 53 55 Channels (Mode 7): CHANNEL VALUE FUNCTION 000-255 0°540° 000-255 PAN FINE TILT 000-255 0°450° 000-255 TILT FINE PAN INFINITY 000-127 Pan Position 128-189 CCW Rotation, Fast to Slow 190-193 Stop 194-255 CW Rotation, Slow to Fast TILT INFINITY 000-127 Tilt Position 128-189 CW Rotation, Fast to Slow...
  • Page 54 WHITE3 000-255 0%100% RED4 000-255 0%100% GREEN4 000-255 0%100% BLUE4 000-255 0%100% WHITE4 000-255 0%100% RED5 000-255 0%100% GREEN5 000-255 0%100% BLUE5 000-255 0%100% WHITE5 000-255 0%100% LED WHITE1 000-255 0%100% LED WHITE2 000-255 0%100% LED WHITE3 000-255 0%100% LED WHITE4 000-255 0%100% LED WHITE5...
  • Page 55 LED WHITE14 000-255 0%100% LED WHITE15 000-255 0%100% LED WHITE16 000-255 0%100% LED WHITE17 000-255 0%100% LED WHITE18 000-255 0%100% INTENSITY 000-005 Blackout 006-255 Flash Intensity, minimum to maximum DURATION 000-255 Flash Duration, minimum to maximum RATE 000-005 No Flash 006-255 Flash Rate, Slow to Fast EFFECTS...

  • Page 56: Error Information

    030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law 050-059 Dimmer Curve Inv SQ Law 060-069 Dimmer Curve S 070-079 No Function 080-089 No Function 090-099 No Function 100-109 Led Frequency Setting Enable 110-119 Led Frequency Setting Disable 120-139 No Function 140-149 Pan/Tilt Reset 150-159...
  • Page 57 4. Tilt Reset Error Check whether the position of the tilt where the magnet is installed falls off or is damaged. Check whether there are obstacles in the tilt operating range. Check whether the Hall element on the tilt is damaged. Check whether the lead connecting the Hall element on the tilt and the PCB board is in poor contact or disconnected.
  • Page 58 10. BaseFan1/2 Too Slow Check whether the fan is out of order. Check whether there are obstacles in the fan operating range. 11. BaseFan1/2 Too Fast Check whether the fan is out of order. Check whether the fan circuit on the motherboard breaks down. 12.

  • Page 59: Troubleshooting

    The position of each fan of the fixture: 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work 1.

  • Page 60: Fixture Cleaning

    C. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB might be broken. 2. The motor’s drive IC on the PCB might be out of condition. 8. Fixture Cleaning It is absolutely essential that the fixture is kept clean to ensure the maximum light-output and allow the fixture to function reliably throughout its life.
