4. USING DOOR PANEL

4.1 USING TOUCH PANEL

You may use the functions of the device by touching the screen. When the screen does not sense you at the front the
waiting screen GUI of the device is shown. When you come close to the panel the main screen GUI appears.
4.1.1 WAITING SCREEN

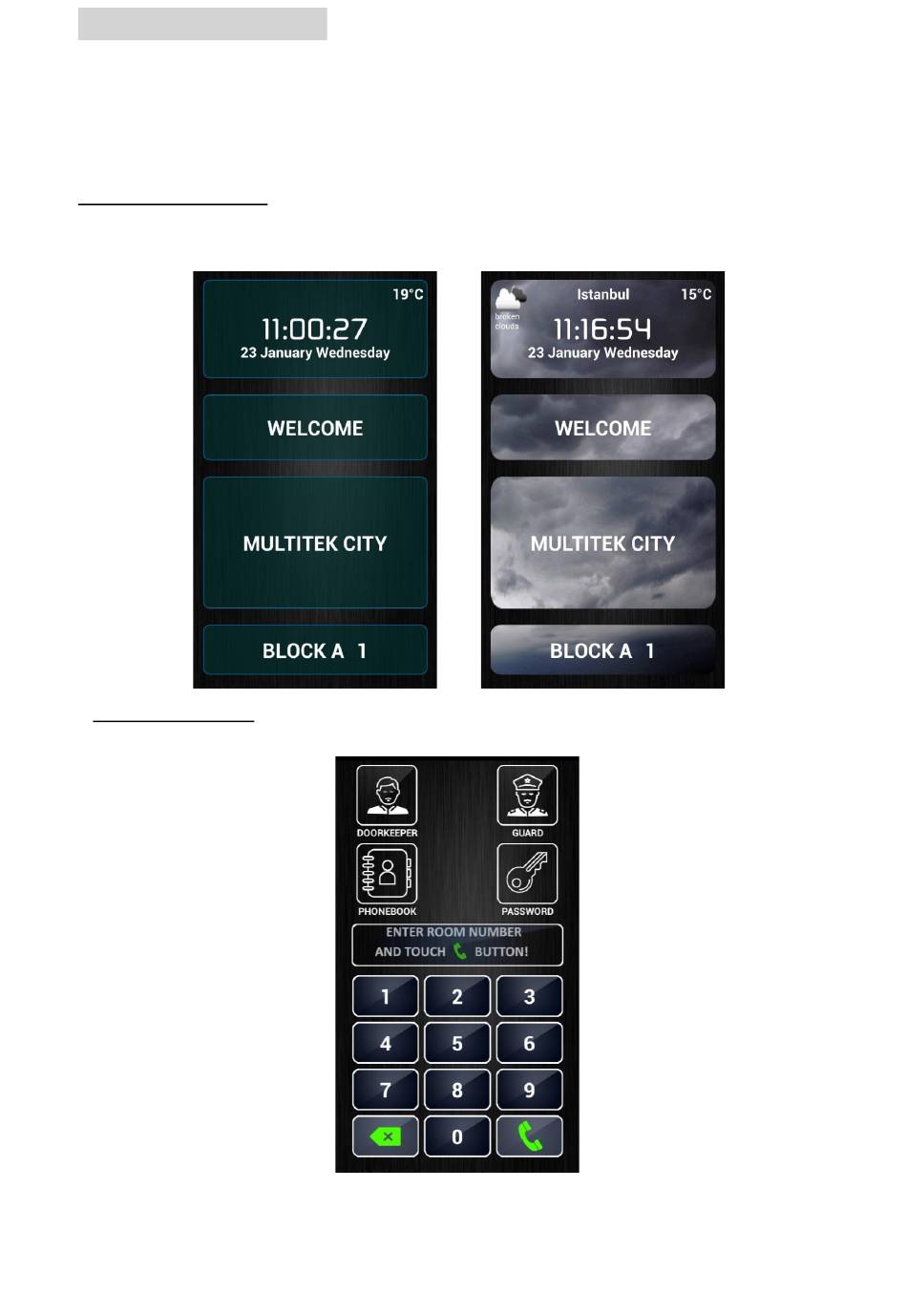

The following pictures show the sample of the waiting screen. The second sample waiting screen shows also the weather
condition if the intercom network is connected to the internet. The name of the block, name of the apartment are
entered through settings.
4.1.2 MAIN SCREEN
When you come closer to the panel the main screen appears:
The main screen has icons for calling DOORKEEPER, GUARD, entering door opening PASSWORD, PHONEBOOK and
KEYPAD for dialing the room number. If the screen is not touched for 30 seconds the waiting screen appears.
11
