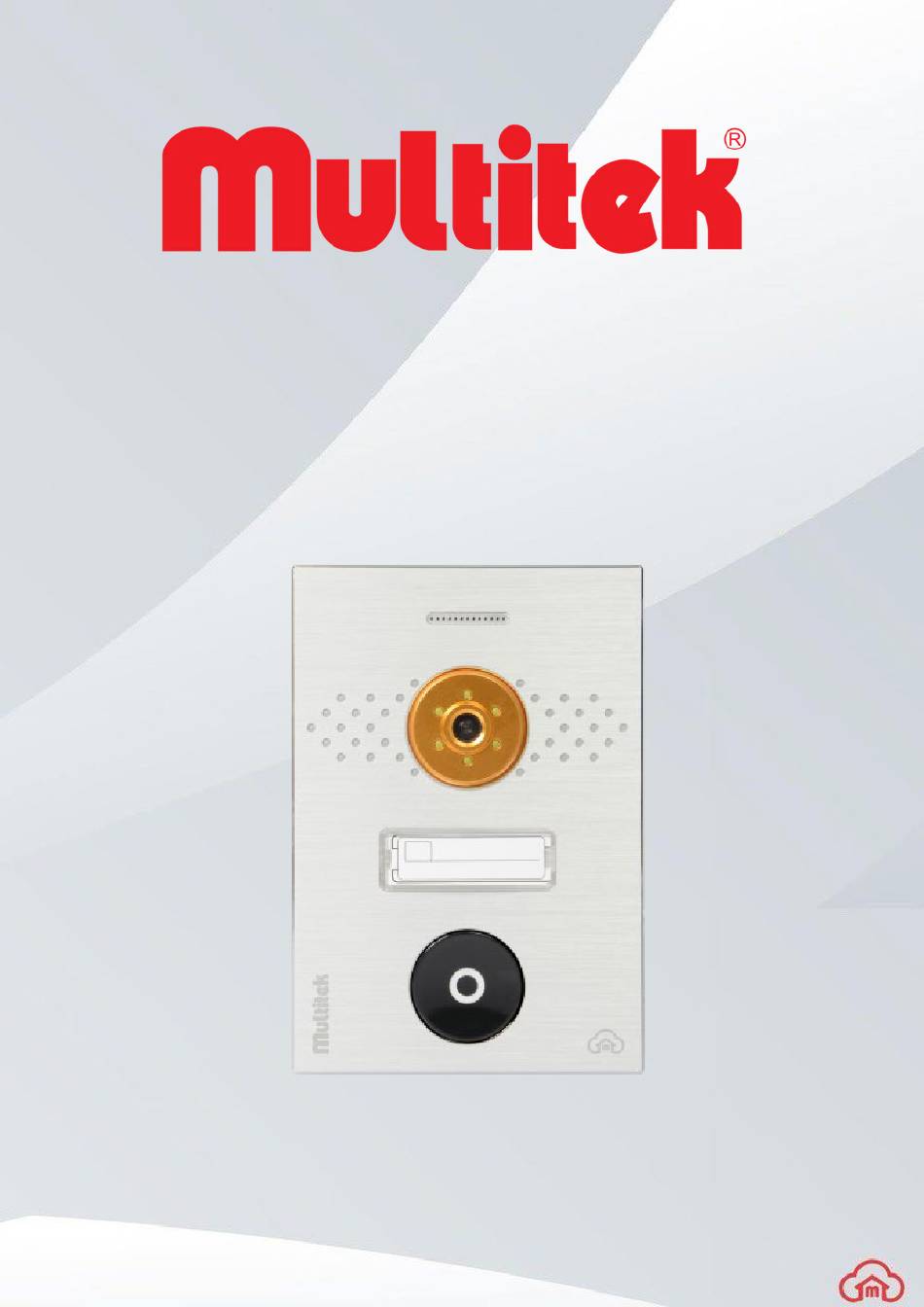

- Page 1 MULTITEK CLOUD DIP01 CB PANEL USER MANUEL...
- Page 3 CONTENTS 1. DEVICE TECHNICAL SPECIFICATIONS 1.1 Box Contents and General Device Features 1.2 DIP01CB Single Button Door Panel Technical Specifications 1.3 Cable Connection 2. CONNECTION AND INSTALLATION DIAGRAM 3. DEFINITION AS AN INTERIOR DOOR 4. ERROR - STATUS NOTIFICATIONS 5. APPLICATION INSTALLATION 6.
- Page 4 1. DEVICE TECHNICAL SPECIFICATIONS 1.1.1 BOX CONTENTS The following items are included in the box. 1 x Door Panel 1 x Hanging Bracket 8 x Anchor and 1 x User Manuel Screw Set...
- Page 5 1. DEVICE TECHNICAL SPECIFICATIONS 1.1.2 DEVICE GENERAL FEATURES Speaker 2MP-5MP Camera 120° Wide Angle Surface Mounting Color Touch Aluminum Button Body...
- Page 6 1. DEVICE TECHNICAL SPECIFICATIONS 1.2 DIP01CB SINGLE BUTTON DOOR PANEL TECHNICAL SPECIFICATIONS Panel Aluminum Panel Camera 120-degree angled 2MP-5MP Camera Touch Feature Capacitive Touch Single Button 1.5GHz Processor, 1GB RAM, 4GB Flash Operating System Android TCP/IP Transmission Codec Sound G.711, Video H.264 Network Connection Ethernet (PoE) Operating Voltage...
- Page 7 DIP01CB...
- Page 8 2. CONNECTION AND INSTALLATION DIAGRAM - Plan the installation of the door panel's camera at eye level (approximately 150 cm). Attach the hanging bracket in the center (1). - Remove the two screws located at the bottom of the device. Connect the RJ45 plug coming from the wall to the door panel (2), then slide the door panel onto the hanging bracket (3).
- Page 9 3. DEFINITION AS AN INTERIOR DOOR - A maximum of 4 interior doors can be assigned to a single apartment monitor. The interior door assignment process is done in 2 steps. Figure 2: Dip01 CB Figure 3: Room Monitor Step 1: Turn off and then turn on the power of the interior door panel, and wait until the button color turns Turquoise.
- Page 10 4. ERROR - STATUS NOTIFICATIONS 1. If the button color is Green: The interior door panel's LED light flashing green indicates that the panel is being powered 2. If the button color is Blue: The interior door panel's LED light staying solid blue indicates that the panel is ready for use. 3.
- Page 11 5. APPLICATION INSTALLATION Download and install the Multitek Cloud Application. Scan the QR code below and follow the instructions to start the user registration. Press the Install button to download the application. +90 533 345 66 77 www.multitek.com.tr multitek_elektronik MultitekAS...
- Page 12 5. APPLICATION INSTALLATION After installing the application, log in; if you don't have an account, register. Once you log into your account, click on the "Add Device" button on the homepage.
- Page 13 6. DEVICE ADDITION In the screen that appears, select "Villa." In the next screen, add a new location and proceed. Then, scan the QR code and continue with the process.
- Page 14 6. DEVICE ADDITION Click on "Create New Location" and enter the name for the new location in the screen that appears, then proceed. Scan the QR code.
- Page 15 6. DEVICE ADDITION After scanning the QR code, click the "Send" button on the page that appears. On the next page, click the "Return to Homepage" button to complete the device addition process. TARİH: 24.02.2027 REVİZYON TARİHİ: REVİZYON NO: DOKÜMAN NO: MLŞ14-60 SAYFA NO: 15/15...
