CAMERA ANGLE ADJUSTMENT:

CAMERA ANGLE ADJUSTMENT:
•

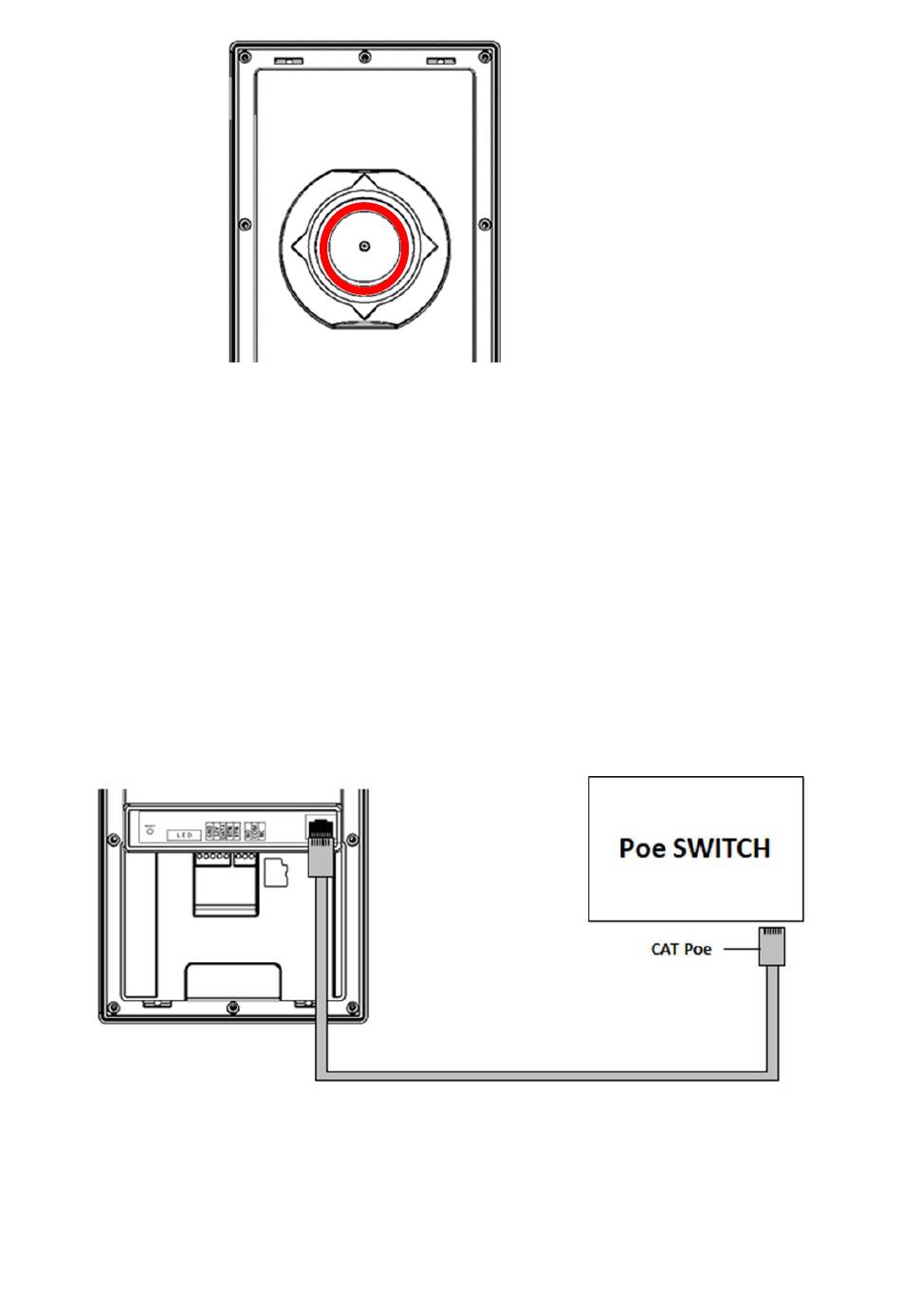

To change the camera angle, loose the screw shown inside of the RED circle.
•
Then, the camera becomes loose to change the directions.
•
When you find the proper position, tight the screw to place the camera.

NETWORK CONNECTION:

Connect CAT6 cable coming from PoE switch to Ethernet socket. This cable enables power of the device and network
connection between the network and the device.
Connect door opener device cables to the point where you see the lock icon. These two connection cables lead to a
short circuit when the door release is operated.
