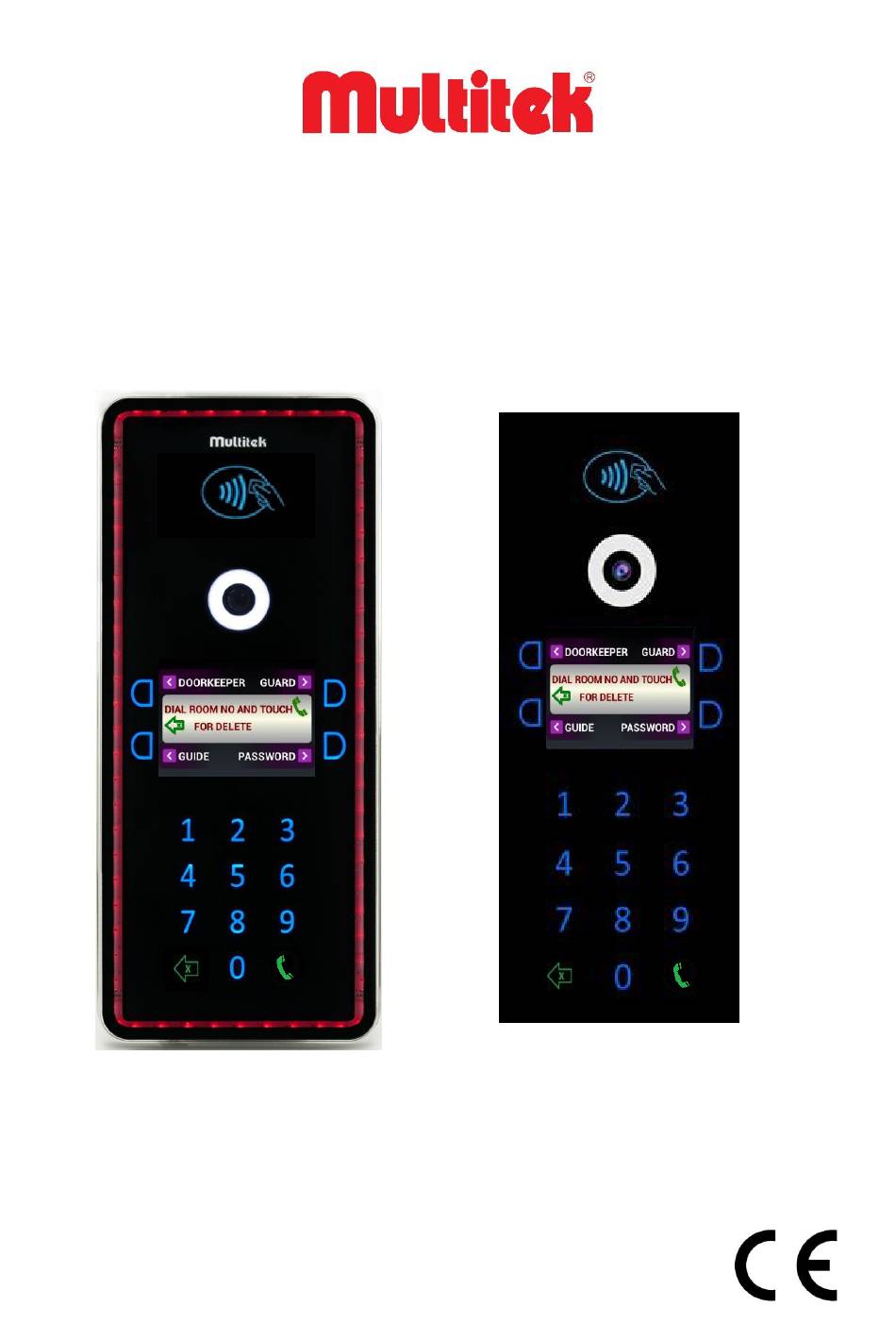

DIP40 IP INTERCOM DOORPHONE
USER MANUAL
Multitek
It obeys the rules of AEEE regulations.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIP40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multitek DIP40

Summary of Contents for Multitek DIP40

  • Page 1 DIP40 IP INTERCOM DOORPHONE USER MANUAL Multitek It obeys the rules of AEEE regulations.
  • Page 2 DIP 40 INTERCOM DOORPHONE USER MANUAL Thank you for choosing access DIP40 intercom doorphone. This user manual was prepared for using the device more efficiently. DIP 40 INTERCOM DOORPHONE HAS WARRANTY FOR 2 YEARS AGAINST MANUFACTURING DEFECTS. Multitek has rights to change the features of the device given in this document prior given any information.
  • Page 3 2.TECHNICAL SPECIFICATIONS OF THE DEVICE ..............6 2.1. Optional Features ...................... 6 2.2. Appearance ....................... 7 2.2.1. Installation on Wall ..................... 8 2.2.2. Back Side of DIP40 ....................9 2.2.3. Camera Angle Adjustment ................. 10 2.2.4. Network Connection ..................10 3. USER FEATURES ......................11 3.1.
  • Page 4 7. UPDATING DIP40 DOORPANEL SOFTWARE ..............39 8. USING OF DIP40 DOORPANEL ..................40 8.1. USING DIP40 AS SITE ENTRANCE DOORPANEL ............40 8.1.1. Programming DIP40 Doorpanel as Site Doorpanel ..........40 8.1.2. Calling Rooms from Site Door Panel ..............40 8.2.
  • Page 5 1. SAFETY WARNINGS For your own and the device safety, you should obey the security warnings; 1. Read the user manual carefully. 2. Read the safety warnings carefully. 3. Remarks about Transport, Shipment and Preservation  During transport and shipment keep the product with its case. The case will protect the product against the physical damages.
  • Page 6 2.TECHNICAL SPECIFICATIONS OF THE DEVICE Screen 4” TFT LCD, Resolution 320x240, LED backlight Camera 2.0 Mpixel CMOS, adjustable angle, photo cell, night LEDS 1.5GHz, RAM 1GB, FLASH 4 GB Input TF cart, USB, Ethernet Operating System Android Transmission TCP/IP, SIP protocol Codec Voice G.711, video H.264 Network...
  • Page 7 2.2. Appearance Multitek SPEAKER PROXIMITY / MIFARE READER CAMERA NIGHT VISION LEDS TOUCH FUNCTION BUTTONS 4” TFT LCD SCREEN (4 pcs) TOUCH KEY PAD LIGHT SENSOR MICROPHONE...
  • Page 8 Use RJ45 cable to connect the device to the network.  Place DIP40 to the wall mount aparatus by using 4 pieces holding tins.  Use 4 pieces 2.9mmx13mm screws given in the giftbox to fix DIP40 and the wall mount aparatus.
  • Page 9 2.2.2. Back Side of DIP40 CAMERA ANGLE ADJUSTMENT ETHERNET DOOR OPENER LED FRAME CONNECTION CONTACTS...
  • Page 10 2.2.3. Camera Angle Adjustment Camera Angle Adjustment:  To change the camera angle, loose the screw shown inside of the RED circle.  Then, the camera becomes loose to change the directions.  When you find the proper position, tight the screw to place the camera. 2.2.4.
  • Page 11 3. USER FEATURES 3.1. Touch Buttons on The Sides of The Screen The functions of the buttons are shown on the screen icons. You may activate those functions by touching the corresponding buttons on the sides of LCD panel. The buttons may be touched in during any screen appearance.
  • Page 12 If DOORKEEPER 841 is called: 3.2.2. Phonebook Feature The phone book is a list of room numbers and their names entered by the phone book program. It is used to search the names living in the apartment and call the rooms by touching a button. To start using the phone book feature, please touch the phone book button.
  • Page 13 3.2.3. To Enter Door Password, Open the Door Each room in a block may have 4-digit passwords in order to open the main enterence door. (Please see the section 7 of this manual to enter a room password.) When the user touches OPEN DOOR WITH PASSWORD button the following screen is shown. ENTER PASSWORD The user enters his 4-digit password.
  • Page 14 PASSWORD ACTIVE or PASSWORD PASIVE options are selected from the keys to the right of the screen. Pressing the SAVE key to the left of the screen will perform the desired operation. If you want to cancel the operation, Press the CANCEL button on the left of the screen. When the password is active, the following screen opens when the password key is pressed on the login screen.
  • Page 15 It is also possible to call following numbers from the device by using the keypad: 841-849 Doorkeper numbers of the block that the doorpanel DIP40 belongs. 851-859 Block guards’ number of the block that the doorpanel DIP40 belongs. 901-919 site numbers-block 99.
  • Page 16 4. DEVICE PROGRAMMING It is possible to program some parameters of the DIP40 doorpanel by entering to the programming mode of the device. To enter the programming mode, please touch then dial from the keypad. The following screen appears. The page has four icons;...
  • Page 17 005 MULTITEK When the three-digit room number is entered the corresponding name appears on the screen. (if there is any). For example, when 005 is entered, since MULTITEK was entered for the number 005 previously, the screen shows 005 MULTITEK.
  • Page 18 4.1.1.2. Delete Phonebook To delete all recorded room numbers from the phone book. DELETE PHONEBOOK: DELETE PHONEBOOK clears all room numbers and names entered. When DELETE PHONE BOOK is touched the message appears as “ARE YOU SURE?” ARE YOU SURE? If CANCEL is touched the previous page appears.
  • Page 19 . After entering the name, the user makes . After making ENT, the new message appears as “TO SAVE TOUCH SAVE BUTTON” The following pages show the sequence of the operation for the name MULTITEK. TO SAVE MULTITEK TOUCH SAVE BUTTON...
  • Page 20 If the SAVE button is touched the room number and the name is stored. TO SAVE TOUCH SAVE BUTTON If CANCEL is touched the pages become the previous page. TO SAVE TOUCH SAVE BUTTON 4.1.2.2. Add Proximity Card This feature is used to assign some proximity cards to a room to open the main door by showing the proximity card to the device.
  • Page 21 If the number of cards already assigned is 5 the following message appears immediately for 3 seconds and the previous screen appears. ALL CARDS RECORDED ALREADY.NO MORE To register the card, put card close to the proximity reader located at the speaker hole. If the card is not read in 20 secs, the message “NO CARD “appears and the page becomes the previous page.
  • Page 22 If the user touches OK the following screens are shown (if number of the recorded cards are equal or less than DO YOU WANT TO RECORD ANOTHER CARD? PLEASE SHOW THE CARD IN 20 SEC If this is the the fifth card recorded the following message appears (immediately for 3 seconds) ALL CARDS RECORDED ALREADY.NO MORE 4.1.2.3.
  • Page 23 After entering the room number (or 800 to delete all cards assigened to the door) and making , the message appears as “ALL CARDS WILL BE DELETED? “. (Example is for the room number 007.) ALL CARDS WILL BE DELETED? If OK is touched ALL cards belonged to that room is deleted.
  • Page 24 Apartment name: SILVERSTONE’S Apartment number: 001 Block & Door Number: A The user may change the apartment name, number and block&door number by entering the program 4.1.3.1. Building Name & No When APT.NAME & NO icon is touched the following pages appears with the message “ENTER THE APARTMENT NUMBER AND PRESS OK “...
  • Page 25 When is touched another page with the message “ENTER THE APARTMENT NAME AND PRESS OK“ appears. The user enters the apartment name and makes .The picture is seen for SILVERSTONE’S name. ENTER THE APARMENT SILVERSTONE’S NAME AND PRESS OK Then, is touched and SAVE follows it.
  • Page 26 When “CHANGE BLOCK PASSWORD” is touched, the next page is seen as “ENTER THE OLD PASSWORD AND PRESS OK “. The default block password is 0000. 0000 ENTER THE OLD PASSWORD OLD PASSWORD AND PRESS OK PRESS OK When you enter the old password, and make you see the new message as “ENTER THE NEW PASSWORD AND PRESS OK “.
  • Page 27 If CANCEL is entered the previous page is shown. Note: If you forget the BLOCK PASSWORD you should re-install the device program with the TF card and re- program some parameters. 4.2 Parameters The parameters section is used to program some functions of the door panel. This section enables to programm;...
  • Page 28 The colors are selected by touching the related buttons. The selected/ touch colors are thicked on the small boxes. When the color is changed the result is immediatelly seen on the key colors. The following page shows three selected colors. BACK button brings the previous page. 4.2.1.2.
  • Page 29 The selected language will be saved or canceled by the buttons on the left. 4.2.3. Door Release Duration When the NEXT PAGE is touched the following page appears. Door release duration is used to program the door release duration of the panel. The duration as default is 1sec.
  • Page 30 If it is not saved; 4.2.4. Door Direction Tapping the relay position button opens the screen where the relay can be selected on or off. NORMALLY ON if desired in open position, NORMALLY OFF if desired in closed position 4.2.5. Door Password Operations In this section, the “DOOR PASSWORD OPERATİONS”...
  • Page 31 ARE YOU SURE TO ARE YOU SURE TO DELETE DELETE ALL ALL PASSWORDS? PASSWORDS? TO THE ROOM The user selects CANCEL or OK in the next step. If CANCEL is selected, nothing is done; ARE YOU SURE TO DELETE ALL PASSWORDS? ARE YOU SURE TO DELETE ALL PASSWORDS? TO THE ROOM...
  • Page 32 If a camera with a different RTSP address is used, camera link is sed to the doorpanel via Technical Service Management Program. (Please contact your Multitek technican.) 4.3 System Setup SYSTEM SETUP is used to enter some parameters related with the doorpanel connection.
  • Page 33 The page has the following icons to programm; SYSTEM SUMMARY: It shows the block number, door panel, door release durations and if there is Ethernet connection. The firmware and apk release numbers are also seen here. IP CHANGE (IMPORTANT PARAMETERS CHANGE): It is used to program the block number and door number of the door panel.
  • Page 34 The programmer enters the door number between 01-19. (It corresponds the door panel catalogue numbers 801-819). And OK is touched. The next page comes with the message “TO SAVE TOUCH SAVE BUTTON”. Example: Door number 03 TO SAVE TOUCH SAVE BUTTON If the programmer wants to save the block and door number of the door panel, the SAVE button is touched.
  • Page 35 When “CHANGE SYSTEM PASSWORD”is touched the next page is seen as “ENTER THE OLD PASSWORD AND PRESS OK “. The default block password is 0000.If the wrong SYSTEM PASSWORD is entered the page does not change. ENTER THE OLD PASSWORD 0000 AND PRESS OK OLD PASSWORD...
  • Page 36 If CANCEL is entered the previous page is shown. Note: If you forget the SYSTEM PASSWORD you should re-install the device program with the TF card and re- program some parameters. 5. MANUEL FOR ENTERING THE ROOM PASSWORD TO OPEN THE DOOR Each room in an apartment may have a doorpassword to open the door release.
  • Page 37 Please note that if there are more than one enterence doors in a block, and Multitek GUV100 guard console is not used in the facilities, then the proximity cards should be assigned for each door seperately.
  • Page 38  By computer: A computer is connected to block network, where DIP40 is installed. Service management software designed by Multitek is opened. Phone book is uploaded by entering the IP address of the door panel that will be updated. ...
  • Page 39 Main Page icon is clicked with the connected mouse. Now the device is running on Android pages. Apk file on the micro SD card is installed to the device. File with Multitek icon is clicked and intercom functionality is reset.
  • Page 40 So that coming guests tap block number and room number to call the related room from the main enterence door panel. DIP40 can also be used for these kinds of applications. The following steps should be followed to enabled these functionalities: 8.1.1.
  • Page 41 If there is a problem about the time, the root cause can be found from BLOCK 1 DOOR 1 panel. 8.4 VOLUME LEVEL SETUP ON THE DOOR PANEL Sound level of DIP40 is adjustable, it can be increased or decreased. In order to apply this adjustment, door panel must be in the programming mode.
