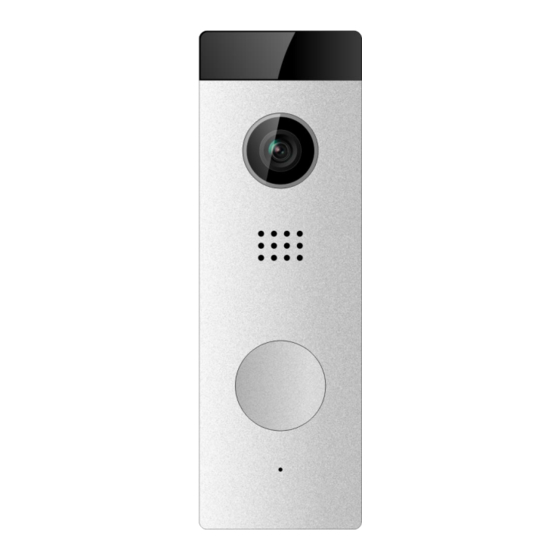

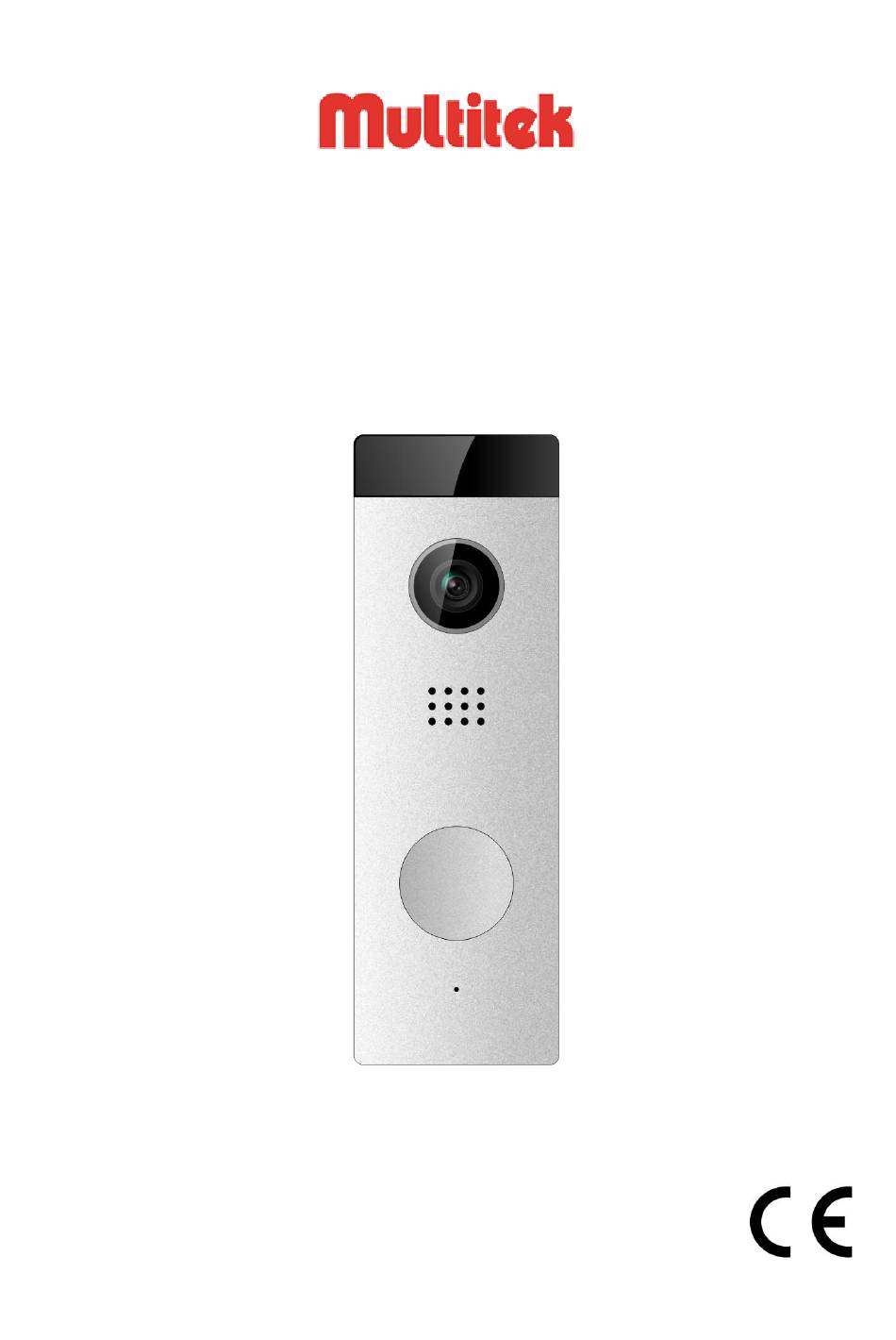

- Page 1 LIP 03 LINUX DOOR STATION USER MANUAL obeys the rules of AEEE regulations.
- Page 2 LIP 03 LINUX DOOR STATION USER MANUAL Thank you for choosing LIP 03 linux door station. This user manual was prepared for using the device more efficiently. LIP 03 LINUX DOOR STATION HAS WARRANTY FOR 2 YEARS AGAINST MANUFACTURING DEFECTS.
- Page 3 SAFETY WARNINGS For your own and the device safety, you should obey the security warnings; Read the user manual carefully. Read the safety warnings carefully. Remarks about Transport, Shipment and Preservation During transport and shipment keep the product with its case. The case will protect the product against the physical damages.
- Page 4 TABLE OF CONTENTS NAME AND FUNCTION OF EACH PART ...................... 5 1.1 Front and Rear Part……………………………………………………………………………….………….…………………………..…..5 FEATURES ……………………… .......................... 6 PACKING CONTENTS ........................... 6 INSTALLATION ……………………… ........................7 SPECIFICATIONS ............................7...
- Page 5 NAME AND FUNCTION OF EACH PART 1.1 Front and Rear Part Part Name 1 LED for night vision 2 Camera 3 Speaker 4 Call button 5 Microphone 6 Wires for electronic lock 7 Wires for Monitor...
- Page 6 FEATURES Wide Angle color Camera White LED for night vision 4 Wires in polarity Surface mounted Door lock release 3. PACKING CONTENTS...
- Page 7 4. INSTALLATION . SPECIFICATIONS Wiring 4 Wire Monitor/2 Wire Electronic lock Lighting LED for night vision Angle ° Weight(g) With bracket & hood cover 198 g Operation temperature (-40) ~ (+50) °C Dimensions(mm) 124 (H)*40(W)*25(D) DATE: 30.12.2019 REVISION DATE: REVISION NO: DOCUMENT NO: MLŞ14- 110/2 PAGE NO: 7/7...
