7.3

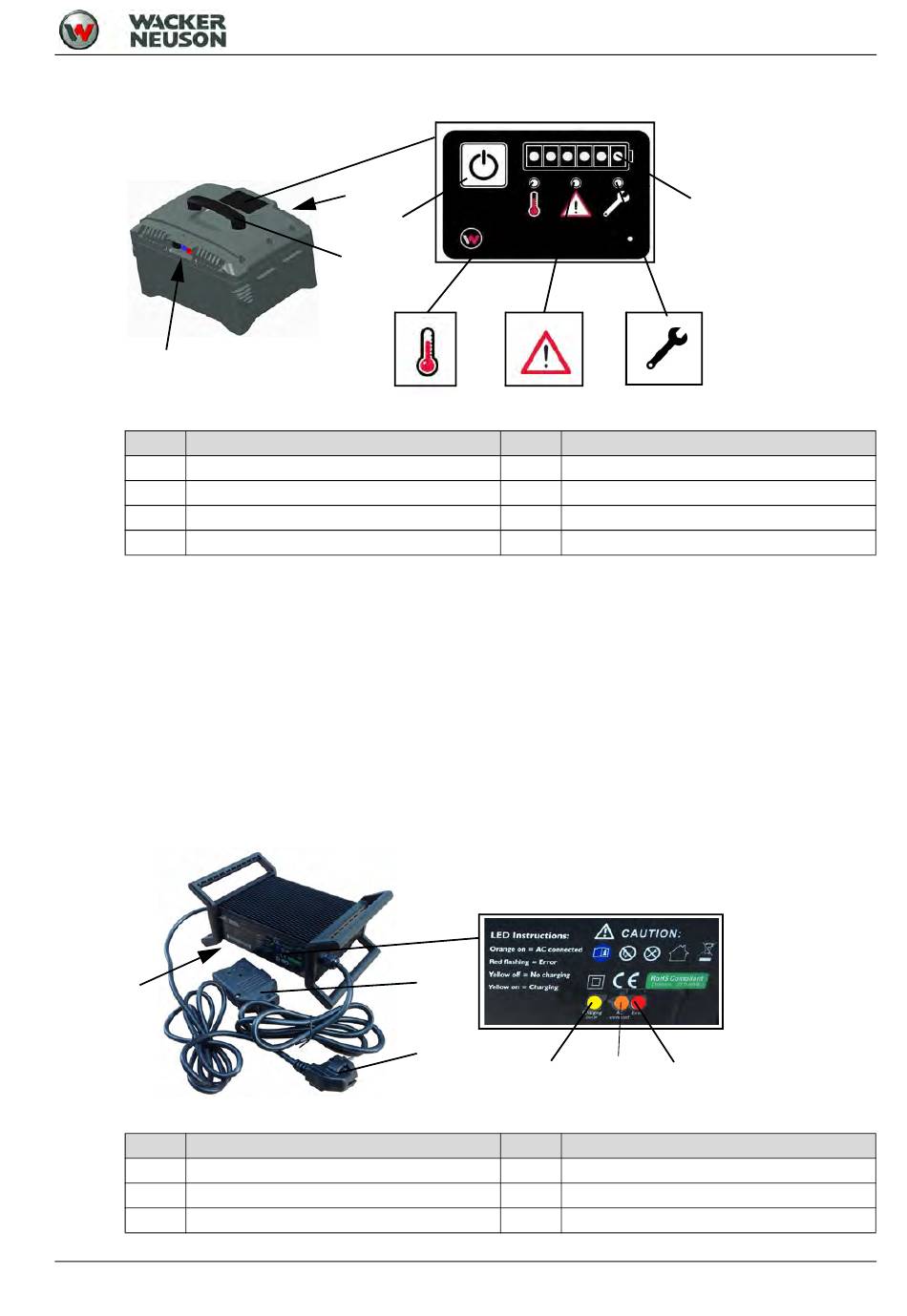

Components and operator's controls of the rechargeable battery (optional)

6
Item Designation
1 Start button on/off
2 Display – battery charge state
3 Service indicator
4 Fault indication
Display - battery charge state
The display uses six LEDs to indicate the charge situation of rechargeable battery.
Service indicator
If the LED illuminates, contact the service department of the Wacker Neuson contact partner.
Temperature display
The LED illuminates if the rechargeable battery has reached a temperature that is too high or too low.
Fault indication
The LED illuminates if there is a fault.
7.4

Components and operator's controls of the battery charger (optional)

6
Item Designation
1 LED charge indicator
2 LED operating indicator
3 LED fault indicator
100_0202_cp_0014.fm
8
1
7
4
5
Item
4
5
Item
7 Components and operator's controls
2
3
Designation
5 Temperature display
6 Connection
7 Handle
8 Nameplate
3
1
2
Designation
4 Power cable of the rechargeable battery
5 Power cable
6 Nameplate
