Summary of Contents for Wacker Neuson DPU 2440F WGB

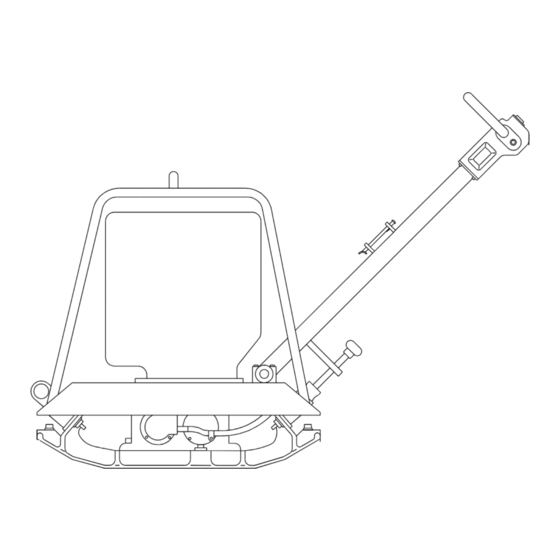

- Page 1 VIBRATORY PLATE DPU 2440F WGB 0201436en - 10.2002 0007877 101 Operator´s Manual...
-
Page 3: H00396Gb
CONTENTS Type Item no. DPU 2440F WGB 0007877 ... H00396GB... -
Page 5: Foreword
FOREWORD Foreword For your own safety and protection from bodily injuries, carefully read, understand and follow the safety instruc- tions in this manual. Please operate and maintain your Wacker machine in accordance with the instructions in this manual. Your Wacker machine will reward your attention by giving trouble-free operation and a high degree of availability. Defective machine parts are to be replaced as soon as possible. -
Page 6: Table Of Contents
TABLE OF CONTENTS FOREWORD SAFETY INSTRUCTIONS General instructions Operation Safety checks Maintenance Transport Maintenance checks TECHNICAL DATA DESCRIPTION Field of application Dimensions Max. admissible inclination MAINTENANCE Maintenance schedule Service instructions Hydraulic control Mounting instruction MOTOR Starting operating Maintenance EC - CONFORMITY-CERTIFICATE 0201272GBIVZ.GB.fm... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE USE OF VIBRATORY PLATES WITH COMBUSTION ENGINES General instructions Vibratory plates may only be operated by persons who * are at least 18 years of age * are physically and mentally fit for this job * have been instructed in guiding vibratory plates and proved their ability for the job to the employer * may be expected to carry out the job they are charged with carefully. -
Page 8: Safety Checks
SAFETY INSTRUCTIONS Make sure the soil or subsoil to be compacted has a high enough load carrying capacity. Use appropriate protective clothing while working or while carrying out maintenance work. When traveling backwards the operator has to guide the vibration plate laterally by its guide handle so that he will not be squeezed between the handle and a possible obstacle. -
Page 9: Technical Data
TECHNICAL DATA DPU 2440F WGB Item no. 0007877 ... Lowest working height Size of base plate (width x length) 400 x 700 Operating weight Power transmission From drive engine via centrifugal clutch and V-belts direct to exciter Exciter Vibrations (Hz): approx. -
Page 10: Description
DESCRIPTION Field of application Due to its reduced width of only 400 mm and its stepless adjustability, this vibrator is particularly suited for all kinds of soil compaction in confined areas, such as in cable trenches 40 cm wide or more, compaction of mar- ginal strips, repairs on blacktop surfacings as well as for all compaction jobs when applying large - scale ma- chinery would be inappropriate. -
Page 11: Maintenance
MAINTENANCE Maintenance schedule Check all external screw connections for tight fit approx. 8 hours after first operation. Parts Maintenance jobs Maintenance interv. Air filter Oil bath air filter - Check oil pan for oil level and dirt. daily Clean or top up if necessary. Dry-type air filter - see visual maintenance display, clean or replace filter cartridge if necessary. -
Page 12: Service Instructions
MAINTENANCE Service instructions 1. Adjusting the V-belt tension (First and most important adjustment after the first 5 to 20 hours of operation). Remove belt guard. Remove nuts situated on the motor V-belt pulley, remove V-belt pulley half. Remove necessary number of spaces (the removal of one spacer is usually sufficient). Install the removed spacers on the outside of the V-belt pulley. -
Page 13: Motor
MOTOR Starting operating Check oil level, top up if necessary. Only use high graded brand oil SAE 10 W 40. Fill with oil to upper mark of the level indicator (1 l). 1. Diesel fuel Do not use petrol or petrol mixture, also no tractor fuel, but only pure diesel oil. Close fuel tank immediately. The highest degree of cleannes is also essential here in order to avoid troubles with the injection unit and pre- mature clogging of the fuel filter. -
Page 15: Ec - Conformity-Certificate
Wacker Construction Equipment AG , Preußenstraße 41, 80809 München hereby certify that the construction equipment specified hereunder: 1. Category: Vibratory plate 2. Type: DPU 2440F WGB 3. Equipment item number: 0007877 ... 4. absolute installed power: 3,5 kW has been evaluated in conformity with Directive 2000/14/EC: Conformity At the following notified...
