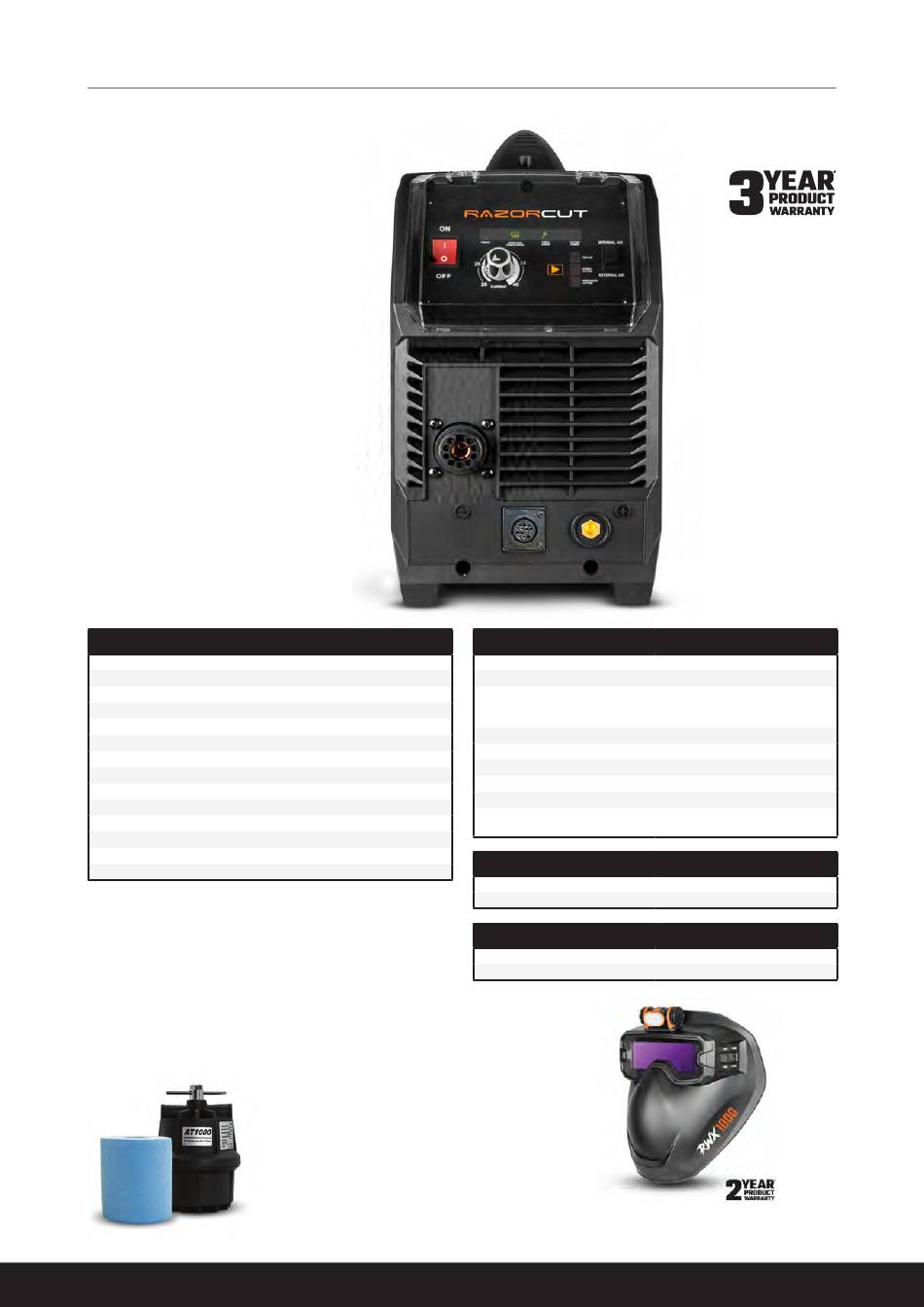

Technical Data - Jasic RAZORCUT 40PCI Operating Manual

RAZORCUT 4o
PLASMA CUTTER WITH COMPRESSOR
Key Features:
• Built-in Air Compressor
• External and Internal
Compressor capability
• Pilot Arc Start
• 3/8" Clean Cut
• 1/2" Severance
• CNC Port
• Perforated Cutting Option
• Test Air button
• Portable
• CSA/CAN Approved

TECHNICAL DATA

SKU :RC40PCi
PRIMARY INPUT VOLTAGE 230V Single Phase
RATED INPUT CURRENT
RATED INPUT POWER (kVA) 7.2
RATED OUTPUT VOLTAGE (V) 96
NO LOAD VOLTAGE (V) 210
AIR FLOW DRAW OFF (L/min) 120 L/min/4.25 CFM
AIR FLOW PRESSURE (Bar) 5.17 (75 psi)
PROTECTION CLASS IP21
INSULATION CLASS H
MINIMUM GENERATOR (kVA) 10.0
DINSE CONNECTOR 10/25
STANDARD CSA
WARRANTY (Years) 3
Recommended Accessories
33A
Plasma Cutter Air Filter
RF50500F
TECHNICAL DATA
PLASMA CUT SPECIFICATIONS
INTERNAL AIR
PLASMA CUT CURRENT RANGE 20-40A
25% @ 40A
PLASMA CUT DUTY CYCLE @ 40°C 60% @ 26A
100% @ 20A
MILD STEEL CUT THICKNESS 10mm/ 3/8"
MILD STEEL SEVERANCE THICKNESS 12mm/ 1/2"
ALUMINIUM CUT THICKNESS 6mm/1/4"
ALUMINIUM SEVERANCE THICKNESS 8mm/5/16"
STAINLESS STEEL CUT THICKNESS 6mm/1/4"
STAINLESS STEEL SEVERANCE
8mm/5/16"
THICKNESS
SIZE & WEIGHT
DIMENSIONS (mm) 610x215x420mm/24"x8.5"x16.5"
WEIGHT (kg) 18.0kg/40 Pounds
MACHINE FEATURES
PLASMA ARC START Pilot Arc
THERMAL OVERLOAD PROTECTION Over Temperature Warning
SKU:RC40PCi
EXTERNAL AIR
20-40A
25% @ 40A
60% @ 26A
100% @ 20A
16mm/5/8"
20mm/13/16"
10mm/3/8"
12mm/1/2"
10mm/3/8"
12mm/1/2"
RWX1000
GOGGLE
