MACHINE LAYOUT
RAZORCUT
5
6
1
2
9
11
12
7
8
4
3
10
10
11
14
13
15
16

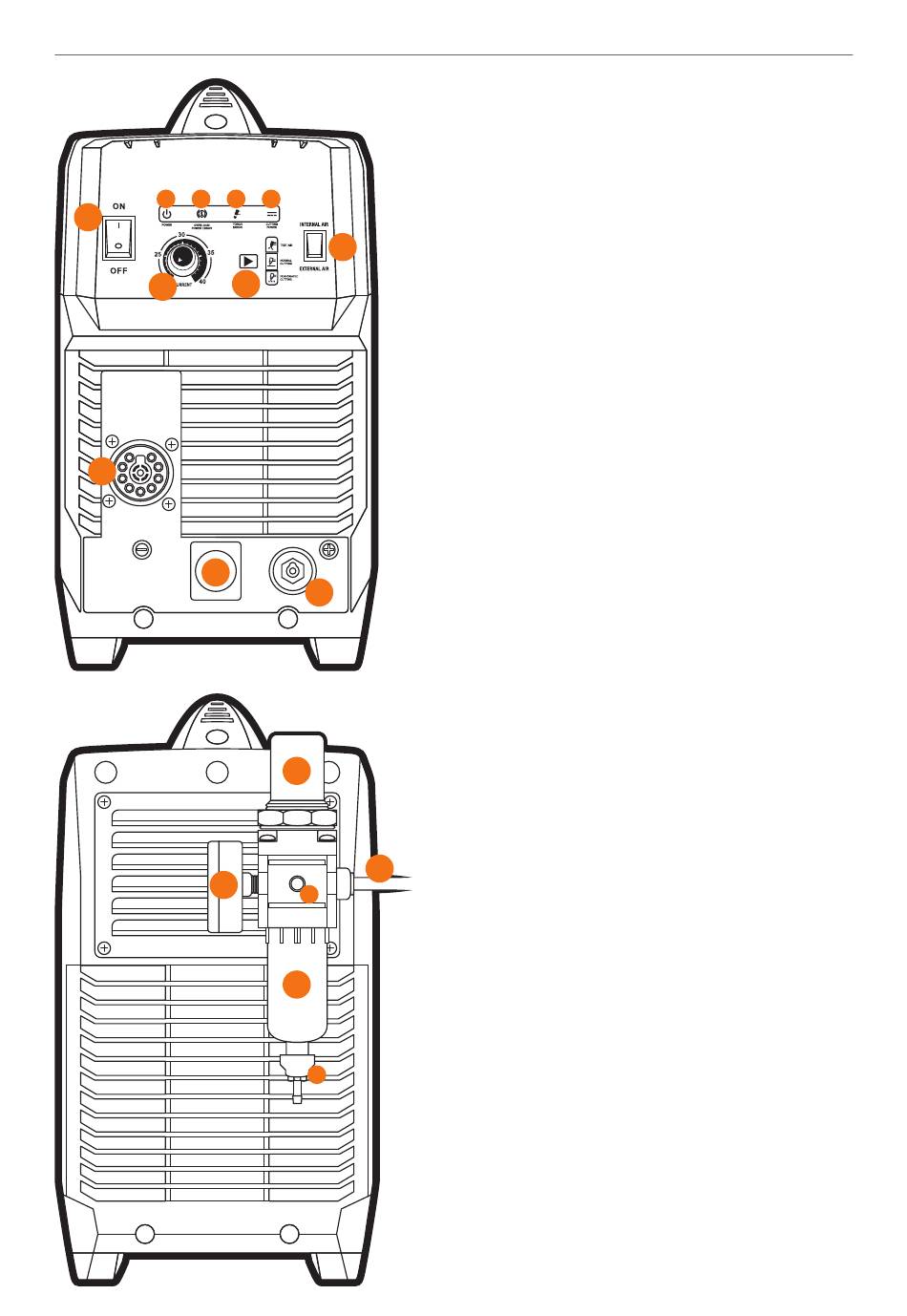

Front Panel Layout
1. On/Off Power Switch
2. Current Control Knob
3. Cut Mode Switch
4. Internal/External Air Switch
5. Power LED
6. Overload/Power Error LED
7. Torch Error LED
8. Cutting Power LED
9. Plasma Torch Connection
10. Earth Clamp Connection (10/25 Dinse)
11.CNC Port (14 Pin)
Rear Panel Layout
11. Air Pressure Regulator Knob
12. Air Pressure Regulator Outles Pressure Gauge
13. Compressed Air Inlet / Gas Inlet Connector
14. Mains Power Cable
15. Air Condensate Filter / Trap
16. Air Condensate Filter Drain Tube
