Jasic RAZORCUT 40PCI Operating Manual page 10

1

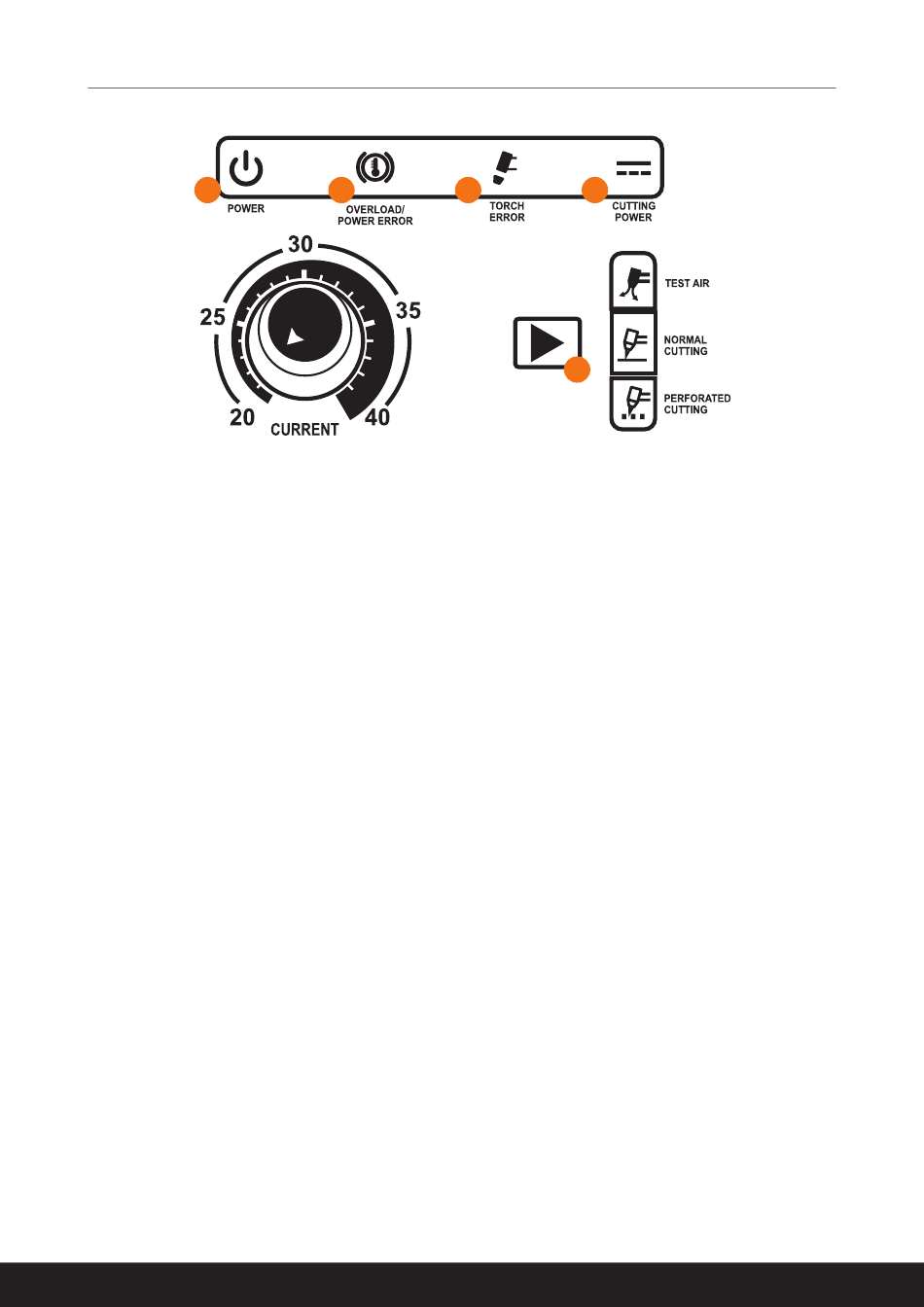

Additional Machine Control Information
1. Power LED
• Lights up when input power connected and the machine switched on.
2. Overload / Power Error LED
• Lights up when over-voltage, over-current or electrical overheating (due to exceeding duty cycle) is
detected and protection is activated. When protection is activated, cutting output will be disabled until
the safety system senses the overload has reduced sufficiently, and the indicator LED goes out. May
also trigger if the machine experiences an internal power circuit failure.
3. Torch Error LED
• Lights up when an issue with the torch system or air supply detected and cutting output is disabled as
a result. Flashing light means that the torch shield cap is not installed. Continuous light means likely
damaged or missing torch consumables or insufficient air pressure supply to the torch.
4. Cutting Power LED
• Lights up when cutting power circuit activated.
5. Cut Mode Switch
• When positioned as "Test Air", the compressed air control valve is open continuously. This is useful for
testing and setting the air pressure without having to activate the trigger circuit.
• "Normal Cutting" is the standard cutting mode, for use with solid workpieces.
• "Perforated Cutting" is the cutting mode when cutting a perforated workpiece.
2 3
MACHINE LAYOUT
4
5
9
