Machine Parts Breakdown - Jasic RAZORCUT 40PCI Operating Manual

2
7
3
6
4
8
5
10
12
MACHINE SPARES
1 7.2530.004 Handle
2 7.3010.0705 machine cabinet
3 7.0680.921 rear plastic panel
4 7.1220.0705 fixing plate for fan
5 6.7200.006-A fan
6 7.3070.0705 fixing sealing plate for rear panel
7 6.2530.201 Oil water separator
8 6.1550.003 fixing clamp for power cable
9 3.0628.7011 EMC PCB
10 7.1230.067 Holder for power block
11 6.7210.001 pump
12 7.0550.0705 bottom plate
13 7.1230.066 fixing plate for pump
14 3.0628.7025 Switch PCB for pump
15 6.2530.101 Two position three-way solenoid valve
16 7.0690.921 front plastic panel
17 6.6670.002 centrol socket
18 6.1520.001-A socket
19 7.3060.0705 fixing plate for front control pcb
20 6.4580.001 knob
21 6.2320.201 Switch
22 6.2320.001 Switch

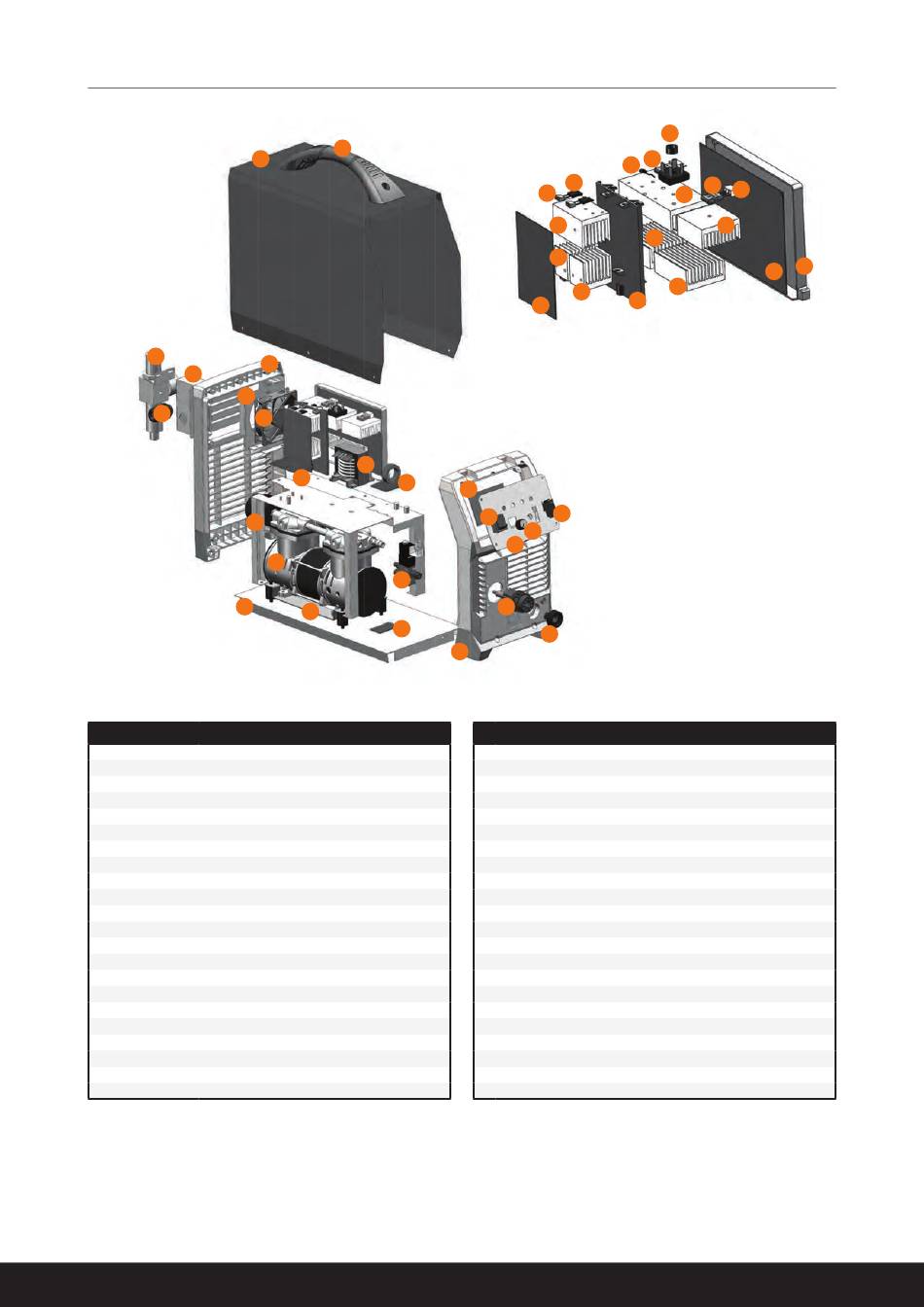

MACHINE PARTS BREAKDOWN

1
25
9
24
11
15
13
14
39 38
40
41
42
43
27
26
23
21
22
20
19
17
18
16
MACHINE SPARES
23 3.P628.4026-E Digital display PCB
3.0628.1038-C Control PCB
24 3.0628.7003 Inductance output PCB
25 5.1850.0705 main transformer
26 3.0628.6002 FRD PCB
27 7.4230.031 Heat sink for FRD
28 7.7130.907 Middle block plate
29 7.4220.089 heat sink
30 7.4220.088 heat sink
31 3.0628.2004 main PCB
32 7.1230.932 sealing box for main PCB
33 7.4220.087 heat sink
34 7.7130.001 insulation sheet
35 6.4250.004 IGBT
36 7.4220.086 heat sink
37 6.6620.001 Screw cover buckle
38 6.4110.003 rectifier bridge
39 6.2310.002-A thermo resistor
40 6.4010.001 fast recovery diode
41 7.7130.007 insulation plate
42 7.4230.029 heat sink for FRD
43 7.4230.030 heat sink for FRD
37
35
34
36
33
30
32
31
29
28
23
