Jasic RAZORCUT 40PCI Operating Manual page 19

SETUP FOR EXTERNAL AIR PLASMA CUTTING

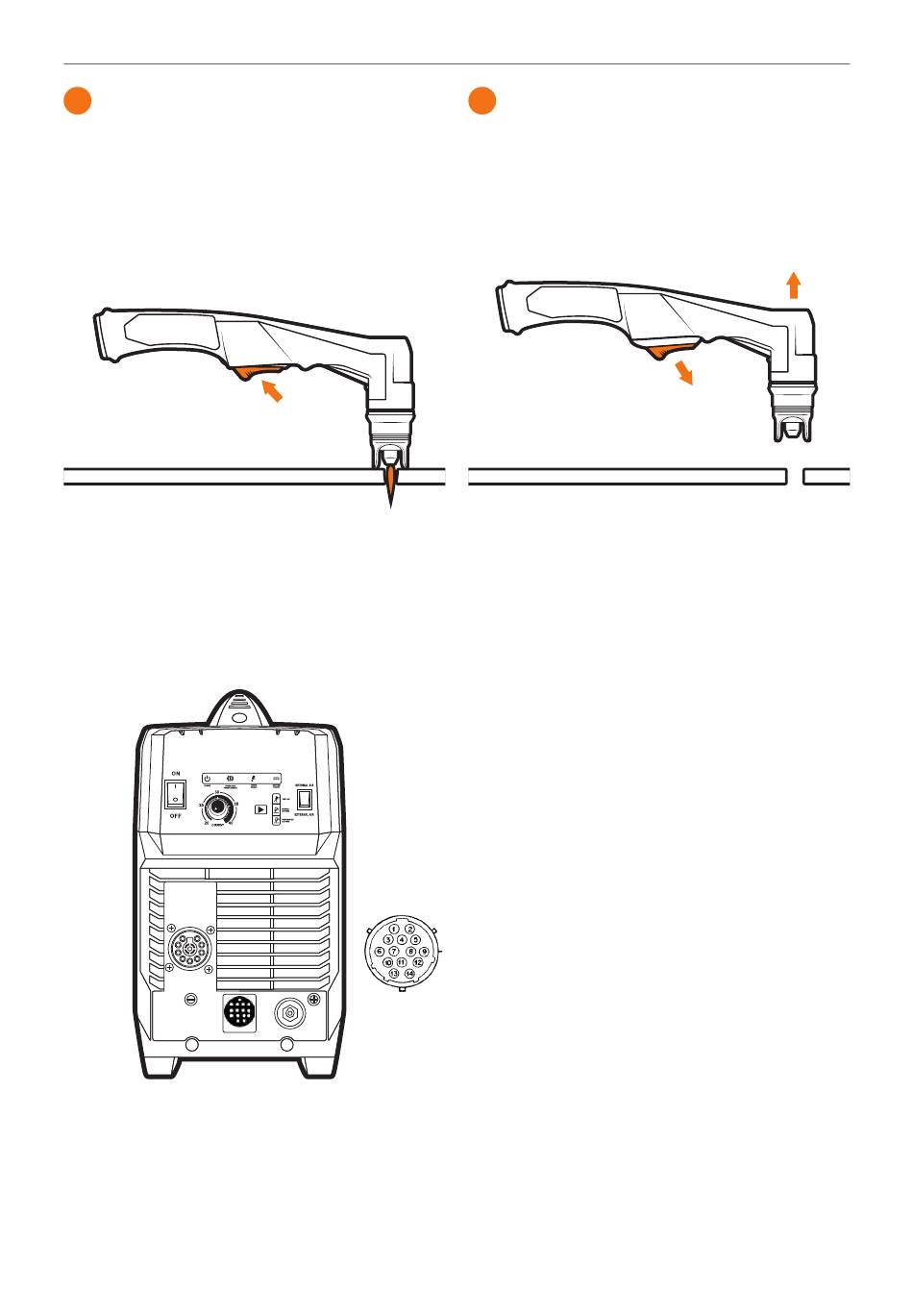

Pull the trigger to energise the arc. When the
13
cutting arc has cut through the edge of the
plate start moving evenly in the direction you
wish to cut.
NOTES FOR USING THE MACHINE FOR
18
CNC CUTTING
RAZORCUT
PLEASE NOTE: DO NOT RUN YOUR MACHINE
OFF AN EXTENSION LEAD AND ALSO ONLY
OPERATE THE MACHINE WHEN CNC CUTTING
USING AN EXTERNAL AIR COMPRESSOR!
To finish the cutting release the torch switch.
14
The air flow will continue for 30 seconds to
cool the torch head. Do not disconnect air
until this cooling period has been completed.
Failure to do this will result in torch head
damage.
Your RAZORCUT 40PCi is fitted with a
CNC Port with 12 female pins. Your
machine is supplied with a male 12 pin
connector. Please consult your CNC
Machine manufacturer for specific software
requirements.
Please note the below:
*Pin 6+7 is the 50:1 voltage divider
6 is positive (+) and pin 7 is Negative (-)
*Pin 8 +9 are the Trigger pins
An appropriate wiring diagram can be found
in with the Male external plug as part of the
machine package.
(Pin
