2. GENERAL INFORMATION ABOUT THE DEVICE

2.1 THE PNEUMATIC FLOW PATH AND SENSORS

1 2 3

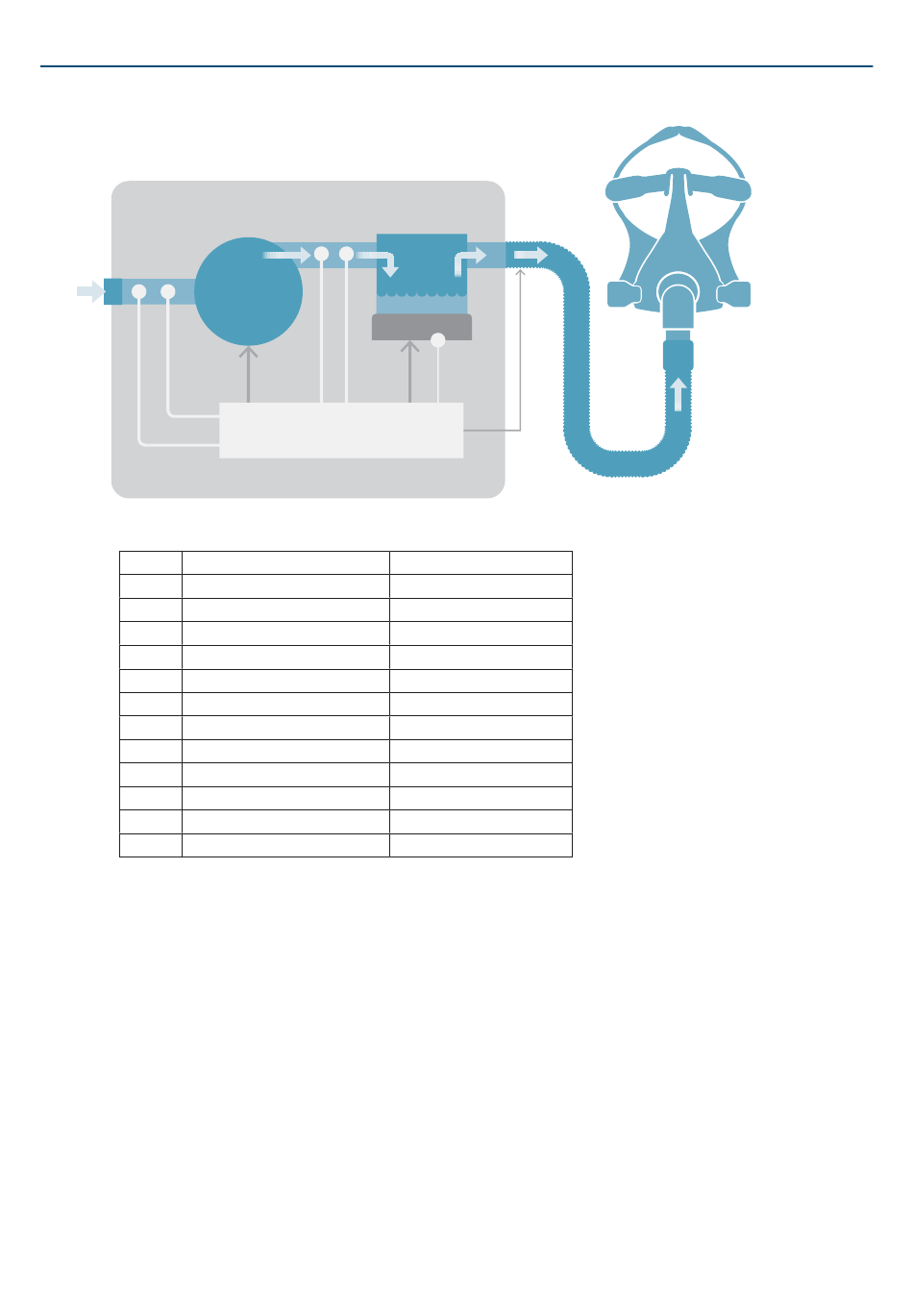

Figure 1: Air flow from rear of device to patient (refer to table below)
Number Description
1 Air inlet filter
2 Ambient temperature sensor
3 Flow sensor
4 Blower
5 Relative humidity sensor
6 Pressure sensor
7 Water chamber
8 Heater plate
9 Heater plate temperature sensor
10 Control system
11 Breathing tube
12 Mask
5 6
4
10
7
8
9
11
Range
-
0 – 40 °C
-95 – 199 L/min
-
15 – 93 % RH
0 – 30 cmH O
2
-
-
-10 – 110 °C
-
-
-
12
F&P SleepStyle Product Technical Guide | 6
