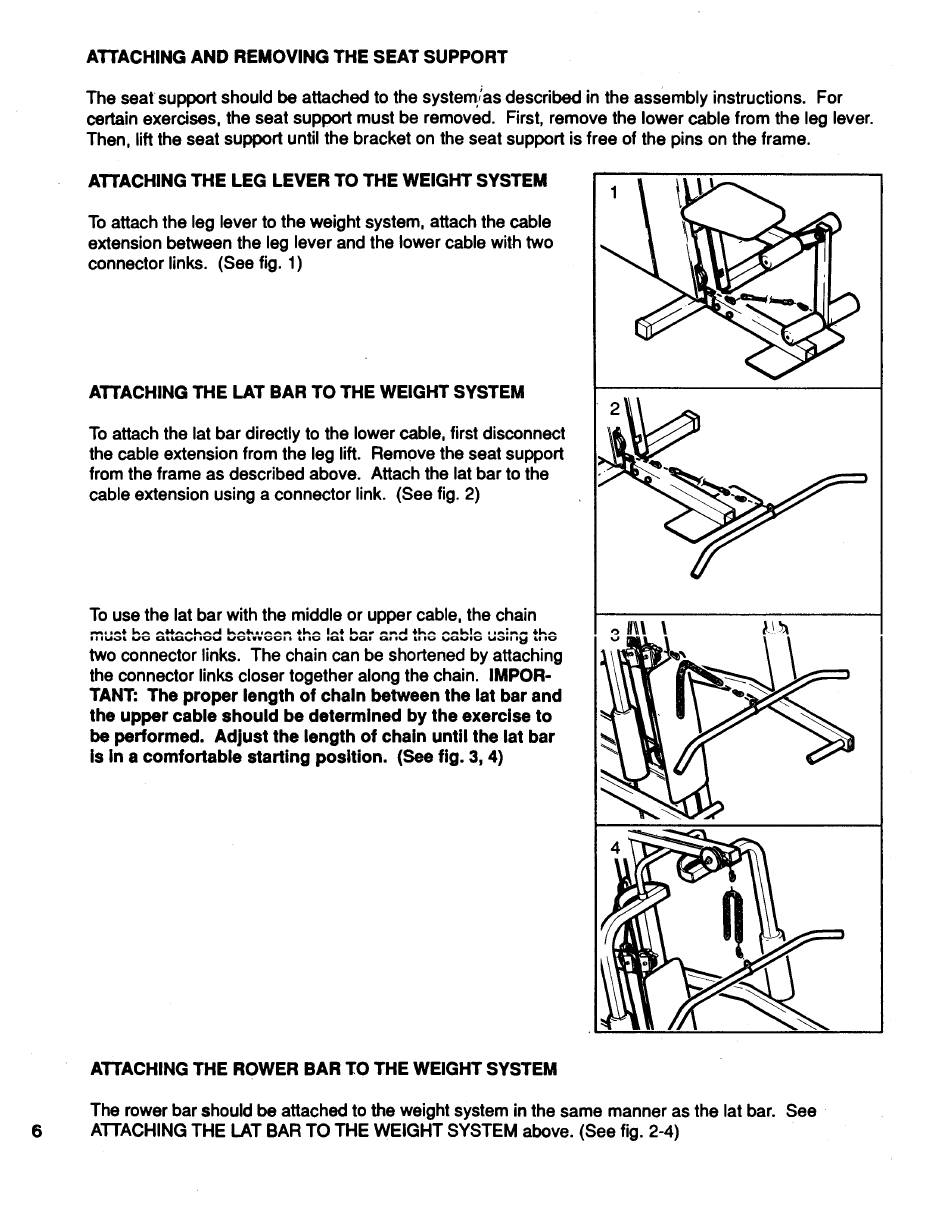

Pro-Form EDGE4001 Owner's Manual page 6

ATTACHINGAND REMOVINGTHESEAT SUPPORT
The seat support should be attached to the system;/as described in the assembly instructions. For
certain exercises, the seat support must be removed. First, remove the lower cable from the leg lever.
Then, lift the seat support until the bracket on the seat support is free of the pins on the frame.
ATFACHING THE LEG LEVER TO THE WEIGHT SYSTEM
To attach the leg lever to the weight system, attach the cable
extension between the leg lever and the lower cable with two
connector links. (See fig. 1)
ATTACHING THE LAT BAR TO THE WEIGHT SYSTEM
To attach the lat bar directly to the lower cable, first disconnect
the cable extension from the leg lift. Remove the seat support
from the frame as described above. Attach the lat bar to the
cable extension using a connector link. (See fig. 2)
To use the lat bar with the middle or upper cable, the chain
two connector links. The chain can be shortened by attaching
the connector links closer together along the chain. IMPOR-
TANT: The proper length of chain between the lat bar and
the upper cable should be determined by the exercise to
be performed. Adjust the length of chain until the lat bar
is in a comfortable starting position. (See fig. 3, 4)
6
ATrACHING THE ROWER BAR TO THE WEIGHT SYSTEM
The rower bar should be attached to the weight system in the same manner as the lat bar. See
A'I-rACHING THE LAT BAR TO THE WEIGHT SYSTEM above. (See fig. 2-4)
