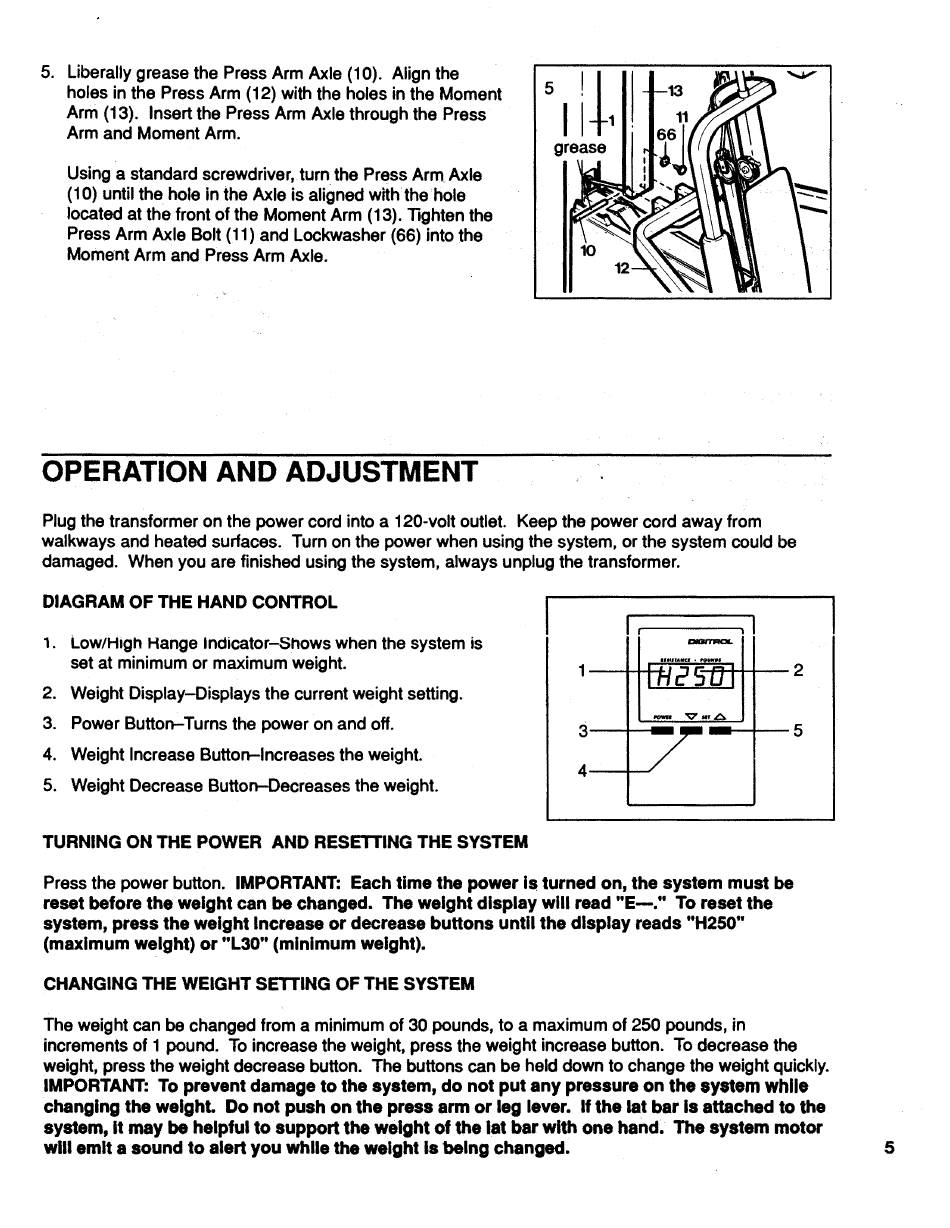

Pro-Form EDGE4001 Owner's Manual page 5

,
Liberally grease the Press Arm Axle (10). Align the
holes in the Press Arm (12) with the holes in the Moment
Arm (13). Insert the Press Arm Axle through the Press
Arm and Moment Arm.
Using a standard screwdriver, turn the Press Arm Axle
(10) until the hole in the Axle is aligned withthe hole
located at the front of the Moment Arm (13). "13ghten the
Press Arm Axle Bolt (11) and Lockwasher (66) into the
Moment Arm and Press Arm Axle.
5
I --1
grease
OPERATION AND ADJUSTMENT
Plug the transformer on the power cord into a 120-volt outlet. Keep the power cord away from
walkways and heated surfaces. Turn on the power when using the system, or the system could be
damaged. When you are finished using the system, always unplug the transformer.
DIAGRAM OF THE HAND CONTROL
1.
Low/Higrt
Hange Indicator-Snows when the system is
set at minimum or maximum weight.
2. Weight Display-Displays the current weight setting.
3. Power Button-Turns the power on and off.
4. Weight Increase Button-Increases the weight.
5. Weight Decrease Button-Decreases the weight.
_
4
!
I
"""'_'EmwnlK_" I • _,_M,. _l
2
TURNING ON THE POWER AND RESE'I'rlNG THE SYSTEM
Press the power button. IMPORTANT: Each time the power is turned on, the system must be
reset before the weight can be changed. The weight display will read "E--." To reset the
system, press the weight Increase or decrease buttons until the display reads "H250"
(maximum weight) or "L30" (minimum weight).
CHANGING THE WEIGHT SEt'rING OF THE SYSTEM
The weight can be changed from a minimum of 30 pounds, to a maximum of 250 pounds, in
increments of 1 pound. To increase the weight, press the weight increase button. To decrease the
weight, press the weight decrease button. The buttons can be held down to change the weight quickly.
IMPORTANT: To prevent damage to the system, do not put any pressure on the system while
chenging the weighL Do not push on the press arm or leg lever. If the lat bar is attached to the
system, it may be helpful to support the weight of the Ist bar with one hand, The system motor
will emit a sound to alert you while the weight is being changed.
5
