  • Page 1 HPE Aruba Networking 600H Series Hospitality Access Points Installation Guide...
  • Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
  • Page 3: Table Of Contents

    Specifications, Safety, and Compliance Electrical Environmental Regulatory Model Name Brazil Canada European Union and United Kingdom India Japan Medical Mexico Taiwan Thailand Ukraine United States Proper Disposal of HPE Aruba Networking Equipment HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 4: About This Guide

    About This Guide About This Guide This document describes the hardware features of the HPE Aruba Networking 600H Series Hospitality Access Points. It provides a detailed overview of the physical and performance characteristics of each access point model and explains how to install the access point.
  • Page 5: Hardware Overview

    WLAN standard, while also supporting IEEE 802.11a/b/g/n/ac wireless services. To simplify the ordering and distribution of the 600H Series access point, HPE Aruba Networking offers the AP-605HR remote AP bundle that combines an AP-605H, a desk stand, power adapter, and power cord.
  • Page 6: Access Point Views

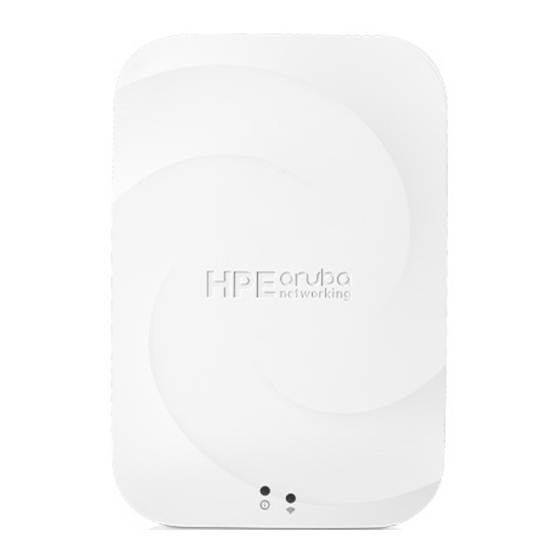

    Access Point Views Figure 1 AP-605H Front View System Status LED Radio Status LED Figure 2 AP-605H Side and Back View HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 7 There is a convenient design on the back of the AP for Ethernet cable routing from E0 Ethernet port. Figure 3 AP-605H Bottom View E1 Ethernet Port E2 Ethernet Port E3 Ethernet Port E4 Ethernet Port Figure 4 AP-605H Top View USB Host Interface HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 8 Figure 5 AP-605HR Back View AP-605H Desk Stand E0 Ethernet Port HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 9: System Status Led

    Amber - blinking One radio enabled in monitor mode, other disabled Green/Amber - alternating One radio in access mode, other in monitor mode Amber - solid Both radios enabled in monitor mode HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 10: Led Display Settings

    The console port is a Micro-B connector located on the back of the access point. Use the proprietary AP- CBL-SERU cable (sold separately) for direct management of the access point when connected to a serial terminal or laptop. HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 11: Ethernet Ports

    In that case, the access point simultaneously draws a minimal current from the PoE source. In the event that the DC source fails, the access point switches to the PoE sources. HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 12: Usb 2.0 Host Interface

    When enabled, the user may enable/disable power restrictions for the access point using HPE Aruba Networking's AP management software. Refer to the HPE Aruba Networking 600H Series Hospitality Access Points datasheet for details on possible functional restrictions when the AP is powered by POE, and how IPM can help to avoid or minimize these restrictions.
  • Page 13 2. Slide the AP up, but do not remove the RJ45 connector from the access point. Loosen the USB security screw. Figure 9 Sliding AP Up 3. Plug in the USB device, tighten the USB security screw and slide the AP down. HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 14: Ble Radio Default State

    POE source with insufficient power budget is used. Once the AP has established a connection with its management platform, the USB host interface state is updated to match what’s configured there. This state is maintained if the AP is power-cycled or rebooted. HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 15: Installation

    Identifying Specific Installation Locations Use the access point placement map generated by HPE Aruba Networking RF Plan software application to determine the proper installation location(s). Each location should be as close as possible to the...
  • Page 16: Access Point Installation

    Bluetooth devices Access Point Installation The HPE Aruba Networking 600H Series Hospitality Access Points are designed for desk, wall, or wall box mount. HPE Aruba Networking provides several mount kits to use with the access points. These mount kits are available as accessories and must be ordered separately.
  • Page 17: Software

    For instructions on choosing operating modes and initial software configuration, refer to the Software Quick Start Guide HPE Aruba Networking access points are classified as radio transmission devices, and are subject to government regulations of the host country. The network administrator(s) is/are responsible for ensuring that configuration and operation of this equipment is in compliance with their country’s regulations.
  • Page 18: Specifications, Safety, And Compliance

    Chapter 4 Specifications, Safety, and Compliance Specifications, Safety, and Compliance This chapter provides an overview of the HPE Aruba Networking 600H Series Hospitality Access Points specifications, safety, and compliance information. Electrical Ethernet E0 port: 100/1000/2500Base-T auto-sensing MDI/MDX wired RJ45 network connectivity port.
  • Page 19: Brazil

    Pour un fonctionnement dans la bande de fréquences comprises entre 5,15 et 5,25 GHz, son utilisation est limitée à un environnement intérieur afin de réduire la possibilité d’interférences nuisibles avec les systèmes mobiles par satellite opérant sur le même canal. HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 20: Eac

    Liechtenstein (LI), Lithuania (LT), Luxembourg (LU), Malta (MT), Netherlands (NL), Norway (NO), Poland (PL), Portugal (PT), Romania (RO), Slovakia (SK), Slovenia (SL), Spain (ES), Sweden (SE), Switzerland (CH), Turkey (TR), United Kingdom (UK (NI)). Radio Frequency Range Max EIRP BLE/Zigbee 2402-2480 MHz 10 dBm HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 21: India

    3. Wipe with a dry cloth, no additional maintenance required. 4. No serviceable parts, the unit must be sent back to the manufacturer for repair. 5. No modifications are allowed without approval from HPE Aruba Networking. HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 22: Mexico

    This device is intended for indoor use in professional healthcare facilities. This device has no IEC/EN60601-1-2 essential performance. Compliance is based on the use of HPE Aruba Networking approved accessories. Refer to the ordering guide for this access point at https://www.arubanetworks.com...
  • Page 23: Thailand

    Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or TV technician for help. HPE Aruba Networking 600H Series Hospitality Access Points |...
  • Page 24 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la conformité est susceptible d'annuler son droit d'utilisation. HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 25: Proper Disposal Of Hpe Aruba Networking Equipment

    Waste of Electrical and Electronic Equipment HPE Aruba Networking products at end of life are subject to separate collection and treatment in the EU Member States, Norway, and Switzerland and therefore are marked with the symbol shown at the left (crossed-out wheelie bin). The treatment...
  • Page 26 China RoHS HPE Aruba Networking products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. HPE Aruba Networking 600H Series Hospitality Access Points...
  • Page 27 Taiwan RoHS Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur HPE Aruba Networking 600H Series Hospitality Access Points |...
