Summary of Contents for HPE Instant On AP22D

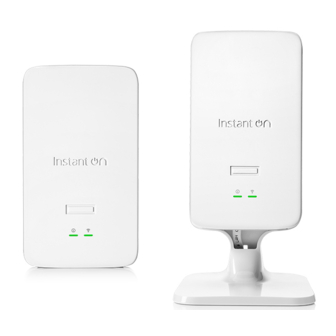

- Page 1 HPE Networking Instant On Access Point AP22D Installation Guide...
- Page 2 Hewlett Packard Enterprise Company. To obtain such source code, please check if the code is available in the HPE Software Center at https://myenterpriselicense.hpe.com/cwp-ui/software but, if not, send a written request for specific software version and product for which you want the open source code.
-
Page 3: Table Of Contents
Safety and Regulatory Compliance Regulatory Model Name Brazil Canada European Union and United Kingdom India Japan Medical Operating Temperature and Humidity Taiwan Ukraine United States Proper Disposal of Hewlett Packard Enterprise Equipment HPE Networking Instant On Access Point AP22D | Installation Guide... -
Page 4: About This Guide
This document describes the hardware features of the HPE Networking Instant On Access Point AP22D. It provides a detailed overview of the physical and performance characteristics of the HPE Networking Instant On Access Point AP22D and explains how to install the HPE Networking Instant On Access Point AP22D. -
Page 5: Hardware Overview
Single-gang wall box mount bracket Ethernet Cable If you have ordered HPE Networking Instant On Access Point AP22D bundle, the package would also include a power supply unit to power the AP through an electrical power outlet. HPE Networking Instant On Access Point AP22D | Installation Guide... -
Page 6: Hardware Overview
The AP has detected a problem. Red- solid The AP has an issue - immediate action required. 1. Blinking: one second on, one second off, 2-seconds cycle. 2. Alternating: one second for each color, 2-second cycle. HPE Networking Instant On Access Point AP22D |... -
Page 7: Radio Status Led
No lights Wi-Fi is not ready, wireless clients cannot connect. Green - solid Wi-Fi is ready, wireless clients can connect. Figure 2 Side View Security Screw Hole Reset DC Power Port HPE Networking Instant On Access Point AP22D | Installation Guide... - Page 8 Network Status LED on E1 Status LED on E1 for PoE Network Status LED on E2 Status LED on E2 for PoE Network Status LED on E3 Network Status LED on E4 HPE Networking Instant On Access Point AP22D |...
-
Page 9: Ethernet Ports
Ethernet Ports The HPE Networking Instant On Access Point AP22D is equipped with five Ethernet ports E0 to E4. The E0 port is 100/1000/2500 Base-T, auto-sensing MDI/MDX, which supports uplink connectivity when linked by an Ethernet cable. The access points support downlink network connectivity through E1-E4 Ethernet ports. -
Page 10: Power Sources
Power Sources DC Power A 48V/50W AC/DC power adapter is available in the box if you buy the HPE Networking Instant On Access Point AP22D bundle. To purchase the power adapter separately, refer to the HPE Networking Instant On Access Point AP22D ordering guide. -
Page 11: Installation
Before installing the access point, ensure that you have the following: A mount kit compatible with the AP and mount surface One or two Cat5E or better UTP cables with network access Optional items: HPE Networking Instant On Access Point AP22D | Installation Guide... -
Page 12: Identifying Specific Installation Locations
A compatible power adapter with power cord A compatible PoE midspan injector with power cord Refer to the HPE Networking Instant On Access Point AP22D data sheet for compatible items, quantities needed, etc. Identifying Specific Installation Locations The HPE Networking Instant On Access Point AP22D is designed in compliance with governmental requirements, so that only authorized network administrators can change configuration settings. -
Page 13: Software
(class 3.2 per ETSI 300 019). Desk Mount To install the HPE Networking Instant On Access Point AP22D to the included desk stand, follow these steps: 1. Insert the Ethernet jumper cable to the E0 port on the back of the access point. This Ethernet jumper cable is pre-installed on the desk stand. - Page 14 Figure 7 Securing Access Point on Desk Stand 4. Connect the Ethernet cable to the Ethernet port on the desk stand. HPE Networking Instant On Access Point AP22D |...
-
Page 15: Single-Gang Wall Box Mount
Figure 8 Connecting Ethernet Cable Single-gang Wall Box Mount You can use the included single-gang wall box mount bracket to mount the HPE Networking Instant On Access Point AP22D to a single-gang wall box. 1. If the wall box is not already exposed, unscrew and remove the existing wall plate. - Page 16 Figure 11 Routing Ethernet Cable 6. Align the slots on the back of the access point against the guide posts and slots on the mount bracket, then slide the access point down. HPE Networking Instant On Access Point AP22D |...
-
Page 17: Verifying Post-Installation Connectivity
Figure 13 Fastening Security Screw Verifying Post-Installation Connectivity The integrated LED on the access point can be used to verify that the access point is receiving power and initializing successfully . HPE Networking Instant On Access Point AP22D | Installation Guide... -
Page 18: Safety And Regulatory Compliance
Chapter 4 Safety and Regulatory Compliance Safety and Regulatory Compliance This chapter provides an overview of the HPE Networking Instant On Access Point AP22D safety and regulatory compliance information. Regulatory Model Name For the purpose of regulatory compliance certifications and identification, this product has been assigned a unique regulatory model number (RMN). -
Page 19: Eac
EU & UK Declaration of Conformity Compliance is only assured if the Hewlett Packard Enterprise approved accessories as listed in the HPE Networking Instant On Access Point AP22D data sheet are used. -
Page 20: India
2. Connect to only IEC 62368-1 or IEC 60601-1 certified products and power sources. The end user is responsible for the resulting medical system complies with the requirements of IEC 60601-1. 3. Wipe with a dry cloth, no additional maintenance required. HPE Networking Instant On Access Point AP22D | Installation Guide... -
Page 21: Operating Temperature And Humidity
This device is intended for indoor use in professional healthcare facilities. This device has no IEC/EN60601-1-2 essential performance. Compliance is based on the use of Hewlett Packard Enterprise approved accessories. Refer to the HPE Networking Instant On Access Point AP22D data sheet. -
Page 22: Ukraine
FCC for immediate termination of operation and may be subject to forfeiture (47 CFR 1.80). The network administrator(s) is/are responsible for ensuring that this device operates in accordance with local/regional laws of the host domain. HPE Networking Instant On Access Point AP22D | Installation Guide... - Page 23 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Toute modification effectuée sur cet équipement sans l'autorisation expresse de la partie responsable de la conformité est susceptible d'annuler son droit d'utilisation. HPE Networking Instant On Access Point AP22D |...
-
Page 24: Proper Disposal Of Hewlett Packard Enterprise Equipment
Directive. India RoHS This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules, governed by the Ministry of Environment & Forests, Government of India. HPE Networking Instant On Access Point AP22D | Installation Guide... - Page 25 China RoHS Hewlett Packard Enterprise products also comply with China environmental declaration requirements and are labeled with the “EFUP 50” label shown at the left. HPE Networking Instant On Access Point AP22D |...
- Page 26 Taiwan RoHS Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur HPE Networking Instant On Access Point AP22D | Installation Guide...
