Advanced
X

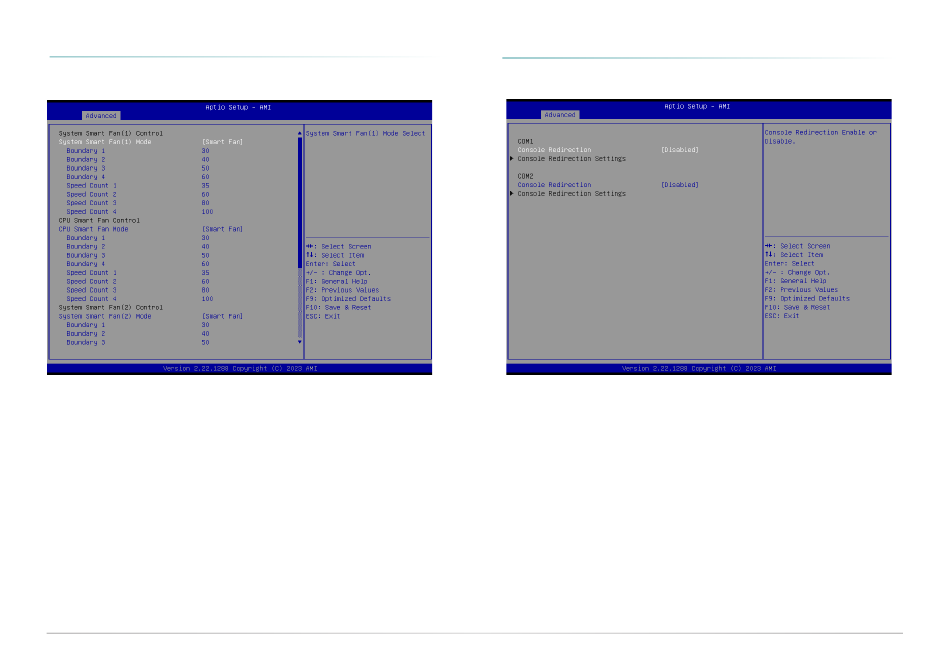

NCT6126D HW Monitor
► Smart FAN Function
Smart Fan is a fan speed moderation strategy dependent on the current system temperature.
When the system temperature goes higher than the Boundary setting, the fan speed will be
turned up to the setting of the Fan Speed Count that bears the same index as the Boundary
field.
SYS Smart Fan/CPU Smart Fan Control = [Enabled]
• Boundary 1 to Boundary 4
Set the boundary temperatures that determine the fan speeds accordingly, the value ranging
from 0-127°C. For example, when the system temperature reaches Boundary 1 setting, the fan
speed will be turned up to the designated speed of the Fan Speed Count 1 field.
• Fan Speed Count 1 to Fan Speed Count 4
Set the fan speed, the value ranging from 1-100%, 100% being full speed. The fans will operate
according to the specified boundary temperatures above-mentioned.
User's Manual | ADS310-R680E/Q670E
Advanced
X

Serial Port Console Redirection

Console Redirection
By enabling Console Redirection of a COM port, the sub-menu of console redirection settings
will become available for configuration as detailed in the following.
Chapter 3
BIOS SETTINGS
41
