Chipset

X
PCH-IO Configuration
PCI Express Configuration
PCI Express Configuration Settings
SATA Configuration
SATA Device Otpions Settings
HD Audio Configuration
HD Audio Subsystem Configuration Settings
User's Manual | ADS310-R680E/Q670E
Chipset
X

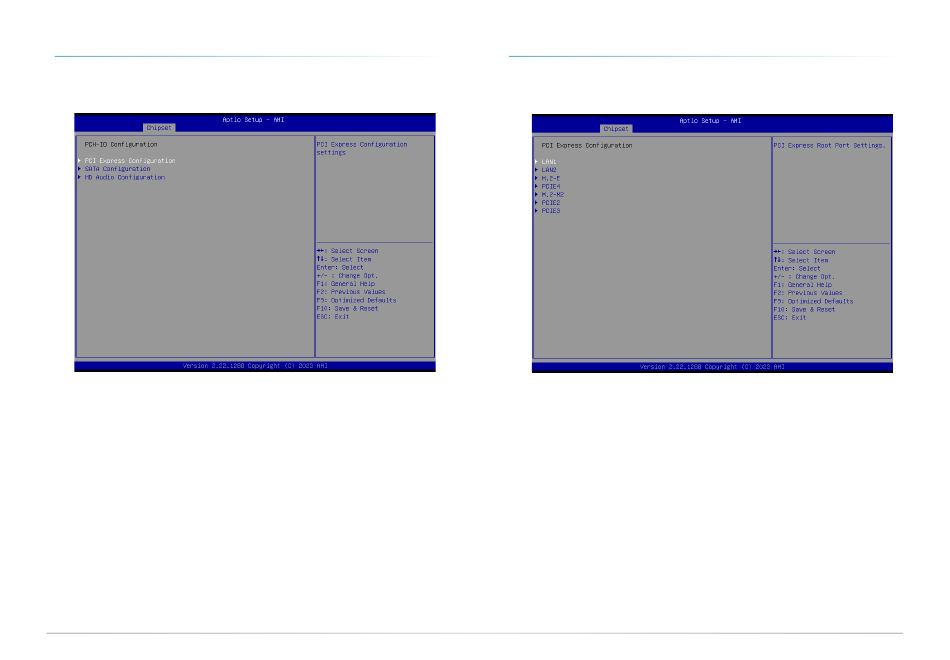

PCH-IO Configuration
► PCI Express Configuration
Select one of the PCI Express channels and press enter to configure the following settings.
LAN1, LAN2, M.2-E, M.2-M2, PCIE2, PCIE3, PCIE4,
Control the PCI Express Root Port.
Chapter 3
BIOS SETTINGS
48
