DFI RPS183 User Manual page 39

Advanced
X

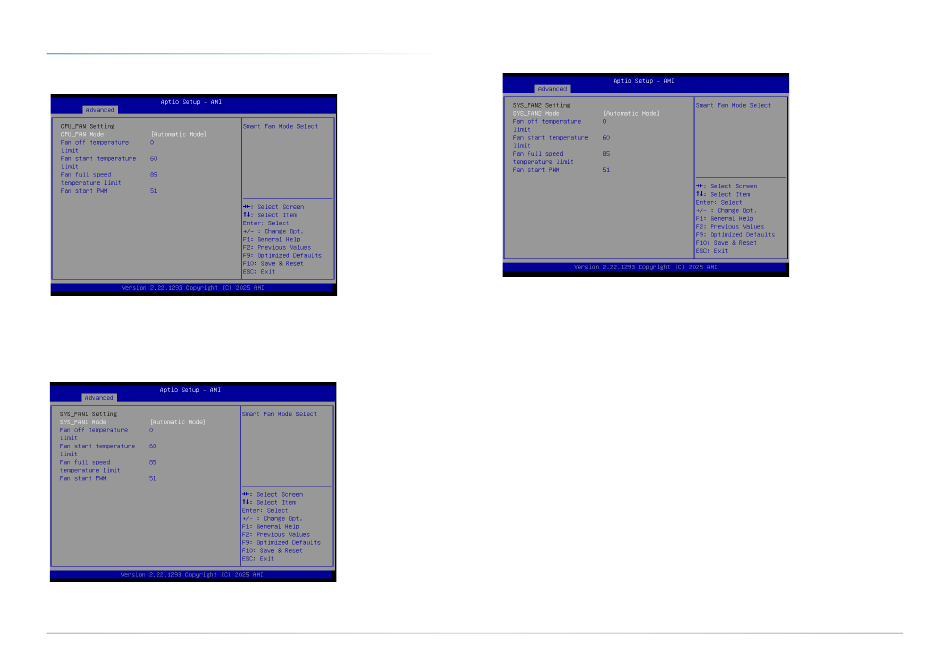

IT8786 HW Monitor
► Smart FAN Function ► CPU FAN Setting
IT8786 HW Monitor
► Smart FAN Function ► SYS_FAN1 Setting
User's Manual | RPS183
IT8786 HW Monitor
► Smart FAN Function ► SYS_FAN2 Setting
CPU / System Smart Fan Mode
Smart Fan Mode Select
Fan off temperature limit
Fan will be turned off when the temperature is lower than this limit.
Fan start temperature limit
Fan will start working when the temperature is higher than this limit.
Fan full speed temperature limit
Fan will be full speed when the temperature is higher than this limit.
Fan start PWM
Fan will start with this PWM value.
Chapter 3
BIOS SETTINGS
39
