Rear I/O Ports
X
USB Ports
USB 1/2 (USB 3.2 Gen 2)
USB 3/4 (USB 3.2 Gen 2)
USB 10/9/8/7 (USB 3.2 Gen 1)
USB 3 10/9/8/7
1
10
20
11
USB 5/6 (USB 3.2 Gen 2/USB 2.0)

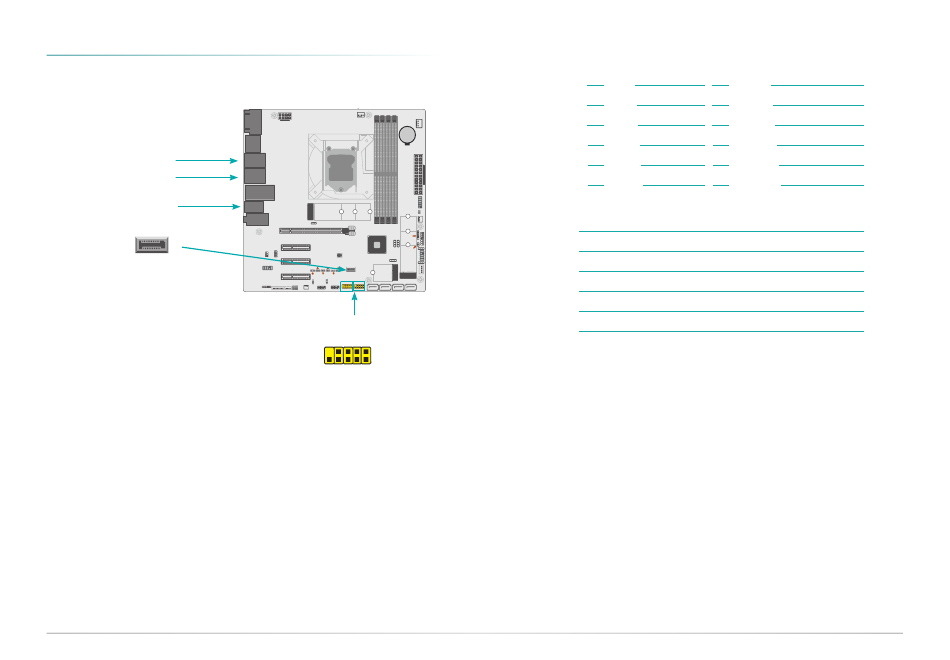

The USB device allows data exchange between your computer and a wide range of simultane-
ously accessible external Plug and Play peripherals. The system board is equipped with mul-
tiple USB ports as listed below:
•
4 x USB 3.2 Gen 2 rear ports (USB 1/2/3/4)
•
2 x USB 3.2 Gen 2 / USB 2.0 internal ports (USB 5/6)
•
4 x USB 3.2 Gen 1 rear ports (USB 7/8/9/10)
•
2 x USB 2.0 internal ports, box headers (USB 11/12)
•
1 x USB 2.0 internal ports, (USB 13)
User's Manual | ADS310-R680E/Q670E
CPU_FAN
1
VGA
HDMI
+12V Power
Battery
LGA 1700
DP++
DP++
2.5G LAN 1
USB3_1/2
USB2_1/2
2.5G LAN 2
USB3_3/4
USB2_3/4
10G LAN 1
10G LAN 2
M.2 M Key
Mic-in
M2CN4
Line-out
Line-in (opt.)
1
JP31
PCIE1 (PCIe x16)
Intel
JP25
JP5
PCIE2 (PCIe x4)
Front LAN
LED
1
1
R680E/Q670E
1
2
SPI
1
2
SMBus
5
PCIE3 (PCIe x4)
7
8
JP33
1
USB3_5/6
USB2_5/6
2
TSJP3
TSJP8
TSJP6
1
10
M.2 M Key
Front Audio
M2CN3
2
6
2
6
2
6
2
6
2
6
2
6
PCIE4 (PCIe x4)
M.2 E Key
1
9
1
5
1
5
1
5
1
5
1
5
1
5
20
11
TSJP4
TSJP2
TSJP7
M2CN2
5
6
6
5
TSJP5
TSJP1
1
1
JP29/30/28
2
1
2
1
2
2
1
8
1
1
9
1
9
1
1
10
2
1
1
1
10
2
1
1
1
S/PDIF
DIO
DIO
SYS_FAN1 COM1
COM2 USB2_13
Power
SATA0(R4)/SATA1(R5)/SATA2(R6)/SATA3(R7)
USB2_11/12
USB 11/12 (USB 2.0)
USB 13 (USB 2.0)
9
1
10
9 9
2
Pin
1
3
SYS_FAN3
1
5
7
9
ATX Power
1
2
Front Panel
11
InnoAGE HDR1
1
2
5
6
Pin
1
SYS_FAN2
13
J36
1
eSPI
1
1
2
1
JP26
SOJ1
1
9
PS/2
3
2
1
JP32
1
CN1
1
5
1
7
9
The internal USB ports may be mounted on a card-edge bracket. Install the card-edge bracket
to an available slot at the rear of the system chassis and then insert the USB port cables to a
connector.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state.
HARDWARE INSTALLATION
„ USB 2.0 Headers (USB 11/12)
Assignment
Pin
Assignment
SBV6
2
SBV6
USBP_C_11N
4
USBP_C_12N
USBP_C_11P
6
USBP_C_12P
GND
8
GND
---
10
N.C.
„ USB 2.0 (USB 13)
Assignment
Pin
Assignment
SBV6
2
SBV6
USBP_C_13N
4
N.C.
USBP_C_13P
6
N.C.
GND
8
GND
---
10
N.C.
Chapter 2
21
