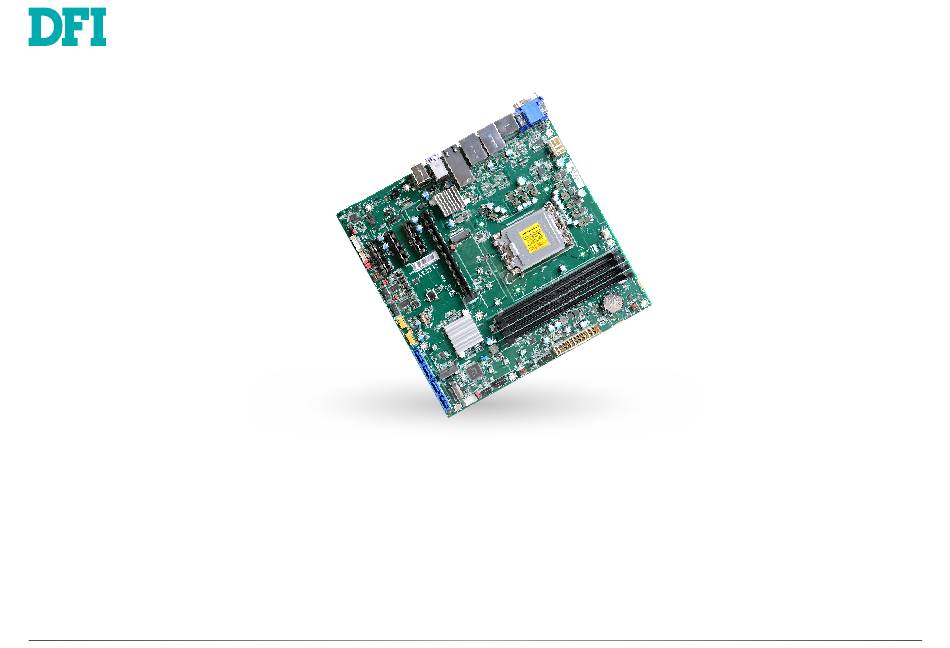

- Page 1 ADS310-R680E/Q670E microATX Industrial Motherboard User’s Manual...
- Page 2 Copyright FCC and DOC Statement on Class B This publication contains information that is protected by copyright. No part of it may be repro- This equipment has been tested and found to comply with the limits for a Class B digital duced in any form or by any means or used to make any transformation/adaptation without the device, pursuant to Part 15 of the FCC rules.
-
Page 3: Table Of Contents
Table of Contents ACPI Steeings ........................45 USB Configuration ......................46 Network Stack Configuration..................47 DFI WDT Configuration ....................47 Chapter 1 - Introduction........................ 6 USB Power Control ......................48 Specifications ......................... 6 Tls Auth Configuration ....................48 Features ..........................8 Intel(R) Ehternet Controller X550 .................49 Block Diagram ........................ - Page 4 About this Manual Static Electricity Precautions This manual can be downloaded from the website. It is quite easy to inadvertently damage your PC, system board, components or devices even before installing them in your system unit. Static electrical discharge can damage computer The manual is subject to change and update without notice, and may be based on editions that components without causing any signs of physical damage.
- Page 5 About the Package The package contains the following items. If any of these items are missing or damaged, please contact your dealer or sales representative for assistance. • 1 ADS310-R680E/Q670E motherboard • 1 COM port cable (Length: 300mm, 2 x COM ports) •...
-
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction X Specifications SPECIFICATION ® SYSTEM Processor 12th Generation Intel LGA 1700 Socket Processors, TDP support up to 125W Intel ® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W Intel ® Core™... - Page 7 TIMER Interval SECURITY Nuvoton TPM 2.0 (opt., MOQ required) POWER Type Connector 8-pin ATX 12V power 24-pin ATX power Consumption RTC Battery CR2032 Coin Cell OS SUPPORT Microsoft Windows 10 IoT Enterprise 64-bit Linux Linux www.dfi.com User's Manual | ADS310-R680E/Q670E...
-
Page 8: Features
Chapter 1 INTRODUCTION X Features Watchdog Timer PCI Express The Watchdog Timer function allows your application to regularly “clear” the system at the set PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds time interval. If the system hangs or fails to function, it will reset at the set time interval so that by forming multiple lanes. -
Page 9: Block Diagram
Chapter 1 INTRODUCTION X Block Diagram User's Manual | ADS310-R680E/Q670E... -
Page 10: Chapter 2 - Hardware Installation
Chapter 2 HARDWARE INSTALLATION Chapter 2 - Hardware Installation X Board Layout Note: Some components are optional and only available upon request. CPU_FAN Important: Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in boards, and other components. Perform installation procedures at an ESD HDMI +12V Power SYS_FAN3... -
Page 11: System Memory
Chapter 2 HARDWARE INSTALLATION X System Memory System Memory Installing the DIMM Module CPU_FAN HDMI +12V Power SYS_FAN3 Before installing the memory module, please make sure that the following safety cautions are Battery LGA 1700 well-attended. DP++ DP++ 1. Make sure the PC and all other peripheral devices connected to it has been powered 2.5G LAN 1 USB3_1/2 down. -
Page 12: Removing The Dimm Module
Chapter 2 HARDWARE INSTALLATION System Memory Installing the DIMM Module System Memory Removing the DIMM Module Please follow the steps below to install the memory card into the socket. Please follow the steps below to remove the memory card from the socket. Step 1: Press the eject tabs at both ends of the socket outward and downward to release them from Step 1:... -
Page 13: Cpu
Chapter 2 HARDWARE INSTALLATION X CPU Installing the CPU Fan and Heat Sink The CPU must be kept cool by using a CPU fan with heat sink. Without sufficient air circulation across the CPU and heat sink, the CPU will overheat damaging both the CPU and system board. Before you place the heat sink on the CPU, you must apply a thermal paste onto the top of the heat sink. -
Page 14: Jumper Settings
Chapter 2 HARDWARE INSTALLATION X Jumper Settings CLEAR CMOS Data CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 2 USB3_3/4 USB2_3/4 ATX Power 10G LAN 1 10G LAN 2 Front Panel USB 3 7/8/9/10 M.2 M Key Mic-in... -
Page 15: Dio Power & Voltage - Jp28/29/30
Chapter 2 HARDWARE INSTALLATION Jumper Settings Jumper Settings DIO Power & Voltage - JP28/29/30 PS/2 and USB Wake up select - JP25 CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 CPU_FAN DP++ DP++ HDMI +12V Power 2.5G LAN 1 SYS_FAN3 USB3_1/2 USB2_1/2 Battery... -
Page 16: Connector Power Control - Jp31/32
Chapter 2 HARDWARE INSTALLATION Jumper Settings Jumper Settings M.2 Connector Power Control - JP31/JP32/JP33 Power Selection for COM1/COM2-TSJP1/TSJP5 CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 CPU_FAN DP++ DP++ HDMI +12V Power 2.5G LAN 1 SYS_FAN3 USB3_1/2 USB2_1/2 Battery LGA 1700 2.5G LAN 2 DP++ USB3_3/4... -
Page 17: Selection For Com1 / Com2 - Tsjp4,3,2 / Tsjp8,7,6
Chapter 2 HARDWARE INSTALLATION Jumper Settings Selection for COM1 / COM2 - TSJP4,3,2 / TSJP8,7,6 TSJP3(COM1), TSJP7(COM2) CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 2 USB3_3/4 USB2_3/4 ATX Power „ 1-3, 2-4 On: „... -
Page 18: At/Atx Select - Jp26
Chapter 2 HARDWARE INSTALLATION Jumper Settings AT/ATX Select - JP26 CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 2 USB3_3/4 USB2_3/4 ATX Power 10G LAN 1 10G LAN 2 Front Panel USB 3 7/8/9/10 M.2 M Key Mic-in... -
Page 19: Rear I/O Ports
Chapter 2 HARDWARE INSTALLATION X Rear I/O Ports The rear panel I/O ports consist of the following: • 2 DP++ • 4 USB 3.2 Gen2 ports • 2.5G LAN 1/2 • 1 HDMI port • 1 VGA port • 10G LAN 1/2 •... -
Page 20: Usb Ports
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports „ USB 2.0 Headers (USB 11/12) USB Ports Assignment Assignment SBV6 SBV6 CPU_FAN USBP_C_11N USBP_C_12N HDMI +12V Power SYS_FAN3 USBP_C_11P USBP_C_12P Battery LGA 1700 DP++ DP++ USB 1/2 (USB 3.2 Gen 2) 2.5G LAN 1 USB3_1/2 USB2_1/2 USB 3/4 (USB 3.2 Gen 2) -
Page 21: Graphics Interfaces
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports Graphics Interfaces The display ports consist of the following: • 2 DP++ Port CPU_FAN • 1 HDMI port HDMI +12V Power SYS_FAN3 Battery • 1 VGA port LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 2... -
Page 22: Lan Ports
Chapter 2 HARDWARE INSTALLATION Rear I/O Ports Rear I/O Ports LAN Ports Audio CPU_FAN CPU_FAN HDMI +12V Power SYS_FAN3 Battery HDMI +12V Power SYS_FAN3 LGA 1700 DP++ DP++ Battery LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 1 2.5GLAN 1/2 USB3_1/2 2.5G LAN 2... -
Page 23: Internal I/O Connectors
Chapter 2 HARDWARE INSTALLATION X Internal I/O Connectors Internal I/O Connectors Digital I/O Connector, DIO Power SATA (Serial ATA) CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 DP++ DP++ SATA Pin Assignment CPU_FAN 2.5G LAN 1 USB3_1/2 USB2_1/2 HDMI +12V Power SYS_FAN3 2.5G LAN 2 USB3_3/4... -
Page 24: Cooling Fan Connectors
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Cooling Fan Connectors Power Connector CPU FAN1 CPU_FAN „ ATX 8-pin Power Connectors SYS FAN3 HDMI +12V Power SYS_FAN3 Battery LGA 1700 DP++ DP++ +12V 12 24 2.5G LAN 1 USB3_1/2 USB2_1/2 +3.3V... -
Page 25: Front Panel
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Front Panel S/PDIF Connector CPU_FAN HDMI +12V Power SYS_FAN3 Battery LGA 1700 „ Front Panel Connector DP++ DP++ CPU_FAN 2.5G LAN 1 USB3_1/2 USB2_1/2 2.5G LAN 2 HDMI +12V Power SYS_FAN3 USB3_3/4 USB2_3/4... -
Page 26: Com1
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors COM1 COM2 CPU_FAN CPU_FAN HDMI +12V Power HDMI +12V Power SYS_FAN3 SYS_FAN3 Battery Battery LGA 1700 LGA 1700 DP++ DP++ DP++ DP++ 2.5G LAN 1 2.5G LAN 1 USB3_1/2 USB3_1/2 USB2_1/2 USB2_1/2 2.5G LAN 2... -
Page 27: Front Audio
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Front Audio Front LAN LED CPU_FAN CPU_FAN HDMI +12V Power HDMI +12V Power SYS_FAN3 SYS_FAN3 Battery Battery LGA 1700 LGA 1700 DP++ DP++ DP++ DP++ 2.5G LAN 1 2.5G LAN 1 USB3_1/2 USB3_1/2 USB2_1/2... -
Page 28: Usb 3.2 Gen2 Key B
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors USB 3.2 Gen2 Key B PS/2 CPU_FAN CPU_FAN HDMI +12V Power HDMI SYS_FAN3 +12V Power SYS_FAN3 Battery Battery LGA 1700 LGA 1700 DP++ DP++ DP++ DP++ 2.5G LAN 1 2.5G LAN 1 USB3_1/2 USB3_1/2 USB2_1/2... -
Page 29: Usb 2.0 (Usb2 11/12/13)
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors USB 2.0 (USB2 11/12/13) SMBus Header CPU_FAN CPU_FAN HDMI +12V Power HDMI +12V Power SYS_FAN3 SYS_FAN3 Battery Battery LGA 1700 LGA 1700 DP++ DP++ DP++ DP++ 2.5G LAN 1 2.5G LAN 1 USB3_1/2 USB3_1/2 USB2_1/2... -
Page 30: Expansion Slots
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Internal I/O Connectors Expansion Slots Expansion Slots Installing the M.2 Module Before installing the M.2 module into the M.2 socket, please make sure that the following safety cautions are well-attended. PCIe 1 (PCIe x16) CPU_FAN PCIe 2 (PCIe x4) 1. -
Page 31: Battery
Chapter 2 HARDWARE INSTALLATION Internal I/O Connectors Expansion Slots Internal I/O Connectors Battery Please follow the steps below to install the card into the socket. CPU_FAN HDMI +12V Power SYS_FAN3 „ Battery Battery LGA 1700 DP++ DP++ 2.5G LAN 1 USB3_1/2 USB2_1/2 Step 1:... -
Page 32: Chapter 3 - Bios Settings
Chapter 3 BIOS SETTINGS Chapter 3 - BIOS Settings X Overview Legends The BIOS is a program that takes care of the basic level of communication between the CPU Keys Function and peripherals. It contains codes for various advanced features found in this system board. Right / Left arrow Move the highlight left or right to select a menu The BIOS allows you to configure the system and save the configuration in a battery-backed... -
Page 33: Main
ME FW Version 16.0.15.1531 F9: Optimized Defaults X NVMe Configuration ME Firmware SKU Corporate SKU F10: Save & Exit X DFI WDT Configuration PMC FW Version 160.2.0.7025 ESC: Exit X USB Power Control →←: Select Screen System Date [Mon 01/01/2021] ↑↓: Select Item... -
Page 34: Cpu Configuration
Chapter 3 BIOS SETTINGS Advanced Advanced CPU Configuration Power & Performance Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced CPU Configuration When enabled, a VMM can Power & Performance CPU - Power Management utilize the additional hard- Control Optionns Intel (VMX) Virtualization [Enable] ware capabilities provided... - Page 35 Chapter 3 BIOS SETTINGS Advanced Power and Performance CPU VR Settings Vec In Aux Icc Max Sets the Max Ice Vcc In Aux value defined in 1/4A increments. Range is 0-512. For an IccMax Aptio Setup - AMI 32A, enter 128(32*4). Advanced VCCIn Aux IMON Slope CPU VR Settings...
- Page 36 Chapter 3 BIOS SETTINGS Advanced Power and Performance Acoustic Noise Settings Slow Slew Rate for IA Domain Set VR IA Slow Slew Rate for Deep Package C State ramp time; Slow slew rate equals to Fast Aptio Setup - AMI divided by number, the number is 2, 4, 8, 16 to slow down the slew rate to help minimize acous- Advanced tic noise...
- Page 37 Chapter 3 BIOS SETTINGS Advanced Power and Performance Core/IA VR Settings IMON Offset IMON Offset defined in 1/1000 increments. Range is 0-63999. For an offset of 25.348, enter Aptio Setup - AMI 25348. IMON Uses BIOS VR mailbox command 0x4. Advanced IMON Prefix VR Config Enable...
- Page 38 Chapter 3 BIOS SETTINGS Power and Performance Advanced GT VR Settings IMON Offset IMON Offset defined in 1/1000 increments. Range is 0-63999. For an offset of 25.348, enter Aptio Setup - AMI 25348. IMON Uses BIOS VR mailbox command 0x4. Advanced IMON Prefix VR Config Enable...
- Page 39 Chapter 3 BIOS SETTINGS Advanced RFI Settings Aptio Setup - AMI Advanced Set desired RFI frequency, RFI Domain in increments of 100KHz. ( F o r f r e q u e n c y RFI Current Frequency 139.200MHZ 100.6MHz, enter 1006.) RFI Frequency FIVR Spread Spectrum [Enabled]...
-
Page 40: Pch-Fw Configuration
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced Advanced GT Power Management PCH-FW Configuration Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced ME State [Enabled] When Disabled ME will be GT - Power Management Control C h e c k t o e n a b l e r e n d e r Manageability Features State [Enabled]... -
Page 41: Trusted Computing
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced Trusted Computing Aptio Setup - AMI Advanced TPM2.0 Device Found Enables or Disables BIOS Firmware Version support for security de - Vendor: v i c e . O . S w i l l n o t s h o w Security Device. -
Page 42: Nct6126D Super Io Configuration
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced Advanced NCT6126D Super IO Configuration NCT6126D Super IO Configuration ► Serial Port Configuration Aptio Setup - AMI Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Advanced NCT6126D Super IO Configuration... -
Page 43: Nct6126D Hw Monitor
Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS Advanced NCT6126D HW Monitor NCT6126D HW Monitor Aptio Setup - AMI Advanced Enable CPU SmartFan Pc Health Status ► Smart Fan Function Case Open [Disabled] System temperature : +33 °C CPU temperature : +37 °C SYS_FAN1 : N/A... -
Page 44: Serial Port Console Redirection
Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS Advanced Advanced Serial Port Console Redirection Serial Port Console Redirection ► Console Redirection Settings Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced Console Redirection En - Enable CPU SmartFan COM1 COM1 able or Disable. -
Page 45: Acpi Steeings
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced Recorder Mode With this mode enabled only text will be sent. This is to capture Terminal data. ACPI Steeings Resolution 100x31 Aptio Setup - AMI Advanced Enables or disables extended terminal resolution. ACPI Settings Enable or disable System Putty Keypad... -
Page 46: Usb Configuration
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced USB Configuration Aptio Setup - AMI Advanced Enables Legacy USB sup- USB Configuration port. AUTO option disables legacy support if no USB XHCI Hand-off [Enabled] d e v i c e s a r e c o n n e c t e d . USB Mass Storage Driver Support [Enabled] DISABLE option will keep... -
Page 47: Network Stack Configuration
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS Advanced Advanced Network Stack Configuration DFI WDT Configuration Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced Enable/Disable UEFI Net- Enable/Disable Watchdog Network Stack [Enabled] USB Configuration... -
Page 48: Usb Power Control
Chapter 3 BIOS SETTINGS Advanced Advanced USB Power Control Tls Auth Configuration Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced 5 V _ D u a l : S u p p o r t s y s - Press <Enter>... -
Page 49: Intel(R) Ehternet Controller X550
Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS Advanced Intel(R) Ehternet Controller X550 Aptio Setup - AMI Advanced View device firmware ver- ► Firmware Image Properties sion information. ► NIC Configuration Blink LEDs UEFI Driver Intel(R) 10GbE Driver 7.6.13 x64 Adapter PBA 000000-000 Device Name... -
Page 50: Chipset
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS X Chipset Chipset System Agent (SA) Configuration Aptio Setup - AMI Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Advanced ► System Agent (SA) Configuration VMD Configuration settings System Agent Configuration System Agent (SA) Configuration... - Page 51 Chapter 3 BIOS SETTINGS System Agent (SA) Configuration Chipset System Agent (SA) Configuration PCI Express Configuration Chipset VMD Configuration Aptio Setup - AMI Aptio Setup - AMI Advanced Advanced C o m p l i a n c e Te s t M o d e E n a b l e / D i s a b l e t o V M D PCI Express Configuration VMD Configuration...
-
Page 52: Sata Configuration
Chapter 3 BIOS SETTINGS Chipset Chipset PCH-IO Configuration SATA Configuration Aptio Setup - AMI Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Chipset Advanced PCH-IO Configuration SATA And RST Configuration E n a b l e o r d i s a b l e S ATA PCH-IO Configuration Device. -
Page 53: Security
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS X Security Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Password Description S e t A d m i n i s t r a t o r P a s s - word Minimum length Maximum length... -
Page 54: Boot
Chapter 3 Chapter 3 Chapter 3 BIOS SETTINGS BIOS SETTINGS BIOS SETTINGS X Boot X Save & Exit Aptio Setup - AMI Aptio Setup - AMI Main Advanced Chipset Security Boot Save & Exit Main Advanced Chipset Security Boot Save & Exit Boot Configuration Number of seconds to wait Save Options... -
Page 55: Updating The Bios
BIOS with the flash utility. For updating AMI BIOS in UEFI mode, you may refer to the how-to video at https://www.dfi.com/Knowledge/Video/5. X Notice: BIOS SPI ROM 1.
