- Page 1 LED Music Tube Controller ORDERCODE 41013...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec 19“ LED Tube Controller Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features…….……………………………………………………………………………………….……...…. Overview……………………………………………………………………………………………………….. Installation................…...…………………………………….…... Set Up and Operation..............……..…………………………….…… Stand-alone LED Music Tube …………………………………………………………...….………….…… LED Tube controlled with LED Music controller………………………………………………………..….. Connecting a series of LED Tubes………………………………………………..…...………….…………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the LED Music Controller/LED Music Tube is lowered from the ceiling or high joists, professional •... -
Page 7: Description

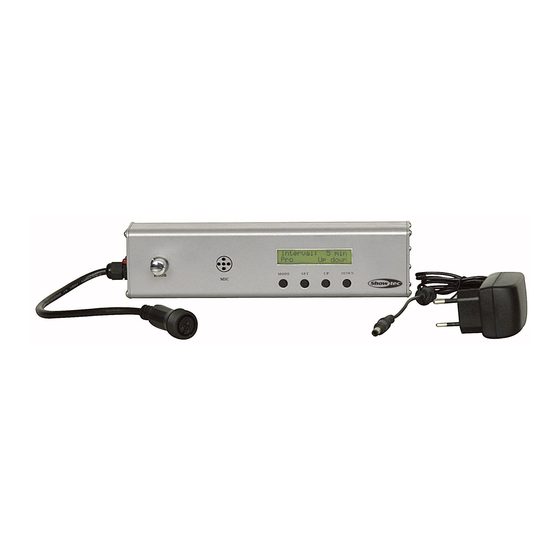

Description of the device Features The LED Music Tube Controller is LED tube controller to create great effects.: • Sound-controlled with adjustable audio sensitivity • 16 music active modes • 32 Tubes can be controlled without a signal amplifier Overview Fig. -
Page 8: Installation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. You can operate the LED Tube as: 1. Stand-alone LED Music Tube (without LED Music Tube controller) 2. LED Music Tube (with LED Music Tube controller) -
Page 9: Stand-Alone Led Music Tube
Stand-alone LED Music Tube When operating the LED tube in automatic mode (without the LED controller), the following table shows the corresponding MODE Dip Switch settings. Background Color Music Active Color Mode Dip Switch Setting Green 1110 Green White 1100 Blue 1000 White... -
Page 10: Led Tube Controlled With Led Music Controller
LED Tube controlled with LED Music controller Address Dip Switch Setting Address Dip Switch setting 00000 00001 00010 00011 00100 00101 00110 00111 01000 01001 01010 01011 01100 01101 01110 01111 10000 10001 10010 10011 10100 10101 10110 10111 11000 11001 11010 11011... -
Page 11: Connecting A Series Of Led Tubes
In order to properly function, it is important that all addresses are set correctly. Signal IN Power IN Fig. 6 2. Connect the power and signal connections as drawn in Fig. 6 3. After having installed all tubes, set the address. The first device must be set to master and the rest must be set to slave. -
Page 12: Controller Functions
Controller Functions To use the sound-controlled function it is advised that the distance between the sound source and the microphone should not exceed 5 meters. 1) Press the Mode button to switch between MODE DISP and CYCLE MOTION. 2) Select MODE DISP and then press the SET-button to enter the MODE-Menu. Use the Up / Down-button to scroll through this menu. -
Page 13: Maintenance
Response: Suspect two potential problem areas: the power supply or the LEDs. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the LED Music Controller / LED Music Tube to your Showtec dealer. -
Page 14: Product Specifications
Product Specification Model: Showtec LED Music Tube Controller (41013) Voltage : AC 230V-50Hz (CE) Power: 2W Dimensions :235 x 45 x 60mm (LxWxH) Weight : 0,47 kg Model: Showtec LED Tube (41012) Power: 20W Protection grade: IP33 (indoor use only)
