Introduction
AD001H is a CVBS to VGA converter that supports NTSC/ PAL video formats for CVBS. The converter also
has an extra BNC output for a DVR. It's an easy-to-use device that supports OSD (On Screen Display)
menu to show the current setting status on the monitor and supports auto memory function to restore
the previous user's settings.
Features
Converts CVBS to VGA.

Resolution up to NTSC/ PAL@50/60Hz for CVBS, 1280x1024@60Hz for VGA.

Built-in local loop out for extra analog video output.

Supports OSD menu to show the parameters of brightness, contrast, saturation, Hue, sharpness,

resolution.
Built in ESD protection.

Supports auto memory.

Built-in video auto gain control for video loss compensation.


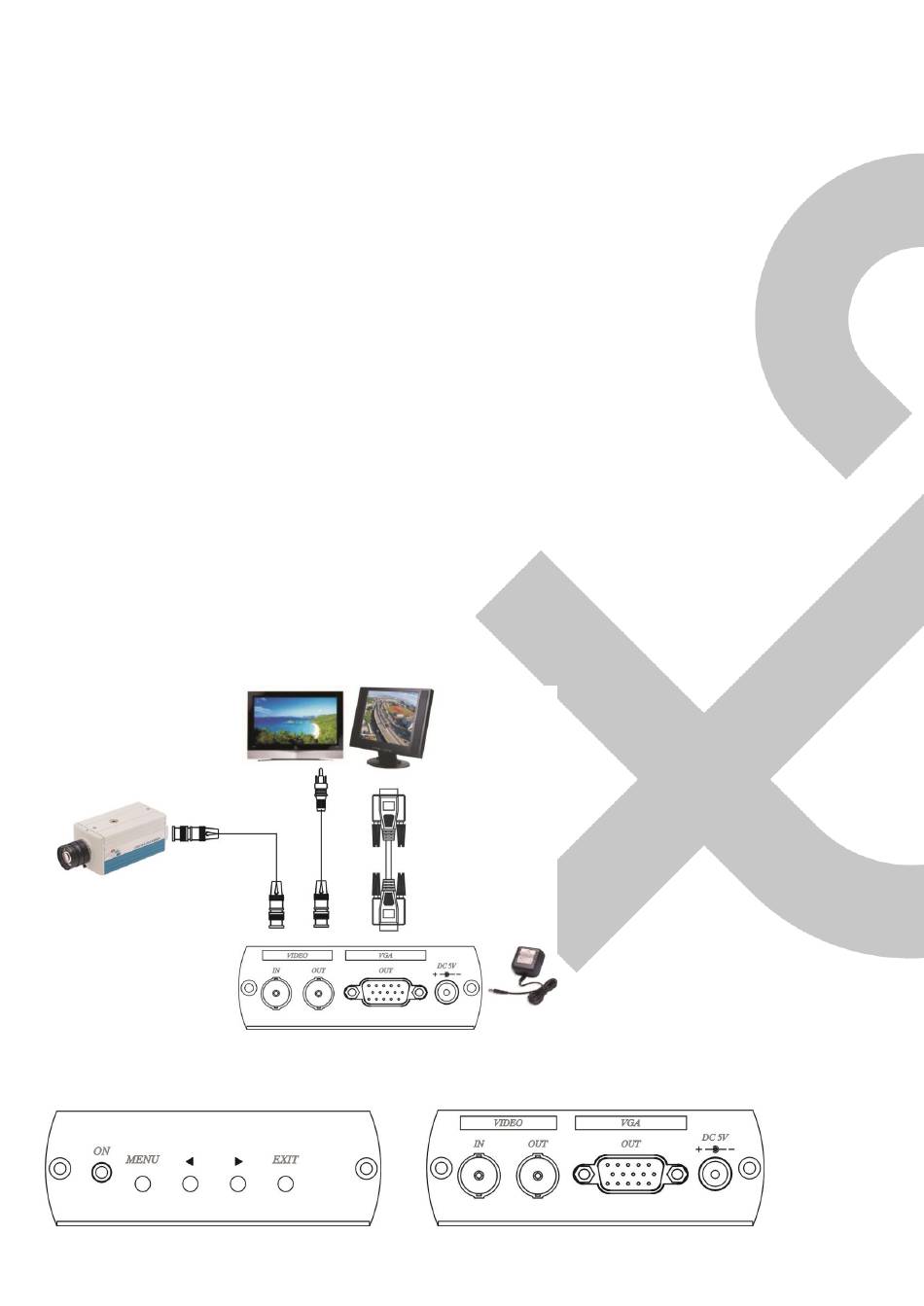

Installation View
