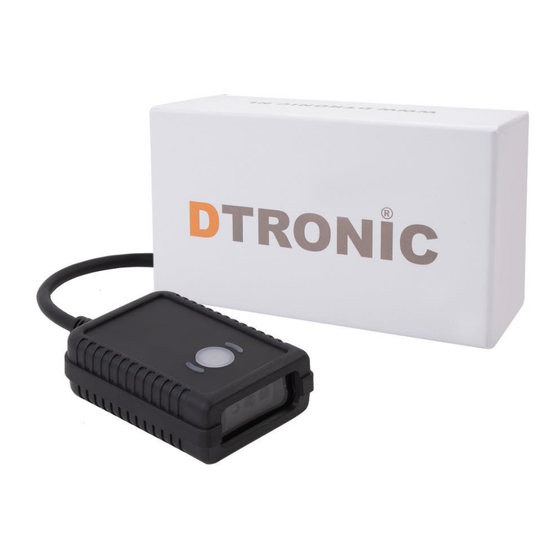

- Page 1 User Manual DT3042 Barcodescanner – DT3042 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 2-2-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3042’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3042’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ...................... - Page 4 User manual ‘DT3042’ 2.4.10 Pre/Post data length setting................. 21 Symbologies ........................21 2.5.1 1D all symbologies ....................21 2.5.2 2D all symbologies ....................22 2.5.3 All barcodes ......................22 2.5.4 EAN8 Settings ....................... 22 2.5.5 Code 11 Settings ....................22 2.5.6 Add-on code setting .....................
-
Page 5: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 6: Reading
User manual ‘DT3042’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 7: System Setup
User manual ‘DT3042’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 8: Led
User manual ‘DT3042’ 2.1.4 Led Enable Aimer Disable Aimer Enable Illumination Disable Illumination Always off Always on 2.1.5 Beeper Duration Short Normal 2.7Khz Mute 2.1.6 Beeper settings Volume set to High (50%) (default) Volume set to midrange (25%) Datum : feb-2024 pagina 8 van 41 Versie : 1.0... -
Page 9: Set The Beep Switch
User manual ‘DT3042’ 2.1.7 Set the beep switch Open (default) Close 2.1.8 Power on beep switch Open (default) Close 2.1.9 Read success beep switch Open (default) Close 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. -
Page 10: Continuous Mode (Default)
User manual ‘DT3042’ 2.2.2 Continuous mode (default) When the reading setting code is switched to this mode, it enters the continuous reading state. In this mode, the "repeat read switch" can be used to prevent the same barcode from being read more than once. -
Page 11: Repeat Read Switch
User manual ‘DT3042’ 2.2.5 Repeat read switch The repeat read setting is only available in continuous mode. Allow repeat readings (default) Repeat reading is not allowed 2.2.6 Code reading timeout 30sec 300sec 2400sec 2.2.7 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 12: Communication Settings
User manual ‘DT3042’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB serial port RS-232 serial port USB CDC Enable virtual keyboard Disable virtual keyboard 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) -
Page 13: Usb Keyboard Sending Speed
User manual ‘DT3042’ Portuguese (Brazil) French German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) America 2.3.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance. -
Page 14: Set Usb Keyboard Sending Speed
User manual ‘DT3042’ 2.3.4 Set USB keyboard sending speed USB keyboard send speed, unit is milliseconds (ms). The default value is 5ms, the settable time range: 0ms~200ms. Set USB keyboard sending speed Setting the USB keyboard to send speed of 50ms can be set by reading the following barcodes in order. -
Page 15: Serial Port Baud Rate Setting
User manual ‘DT3042’ Stop bit 1 Stop bit 2 Check bit O Check bit N Check bit E 2.3.7 Serial port baud rate setting Baud rate 4800 Baud rate 9600 (default) Baud rate 19200 Baud rate 38400 Baud rate 57600 Baud rate 115200 2.3.8 Serial port output... -
Page 16: Serial Port Parity Bit Setting
User manual ‘DT3042’ Serial output according to barcode content 2.3.9 Serial port parity bit setting No checksum (default) Odd calibration Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. -
Page 17: Customized Prefixes
User manual ‘DT3042’ the data "123", the scanner adds the string "AB" before the string "123", and the host side receives "AB123". After the barcode reading data is "123", the scanner will add the string "AB" before the string "123", and the host side will receive "AB123". -
Page 18: Custom Suffixes
User manual ‘DT3042’ Enable Disable (default) Clear all custom suffixes Output all 2.4.5 Custom suffixes Custom suffix adds a user-defined string after the decoded information, and the output format after customization is "barcode content + custom content". Set the custom suffix to 'a' (the hex value of a is 0x61) 1. -
Page 19: Customize Code Id
User manual ‘DT3042’ Disable CODE ID (default) Code ID prefix Code ID suffix Clear all custom Code IDs 2.4.7 Customize Code ID Please refer to the following example for how to modify the Code ID. Modify the Code ID of Codabar (Code ID:0x61) to "Y" (hexadecimal value 0x59). - Page 20 User manual ‘DT3042’ No terminator Enter (default) Line Feed (Down) Carriage return + Line feed (Enter+Down) Datum : feb-2024 pagina 20 van 41 Versie : 1.0...
-
Page 21: Case Output Settings
User manual ‘DT3042’ 2.4.9 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. Normal output (default) Convert Case Convert all to Uppercase Convert All to lowercase 2.4.10 Pre/Post data length setting Pre-segment data length setting Back-end data length setting 2.5 Symbologies... -
Page 22: All Symbologies
User manual ‘DT3042’ 2.5.2 2D all symbologies Enable Disable 2.5.3 All barcodes Close all barcodes Turn on all barcodes 2.5.4 EAN8 Settings EAN8 on (default) EAN8 off Convert EAN8 to EAN13 Do not Convert EAN8 to EAN13 (default) 2.5.5 Code 11 Settings... -
Page 23: Add-On Code Setting
User manual ‘DT3042’ 1 check bit 2 check bits Transmit check bit Not transmit check bit 2.5.6 Add-on code setting Adaptive UPC/EAN add-on codes Only Decode UPC/EAN Add-on codes Ignore UPC/EAN add-on codes (default) 2.5.7 EAN 13 settings EAN13 on (default) -
Page 24: Issn Settings
User manual ‘DT3042’ 2.5.8 ISSN Settings Convert EAN-13 to ISSN Do not Convert EAN-13 to ISSN (default) 2.5.9 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.5.10 UPC-A settings Transmit UPC-A check character (default) Do not Transmit UPC-A check character... -
Page 25: Upc-E Settings
User manual ‘DT3042’ 2.5.11 UPC-E settings UPC-E on (default) UPC-E Off Do no Transmit UPC-E transmission Check Transmit UPC-E Check Character (default) Character Convert UPC-E to UPC-A Do not Convert UPC-E to UPC-A (default) 2.5.12 UPCE Enable Disable 2.5.13 EAN/UPC... -
Page 26: Code 39 Settings
User manual ‘DT3042’ 2.5.14 Code 39 Settings Code 39 on (default) Code 39 Off Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character Transmit Code 39 Check Character (default) Full ASCII On Full ASCII Off (default) 2.5.15 Code 39 Length Setting... -
Page 27: Code 32 Settings
User manual ‘DT3042’ 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. Scan "Save" (see Appendix 1 to save or cancel) 5. Scan "Maximum length setting" 6. Scan Digital Code "1" "2" (see Appendix 1) 7. -
Page 28: Code 93 Settings
User manual ‘DT3042’ Example Set the scanner to Scan only barcodes with a minimum of 8 bytes and a maximum of 12 bytes. 1. Scan "Startup Settings" 2. Scan "Minimum length setting" 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. -
Page 29: Codabar Settings
User manual ‘DT3042’ 2.5.21 Codabar Settings Codabar on (default) Codabar Off Transmit Codabar start and stop characters Do not Transmit Codabar start and stop characters (default) 2.5.22 Codabar Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 30: Gs1 Databar Limited
User manual ‘DT3042’ 2.5.23 GS1 Databar Limited Enable Disable 2.5.24 GS1 Databar omnidirectional Enable Disable 2.5.25 GS1 Databar Expanded Enable Disable 2.5.26 Data matrix Code Enable Disable 2 of 5 enable 2 of 5 disable Datum : feb-2024 pagina 30 van 41... -
Page 31: Msi
User manual ‘DT3042’ Matrix 2 of 5 check bit enable Matrix 2 of 5 check bit disable 2.5.27 MSI Enable Disable 2.5.28 QR Enable Disable Enable QR code URL link Disable QR code URL link 2.5.29 Micro QR code Enable... -
Page 32: Pdf417
User manual ‘DT3042’ 2.5.30 PDF417 Enable Disable 2.5.31 Micro PDF417 Enable Disable 2.5.32 RSS-Expanded Enable Disable 2.5.33 RSS-Limited Enable Disable 2.5.34 RSS-14 Enable Disable Datum : feb-2024 pagina 32 van 41 Versie : 1.0... -
Page 33: Straight 2 Of 5 Industrial
User manual ‘DT3042’ 2.5.35 Straight 2 of 5 Industrial Enable Disable 2.5.36 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.5.37 Aztec code... -
Page 34: Itf25 Length Setting
User manual ‘DT3042’ 2.5.38 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 35: Appendix
User manual ‘DT3042’ 3. Appendix 3.1.1 Data Code Datum : feb-2024 pagina 35 van 41 Versie : 1.0... -
Page 36: Preview
User manual ‘DT3042’ 3.1.2 Preview After reading the data code, you must read the save code to save the data. If there is an error when reading the data code, in addition to resetting, you can also cancel reading the wrong data. -
Page 37: Ascii Code Table
User manual ‘DT3042’ 3.1.3 ASCII Code table ASCII value(Decimal） Character NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) ACK (Acknowledgment) confirmation BEL (Bell) BS (Backspace) HT (Horizontal Tab) - Page 38 User manual ‘DT3042’ ESC (Escape) FS (File Separator) GS (Group Separator) RS (Request to Send) US (Unit Separator) SP (Space) ! (Exclamation Mark) " (Double Quote) # (Number Sign) $ (Dollar Sign) % (Percent) & (Ampersand) ` (Single Quote) ( (Right / Closing Parenthesis)
- Page 39 User manual ‘DT3042’ : (Colon) ; (Semi-colon) < (Less Than) = (Equal Sign) > (Greater Than) ? (Question Mark) @ (AT Symbol) Datum : feb-2024 pagina 39 van 41 Versie : 1.0...
- Page 40 User manual ‘DT3042’ [ (Left / Opening Bracket) \ (Back Slash) ] (Right / Closing Bracket) ^ (Caret / Circumflex) _ (Underscore) ' (Grave Accent) Datum : feb-2024 pagina 40 van 41 Versie : 1.0...
- Page 41 User manual ‘DT3042’ { (Left/ Opening Brace) | (Vertical Bar) } (Right/Closing Brace) ~ (Tilde) DEL (Delete) Datum : feb-2024 pagina 41 van 41 Versie : 1.0...
