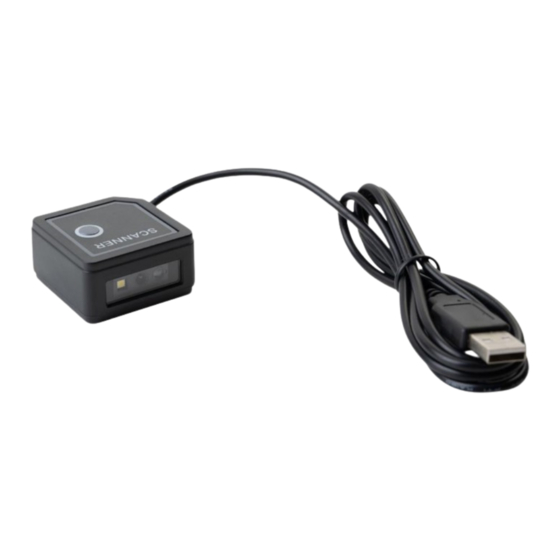

- Page 1 User Manual DT3008 Barcodescanner – DT3008 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 24-8-2023 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3008’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3008’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ...................... - Page 4 User manual ‘DT3008’ 2.5.8 Code 93 settings ....................23 2.5.9 Code 93 Length Setting ..................23 2.5.10 Codabar Settings ....................24 2.5.11 Codabar Length Setting ..................24 2.5.12 Interleave 2 of 5 (ITF5) setting ................25 2.5.13 ITF25 length setting ....................25 3.
-
Page 5: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 6: Reading
User manual ‘DT3008’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 7: System Setup
User manual ‘DT3008’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 8: Beeper Settings
User manual ‘DT3008’ 2.1.4 Beeper settings Volume set to High (50%) (default) Volume set to midrange (25%) Volume set to bass (12.5%) 2.1.5 Set the beep switch Open (default) Close 2.1.6 Power on beep switch Open (default) Close Datum : feb-2024 pagina 8 van 30 Versie : 1.0... -
Page 9: Read Success Beep Switch
User manual ‘DT3008’ 2.1.7 Read success beep switch Open (default) Close 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. After reading the code successfully or releasing the trigger key, the code reading ends and the next decoding needs to re-enter the low level state. -
Page 10: Repeat Read Switch
User manual ‘DT3008’ Pulse trigger mdoe 2.2.4 Repeat read switch The repeat read setting is only available in continuous mode. Allow repeat readings (default) Repeat reading is not allowed 2.2.5 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 11: Communication Settings
User manual ‘DT3008’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB CDC serial port RS-232 serial port 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) Portuguese Portuguese (Brazil) French Datum : feb-2024 pagina 11 van 30 Versie : 1.0... -
Page 12: Usb Keyboard Sending Speed
User manual ‘DT3008’ German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) 2.3.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance. -
Page 13: Control Characters
User manual ‘DT3008’ 20 ms 2.3.4 Control Characters Specific reference to the control character table, only the data content of the barcode is converted. Off (default) Control + ASCII mode Alt + Keypad mode 2.3.5 Serial port baud rate setting... -
Page 14: Serial Port Parity Bit Setting
User manual ‘DT3008’ Baud rate 57600 Baud rate 115200 2.3.6 Serial port parity bit setting No checksum (default) Odd calibration Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. -
Page 15: Custom Prefix On/Off Settings
User manual ‘DT3008’ 2.4.1 Custom prefix on/off settings Custom prefixes add a user-defined string before the decoded information. For example, if you allow to add a custom prefix and set the prefix to the string "AB", after reading the barcode with the data "123", the scanner adds the string "AB"... -
Page 16: Custom Suffix On/Off Settings
User manual ‘DT3008’ 2.4.3 Custom suffix on/off settings The custom suffix adds a user-defined string after the decoded information. For example, it is allowed to add a custom suffix and set the suffix to the string "AB", after reading the barcode with the data of "123", the scanner adds the string "AB"... -
Page 17: Custom Id Output Method
User manual ‘DT3008’ 2.4.5 Custom ID output method The user can use Code ID to identify the barcode type and the Code ID corresponding to each barcode type is customizable. The Code ID for all barcodes is 1 character. Close Code ID (default): Code ID is not spliced to the read string. -
Page 18: Terminator Settings
User manual ‘DT3008’ 2.4.7 Terminator settings The terminator suffix is used to mark the end of a complete piece of data information. The terminator suffix stands alone and does not participate in any other form of data formatting. The terminator suffix must be the last piece of data sent, and no additional data will be added thereafter. -
Page 19: Case Output Settings
User manual ‘DT3008’ 2.4.8 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. Normal output (default) Convert Case 2.5 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. -
Page 20: Ean 13 Settings
User manual ‘DT3008’ 2.5.3 EAN 13 settings EAN13 on (default) EAN13 off Enable EAN13 transmission Check Character Disable EAN13 transmission checks (default) Transmit EAN13 System Character (default) Do not Transmit EAN13 System Character 2.5.4 Code 39 Settings Code 39 on (default) -
Page 21: Code 39 Length Setting
User manual ‘DT3008’ Do not Transmit Code 39 Check Character Transmit Code 39 Check Character (default) Do not Transmit Code 39 start and stop Transmit Code 39 start and stop characters characters (default) Full ASCII On Full ASCII Off (default) 2.5.5 Code 39 Length Setting... -
Page 22: Code 128 Settings
User manual ‘DT3008’ 5. Scan "Maximum length setting" 6. Scan Digital Code "1" "2" (see Appendix 1) 7. Scan "Save" (see Appendix 1 to save or cancel) 8. Scan "Exit Settings" 2.5.6 Code 128 settings Code 128 on (default) Code 128 Off... -
Page 23: Code 93 Settings
User manual ‘DT3008’ 8. Scan "Exit Settings" 2.5.8 Code 93 settings Code 93 On (default) Code 93 Off Enable Code 93 Check Character (default) Disable Code 93 Check Character Transmit Code 93 check digit Do not Transmit Code 93 Check Digit (default) 2.5.9 Code 93 Length Setting... -
Page 24: Codabar Settings
User manual ‘DT3008’ 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. Scan "Save" (see Appendix 1 to save or cancel) 5. Scan "Maximum length setting" 6. Scan Digital Code "1" "2" (see Appendix 1) 7. -
Page 25: Interleave 2 Of 5 (Itf5) Setting
User manual ‘DT3008’ 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. Scan "Save" (see Appendix 1 to save or cancel) 5. Scan "Maximum length setting" 6. Scan Digital Code "1" "2" (see Appendix 1) 7. -
Page 26: Appendix
User manual ‘DT3008’ 3. Appendix numbered bar code For parameters requiring specific numeric values, scan the appropriately numbered bar code(s). Datum : feb-2024 pagina 26 van 30 Versie : 1.0... -
Page 27: Appendix 2：Cancel
User manual ‘DT3008’ 2. Appendix 2：CANCEL To change the selection or cancel an incorrect entry, scan the bar code below. Cancel 3. Appendix 3：Code ID Code character Code symbol UPC-A, UPC-E, EAN-8, EAN-13 Code 39, Code 32 Codabar Code 128, GS1-128,ISBT 128... -
Page 28: Appendix 4：Character Equivalents
User manual ‘DT3008’ 4. Appendix 4：Character Equivalents Keyboard Keyboard Ctrl Scan Value HEX Value Function Key Combination Key 1000 Null CTRL 2 1001 Keypad Enter CTRL A 1002 Caps lock CTRL B 1003 Right Arrow CTRL C 1004 Up Arrow... - Page 29 User manual ‘DT3008’ 1050 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073 1074 1075 1076 1077 1078 1079 1080 1081 1082 1083 1084...
-
Page 30: Datum : Feb-2024 Pagina 3 Van
User manual ‘DT3008’ 1109 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 Undefined Datum : feb-2024 pagina 30 van 30 Versie : 1.0...
