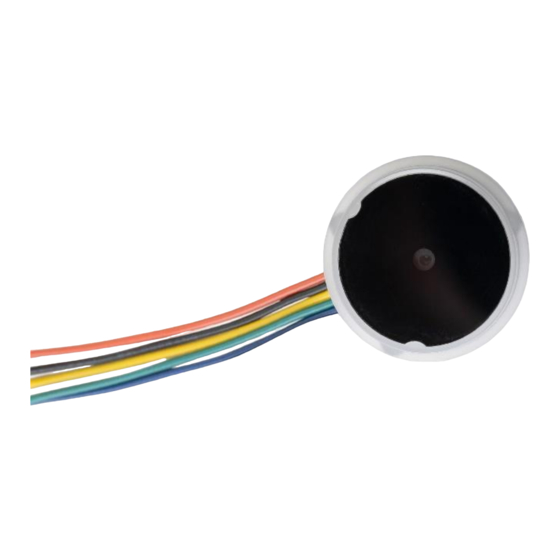

Barcodescanner – DT3212
:
0645733500
:
info@diwolar.nl
:
https://www.dtronic.nl/
Datum : 23-8-2023
Versie : 1.0
User Manual
DT3212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT3212 and is the answer not in the manual?

Questions and answers

Related Manuals for Dtronic DT3212

Summary of Contents for Dtronic DT3212

  • Page 1 User Manual DT3212 Barcodescanner – DT3212 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 23-8-2023 Versie : 1.0...

  • Page 2: Introduction

    User manual ‘DT3212’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service.

  • Page 3: Table Of Contents

    User manual ‘DT3212’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ......................
  • Page 4 User manual ‘DT3212’ 2.5.9 Code 39 Length Setting ..................23 2.5.10 Code 32 settings ....................23 2.5.11 Code 128 settings ....................24 2.5.12 Code 128 length setting ..................24 2.5.13 Code 93 settings ....................24 2.5.14 Code 93 Length Setting ..................25 2.5.15 Codabar Settings ....................

  • Page 5: Product

    - Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox...

  • Page 6: Reading

    User manual ‘DT3212’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code.

  • Page 7: System Setup

    User manual ‘DT3212’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code.

  • Page 8: Product User Settings

    User manual ‘DT3212’ 2.1.4 Product User Settings Save user default settings Restore user default settings 2.1.5 Set the beep switch Open (default) Close 2.1.6 Power on beep switch Open (default) Close 2.1.7 Read success beep switch Open (default) Close Datum : feb-2024 pagina 8 van 58 Versie : 1.0...

  • Page 9: Reading Mode Settings

    User manual ‘DT3212’ 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. After reading the code successfully or releasing the trigger key, the code reading ends and the next decoding needs to re-enter the low level state.

  • Page 10: One Read Timeout

    User manual ‘DT3212’ 2.2.4 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999.

  • Page 11: Communication Settings

    User manual ‘DT3212’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB CDC serial port RS-232 serial port 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) Portuguese Portuguese (Brazil) French Datum : feb-2024 pagina 11 van 58 Versie : 1.0...

  • Page 12: Usb Keyboard Sending Speed

    User manual ‘DT3212’ German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) 2.3.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance.

  • Page 13: Control Characters

    User manual ‘DT3212’ 20 ms 2.3.4 Control Characters Specific reference to the control character table, only the data content of the barcode is converted. Off (default) Control + ASCII mode Alt + Keypad mode 2.3.5 Serial communication settings The serial data bit is 8 and the serial stop bit is 1.

  • Page 14: Serial Port Parity Bit Setting

    User manual ‘DT3212’ Baud rate 19200 Baud rate 38400 Baud rate 57600 Baud rate 115200 2.3.7 Serial port parity bit setting No checksum (default) Odd calibration Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc.

  • Page 15: Customized Prefixes

    User manual ‘DT3212’ the data "123", the scanner adds the string "AB" before the string "123", and the host side receives "AB123". After the barcode reading data is "123", the scanner will add the string "AB" before the string "123", and the host side will receive "AB123".

  • Page 16: Custom Suffixes

    User manual ‘DT3212’ Enable Disable (default) 2.4.4 Custom suffixes Custom suffix adds a user-defined string after the decoded information, and the output format after customization is "barcode content + custom content". Set the custom suffix to 'a' (the hex value of a is 0x61) 1.

  • Page 17: Customize Code Id

    User manual ‘DT3212’ Disable CODE ID (default) Code ID prefix Code ID suffix Clear all custom Code IDs 2.4.6 Customize Code ID Please refer to the following example for how to modify the Code ID. Modify the Code ID of Codabar (Code ID:0x61) to "Y" (hexadecimal value 0x59).
  • Page 18 User manual ‘DT3212’ No terminator Enter (default) Line Feed (Down) Carriage return + Line feed (Enter+Down) Datum : feb-2024 pagina 18 van 58 Versie : 1.0...

  • Page 19: Symbologies

    User manual ‘DT3212’ 2.5 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. The fewer barcode types that are turned on, the faster the scanner will Scan. You can turn off the barcode types that will not be used to improve the performance of the scanner.

  • Page 20: Add-On Code Setting

    User manual ‘DT3212’ 2.5.3 Add-on code setting Adaptive UPC/EAN add-on codes Only Decode UPC/EAN Add-on codes Ignore UPC/EAN add-on codes (default) 2.5.4 EAN 13 settings EAN13 on (default) EAN13 off Enable EAN13 transmission Check Character Disable EAN13 transmission checks (default)

  • Page 21: Isbn Setting

    User manual ‘DT3212’ 2.5.5 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.5.6 UPC-A settings Transmit UPC-A check character (default) Do not Transmit UPC-A check character Convert UPC-A to EAN13 (default) Do not Convert UPC-A to EAN13 2.5.7 UPC-E settings...

  • Page 22: Code 39 Settings

    User manual ‘DT3212’ Convert UPC-E to UPC-A Do not Convert UPC-E to UPC-A (default) 2.5.8 Code 39 Settings Code 39 on (default) Code 39 Off Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character...

  • Page 23: Code 39 Length Setting

    User manual ‘DT3212’ Full ASCII On Full ASCII Off (default) 2.5.9 Code 39 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported.

  • Page 24: Code 128 Settings

    User manual ‘DT3212’ 2.5.11 Code 128 settings Code 128 on (default) Code 128 Off 2.5.12 Code 128 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported.

  • Page 25: Code 93 Length Setting

    User manual ‘DT3212’ Enable Code 93 Check Character (default) Disable Code 93 Check Character Transmit Code 93 check digit Do not Transmit Code 93 Check Digit (default) 2.5.14 Code 93 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan.

  • Page 26: Codabar Settings

    User manual ‘DT3212’ 2.5.15 Codabar Settings Codabar on (default) Codabar Off Transmit Codabar start and stop characters Do not Transmit Codabar start and stop characters (default) 2.5.16 Codabar Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan.

  • Page 27: Interleave 2 Of 5 (Itf5) Setting

    User manual ‘DT3212’ 2.5.17 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.5.18 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan.
  • Page 28 User manual ‘DT3212’ 6. Scan Digital Code "1" "2" (see Appendix 1) 7. Scan "Save" (see Appendix 1 to save or cancel) 8. Scan "Exit Settings". Datum : feb-2024 pagina 28 van 58 Versie : 1.0...

  • Page 29: Appendix

    User manual ‘DT3212’ 3. Appendix 3.1 Appendix 3.1.1 Appendix A: Data Code ～ Datum : feb-2024 pagina 29 van 58 Versie : 1.0...

  • Page 30: Appendix B: Parameter Setting Example

    User manual ‘DT3212’ ～ 3.1.2 Appendix B: Parameter setting example ◆ Example 1: Modify the prefix and customize it as DATA 1. Query the character table to obtain the hexadecimal value corresponding to the four characters of "DATA": "44", "41", "54", "41"...
  • Page 31 User manual ‘DT3212’ 1. Query the character table to obtain the hexadecimal value corresponding to the "A" character: "41" 2. Read the "Enable Setting Code"; (If it is already enabled, you can skip this step) 3. Read the setting code of "Modify EAN13 CODE ID"...

  • Page 32: Appendix C: Default Setting Table

    User manual ‘DT3212’ 3. Read the "modify RF information" setting code 4. Read the data codes "4" "6" "4" "1" "4" "9" "4" "C" one by one 5. Read the "Save" setting code ◆ Example 8: Modify the GS replacement character to "D"...
  • Page 33 User manual ‘DT3212’ Trigger method Level trigger Scope：100ms～25500ms, Single reading time 5000ms Step length 100ms, Manual mode 0 means unlimited Sleep time: 0-3276700ms Deep sleep closure Step length: 100ms Trigger conditions Command trigger 7E 00 08 01 00 02 01 AB CD...
  • Page 34 User manual ‘DT3212’ Power-on prompt Turn on Prompt for successful reading Turn on Duration of the prompt tone for successful 60ms Range 0-255ms reading LED prompt for successful reading Turn on Set code reading prompt Turn on Output data format...
  • Page 35 User manual ‘DT3212’ EAN-13 Read allow Force output additional code No requirement 2-digit additional code prohibit 5-digit additional code prohibit Check digit output Output EAN-8 Read allow Force output additional code No requirement 2-digit additional code prohibit 5-digit additional code...
  • Page 36 User manual ‘DT3212’ 5-digit additional code prohibit Check digit output Output Code128 Read allow Min length of information Max length of information Add prefix (11) function closure Code 39 Read allow Min length of information Max length of information Start character...
  • Page 37 User manual ‘DT3212’ Min length of information Max length of information Check format None Check Bit Output No Output Industrial 25 Read prohibit Min length of information Max length of information Check format None Check Bit Output No Output Matrix 2 of 5...
  • Page 38 User manual ‘DT3212’ Read prohibit AI with parentheses With brackets Limited RSS Read prohibit AI with parentheses With brackets Extended RSS Read prohibit Min length of information Max length of information AI with parentheses With brackets Standard 2 of 5...

  • Page 39: Appendix D: Common Serial Port Commands

    User manual ‘DT3212’ Read allow Mode 1 reading closure Add prefix (11) closure PDF417 Read allow Data Matrix Read allow Read multiple DM barcodes at the same time prohibit Micro QR Read allow Han Xin Code Read prohibit Micro PDF417...
  • Page 40 User manual ‘DT3212’ (Both the positioning light and the fill light will light up when taking pictures) Switch sensing mode (Both the positioning light and the 7E 00 08 0100 00 D7 CF 03 02 00 00 01 00 33 31...

  • Page 41: Appendix E: Code Id List

    User manual ‘DT3212’ 3.1.5 Appendix E: Code ID list Barcode type Corresponding characters Flag address EAN-13 0x91 EAN-8 0x92 UPC-A 0x93 UPC-E0 0x94 UPC-E1 0x95 Code 128 0x96 Code 39 0x97 Code 93 0x98 Codabar 0x99 Interleaved 2 of 5...
  • Page 42 User manual ‘DT3212’ QR Code 0xA2 Data Matrix 0xA3 PDF 417 0xA4 Mico QR 0xA5 Han Xin Code 0xA6 Micro PDF417 0xA7 Standard 2 of 5 0xA8 Plessey 0xA9 ChinaPost 25 0xAA Code 16K 0xAB Code 49 0xAC Maxi Code...

  • Page 43: Appendix F: Ascii Code Table

    User manual ‘DT3212’ 3.1.7 Appendix F: ASCII code table Hexadecimal Decimal Character (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return)
  • Page 44 User manual ‘DT3212’ (End of Medium) (Substitute) (Escape) (File Separator) (Group Separator) (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis)
  • Page 45 User manual ‘DT3212’ (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol) Datum : feb-2024 pagina 45 van 58 Versie : 1.0...
  • Page 46 User manual ‘DT3212’ (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent) Datum : feb-2024 pagina 46 van 58 Versie : 1.0...
  • Page 47 User manual ‘DT3212’ (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete) Datum : feb-2024 pagina 47 van 58 Versie : 1.0...

  • Page 48: Appendix G: List Of Batch Setting Code Parameters

    User manual ‘DT3212’ 3.1.8 Appendix G: List of Batch Setting Code Parameters Setting code Setting code function parameter content Remark If the setting code off, need to Setting code on 00000000 turn on the setting code firstly TTL-232 Serial mode...
  • Page 49 User manual ‘DT3212’ Single reading time-unlimited 02020000 Command trigger mode 02000001 Continuous mode 02000002 Trigger command response allowed 020A0001 Trigger command response prohibition 020A0000 Continuous mode button pause is not supported 020A0010 Continuous mode button pause support 020A0011 Reading interval-no interval...
  • Page 50 User manual ‘DT3212’ Active working level-high level 04010003 Active working level-low level 04010004 Set the alert tone-on 04020000 Set the alert tone-off 04020001 Boot Prompt-On 04030000 Boot Prompt-Off 04030001 LED prompt for successful reading-on 04040000 LED prompt for successful reading-off...
  • Page 51 User manual ‘DT3212’ Local invoicing mode 040B1000 Online billing mode 040B1100 Keypad digital output on 040C0000 Keypad digital output off 040C0001 Keypad operator output on 040C0002 Keypad operator output off 040C0003 Allow prefix 05000000 Prohibit adding prefix 05000001 Modify prefix...
  • Page 52 User manual ‘DT3212’ Add terminator CR 05040001 Add terminator TAB 05040002 Add terminator CRLF 05040003 Transfer the entire data 05050000 Only the Start segment is transmitted 05050001 Only the End segment is transmitted 05050002 Only the Center segment is transmitted...
  • Page 53 User manual ‘DT3212’ EAN8-5 bit additional code disable 07023100 Allow sending EAN8 check digit 07024000 Prohibit sending EAN8 check digit 07024100 Enable UPC-A 07030000 Disable UPC-A 07030100 UPC-A forced output additional code 07031000 UPC-A does not require additional codes to be...
  • Page 54 User manual ‘DT3212’ Code128 plus prefix (11)-off 07062100 Enable Code39 07070000 Disable Code39 07070100 The minimum length of Code39 information is 0 07071000 The minimum length of Code39 information is 4 07071004 Other lengths can modify the last two digits of the parameter...
  • Page 55 User manual ‘DT3212’ Enable Interleaved 2 of 5 070A0000 Disable Interleaved 2 of 5 070A0100 The minimum length of Interleaved 2 of 5 information is 0 070A1000 The minimum length of Interleaved 2 of 5 information is 4 070A1004 Other lengths can modify the last...
  • Page 56 User manual ‘DT3212’ Disable MSI Plessey 070E0100 The minimum length of MSI Plessey message is 070E1000 The minimum length of MSI Plessey message is 070E1004 Other lengths can modify the last two digits of the parameter The maximum length of MSI Plessey information is...
  • Page 57 User manual ‘DT3212’ The minimum length of Plessey message is 0 07211100 The minimum length of Plessey message is 4 07211104 Other lengths can modify the last The maximum length of Plessey information is two digits of the parameter 07211120...

  • Page 58: Datum : Feb-2024 Pagina 3 Van

    User manual ‘DT3212’ Allow to read multiple DMs at the same time 07151000 Prohibit reading multiple DM barcodes at the same time 07151100 Enable PDF417 07160000 Disable PDF417 07160100 Enable Hanxin code 07170000 Disable Hanxin code 07170100 Enable Micro PDF417...
