- Page 1 User Manual DT3260 Barcodescanner – DT3260 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 2-2-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3260’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3260’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ...................... - Page 4 User manual ‘DT3260’ 2.4.16 Code 32 settings ....................21 2.4.17 Code 128 settings ....................21 2.4.18 Code 128 length setting ..................22 2.4.19 Code 93 settings ....................22 2.4.20 Code 93 Length Setting ..................23 2.4.21 Codabar Settings ....................23 2.4.22 Codabar Length Setting ..................
-

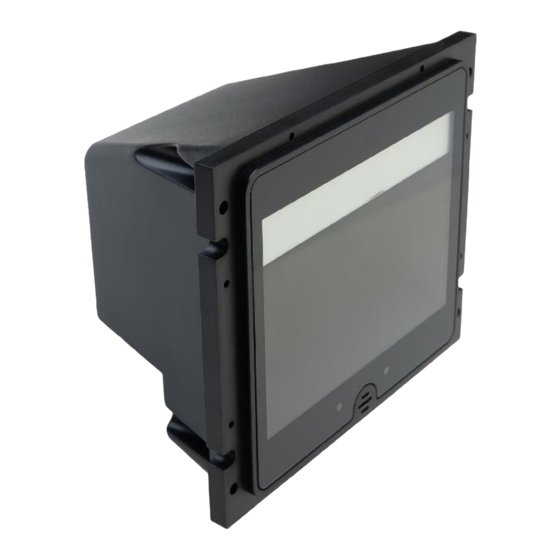

Page 5: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 6: Reading
User manual ‘DT3260’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 7: System Setup
User manual ‘DT3260’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 8: Led
User manual ‘DT3260’ 2.1.4 Led Enable Aimer Disable Aimer Enable Illumination Disable Illumination Always off Always on 2.1.5 Level lighting 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. -
Page 9: Continuous Mode (Default)
User manual ‘DT3260’ Level trigger mode 2.2.2 Continuous mode (default) When the reading setting code is switched to this mode, it enters the continuous reading state. In this mode, the "repeat read switch" can be used to prevent the same barcode from being read more than once. -
Page 10: Repeat Read Switch
User manual ‘DT3260’ 2.2.4 Repeat read switch The repeat read setting is only available in continuous mode. Allow repeat readings (default) Repeat reading is not allowed 2.2.5 Code reading timeout 30sec 300sec 2400sec 2.2.6 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 11: Communication Settings
User manual ‘DT3260’ Valid only in "Level Trigger Mode" and "Pulse Trigger Mode". 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB serial port RS-232 serial port USB CDC Enable virtual keyboard Disable virtual keyboard 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . -
Page 12: Serial Communication Settings
User manual ‘DT3260’ Spanish (Brazil) Portuguese Portuguese (Brazil) French German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) America 2.3.3 Serial communication settings Data bit 7 Data bit 8 Datum : feb-2024 pagina 12 van 31... -
Page 13: Serial Port Baud Rate Setting
User manual ‘DT3260’ Stop bit 1 Stop bit 2 2.3.4 Serial port baud rate setting Baud rate 4800 Baud rate 9600 (default) Baud rate 19200 Baud rate 38400 Baud rate 57600 Baud rate 115200 2.3.5 Serial port parity bit setting... -
Page 14: Terminator Settings
User manual ‘DT3260’ 2.3.6 Terminator settings The terminator suffix is used to mark the end of a complete piece of data information. The terminator suffix stands alone and does not participate in any other form of data formatting. The terminator suffix must be the last piece of data sent, and no additional data will be added thereafter. -
Page 15: Case Output Settings
User manual ‘DT3260’ 2.3.7 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. Normal output (default) Convert Case Convert all to Uppercase Convert All to lowercase 2.4 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. -
Page 16: All Barcodes
User manual ‘DT3260’ 2.4.3 All barcodes Close all barcodes Turn on all barcodes 2.4.4 EAN8 Settings EAN8 on (default) EAN8 off Enable EAN8 transmission Check Character Disable EAN8 transmit Check Character (default) Convert EAN8 to EAN13 Do not Convert EAN8 to EAN13 (default) 2.4.5 Code 11 Settings... -
Page 17: Add-On Code Setting
User manual ‘DT3260’ Transmit check bit Not transmit check bit 2.4.6 Add-on code setting Adaptive UPC/EAN add-on codes Only Decode UPC/EAN Add-on codes Ignore UPC/EAN add-on codes (default) 2.4.7 EAN 13 settings EAN13 on (default) EAN13 off Enable EAN13 transmission Check Character... -
Page 18: Issn Settings
User manual ‘DT3260’ 2.4.8 ISSN Settings Convert EAN-13 to ISSN Do not Convert EAN-13 to ISSN (default) 2.4.9 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.4.10 UPC-A settings Transmit UPC-A check character (default) Do not Transmit UPC-A check character... -
Page 19: Upc-E Settings
User manual ‘DT3260’ 2.4.11 UPC-E settings UPC-E on (default) UPC-E Off Do no Transmit UPC-E transmission Check Transmit UPC-E Check Character (default) Character Convert UPC-E to UPC-A Do not Convert UPC-E to UPC-A (default) Output header Do not output header 2.4.12 UPCE... -
Page 20: Code 39 Settings
User manual ‘DT3260’ 2.4.14 Code 39 Settings Code 39 on (default) Code 39 Off Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character Transmit Code 39 Check Character (default) Do not Transmit Code 39 start and stop... -
Page 21: Code 32 Settings
User manual ‘DT3260’ Minimum length setting Maximum length setting Example Set the scanner to Scan only barcodes with a minimum of 8 bytes and a maximum of 12 bytes. 1. Scan "Startup Settings" 2. Scan "Minimum length setting" 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. -
Page 22: Code 128 Length Setting
User manual ‘DT3260’ 2.4.18 Code 128 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 23: Code 93 Length Setting
User manual ‘DT3260’ 2.4.20 Code 93 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 24: Codabar Length Setting
User manual ‘DT3260’ 2.4.22 Codabar Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 25: Gs1 Databar Expanded
User manual ‘DT3260’ 2.4.25 GS1 Databar Expanded Enable Disable 2.4.26 DOT_CODE Enable Disable 2.4.27 Composite Enable Disable 2.4.28 Data matrix Code Enable Disable 2 of 5 enable 2 of 5 disable Datum : feb-2024 pagina 25 van 31 Versie : 1.0... -
Page 26: Msi
User manual ‘DT3260’ Matrix 2 of 5 check bit enable Matrix 2 of 5 check bit disable Output matrix 2 of 5 check bit Not output matrix 2 of 5 check bit 2.4.29 MSI Enable Disable 2.4.30 QR Enable Disable 2.4.31 Micro QR code... -
Page 27: Pdf417
User manual ‘DT3260’ 2.4.32 PDF417 Enable Disable 2.4.33 Micro PDF417 Enable Disable 2.4.34 Pharmacode Enable Disable 2.4.35 RSS-Expanded Enable Disable 2.4.36 RSS-Limited Enable Disable Datum : feb-2024 pagina 27 van 31 Versie : 1.0... -
Page 28: Maxicode
User manual ‘DT3260’ 2.4.37 Maxicode Enable Disable 2.4.38 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.4.39 Aztec code... -
Page 29: Itf25 Length Setting
User manual ‘DT3260’ 2.4.40 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 30: Appendix
User manual ‘DT3260’ 3. Appendix 3.1.1 ASCII Function Key Mapping Hexadecimal Decimal ASCII Disable Ctrl Char Alt+Unicode Null Ctrl+@ Alt + 000 Home Ctrl+A Alt + 001 Ctrl + B Alt + 002 Up Arrow Ctrl+C Alt + 003 Down Arrow... -
Page 31: Datum : Feb-2024 Pagina 3 Van
User manual ‘DT3260’ Enter Enter Enter 處 Page Up Ctrl + N Alt + 014 Page Down Ctrl+O Alt + 015 Datum : feb-2024 pagina 31 van 31 Versie : 1.0...
