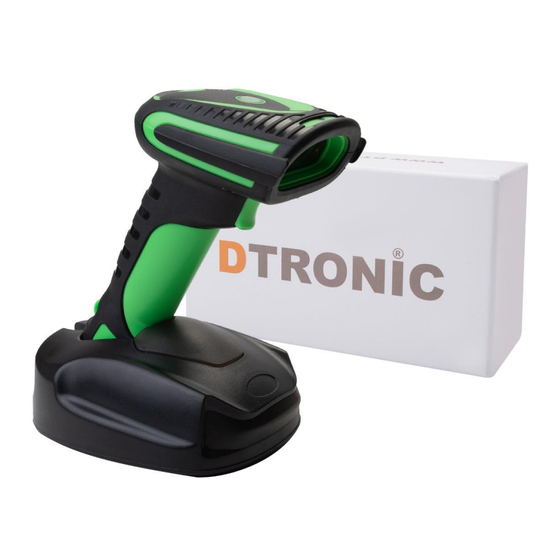

- Page 1 User Manual DT3427 Barcodescanner – DT3427 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 22-1-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3427’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3427’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................4 Function ..........................4 Unbox ..........................4 Start ..........................4 Window ..........................4 Reading ..........................5 Picture ..........................5 Led indicator ........................5 2. SYSTEM SETUP ........................6 System Setup ........................6 2.1.1 Setup code ...................... -
Page 4: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 5: Reading
User manual ‘DT3427’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 6: System Setup
User manual ‘DT3427’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 7: Wireless
User manual ‘DT3427’ 2.2 Wireless Bluetooth HID Mode Quick Pair Bluetooth SPP Mode Bluetooth BLE Mode Bluetooth BLE Mode Android Input Method USB-Virtual COM Port Enable Long press to enter Bluetooth HID Mode Pairing Disable Long press to enter Bluetooth HID... -
Page 8: Bluetooth Name
User manual ‘DT3427’ 2.2.1 Bluetooth name First scan the "Bluetooth name setting" and then scan another barcode that becomes the Bluetooth name of this scanner. NOTE: The longest Bluetooth name can be 16 bytes. If the Bluetooth barcode is more than 16 bytes, the Bluetooth takes only the first 16 bytes as the Bluetooth name. -
Page 9: Beeper Duration
User manual ‘DT3427’ 2.2.2 Beeper Duration Mute 2.2.3 Beeper settings Volume set to High (50%) (default) Volume set to midrange (25%) Volume set to bass (12.5%) 2.3 Reading mode settings 2.3.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. -
Page 10: Continuous Mode (Default)
User manual ‘DT3427’ 2.3.2 Continuous mode (default) When the reading setting code is switched to this mode, it enters the continuous reading state. In this mode, the "repeat read switch" can be used to prevent the same barcode from being read more than once. -
Page 11: Usb Keyboard
User manual ‘DT3427’ 2.4.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) Portuguese Portuguese (Brazil) French German (Austria) English UK Japanese German (Switzerland) French (Belgium) America 2.4.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance. -
Page 12: Data Format Setting
User manual ‘DT3427’ 5 ms (default) 10 ms 20 ms 2.5 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. will be added before and after the decoding information. "Custom suffix", "End suffix", etc. -
Page 13: Custom Prefix On/Off Settings
User manual ‘DT3427’ 2.5.2 Custom prefix on/off settings Custom prefixes add a user-defined string before the decoded information. For example, if you allow to add a custom prefix and set the prefix to the string "AB", after reading the barcode with the data "123", the scanner adds the string "AB"... -
Page 14: Symbologies
User manual ‘DT3427’ Raw data output (default) Front-end data output Intermediate data output Back-end data output Start and end data output 2.6 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. -
Page 15: Maxicode
User manual ‘DT3427’ 2.6.3 Maxicode Enable Disable 2.6.4 Aztec code Enable Disable Datum : feb-2024 pagina 15 van 15 Versie : 1.0...
