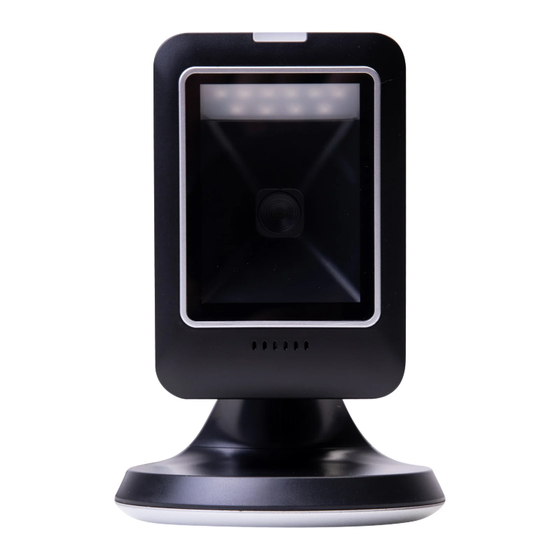

- Page 1 User Manual DT3163 Barcodescanner – DT3163 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 22-1-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3163’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3163’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ...................... - Page 4 User manual ‘DT3163’ 2.5.2 2D all symbologies ....................23 2.5.3 Inverse barcode ....................23 2.5.4 Data matrix mirror code ..................23 2.5.5 All barcodes ......................23 2.5.6 Code 11 Settings ....................24 2.5.7 Add-on code setting ..................... 24 2.5.8 EAN 13 settings ..................... 24 2.5.9 ISSN Settings ......................
-
Page 5: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 6: Reading
User manual ‘DT3163’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 7: System Setup
User manual ‘DT3163’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 8: Beeper Duration
User manual ‘DT3163’ Enable Illumination Disable Illumination Always off Always on 2.1.5 Beeper Duration Short Normal 2.7Khz 2.1.6 Beeper settings Volume set to High (50%) (default) Volume set to midrange (12,5%) Datum : feb-2024 pagina 8 van 42 Versie : 1.0... -
Page 9: Set The Beep Switch
User manual ‘DT3163’ 2.1.7 Set the beep switch Open (default) Close 2.1.8 Power on beep switch Open (default) Close 2.1.9 Read success beep switch Open (default) Close 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. -
Page 10: Continuous Mode (Default)
User manual ‘DT3163’ 2.2.2 Continuous mode (default) When the reading setting code is switched to this mode, it enters the continuous reading state. In this mode, the "repeat read switch" can be used to prevent the same barcode from being read more than once. -
Page 11: One Read Timeout
User manual ‘DT3163’ 2.2.5 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 12: Communication Settings
User manual ‘DT3163’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB serial port RS-232 serial port USB CDC Enable virtual keyboard Disable virtual keyboard USB HID (default) 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . -
Page 13: Usb Keyboard Sending Speed
User manual ‘DT3163’ Portuguese (Brazil) French German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) America 2.3.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance. -
Page 14: Set Usb Keyboard Sending Speed
User manual ‘DT3163’ 20 ms 2.3.4 Set USB keyboard sending speed USB keyboard send speed, unit is milliseconds (ms). The default value is 5ms, the settable time range: 0ms~200ms. Set USB keyboard sending speed Setting the USB keyboard to send speed of 50ms can be set by reading the following barcodes in order. -
Page 15: Serial Port Baud Rate Setting
User manual ‘DT3163’ Check bit E Check bit M Check bit N 2.3.6 Serial port baud rate setting Baud rate 4800 Baud rate 9600 (default) Baud rate 19200 Baud rate 38400 Baud rate 57600 Baud rate 115200 2.3.7 Serial port parity bit setting... -
Page 16: Data Format Setting
User manual ‘DT3163’ Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. will be added before and after the decoding information. "Custom suffix", "End suffix", etc. -
Page 17: Custom Suffix On/Off Settings
User manual ‘DT3163’ 2. Read the "Custom Prefix" setting code 3. Check the ASCII code of the character "a": the ASCII code of "a" is "0x61" (see ASCII code table) 4. Read data code: "6" "1" (see data code table) 5. -
Page 18: Custom Id Output Method
User manual ‘DT3163’ Custom suffixes 2.4.5 Custom ID output method The user can use Code ID to identify the barcode type and the Code ID corresponding to each barcode type is customizable. The Code ID for all barcodes is 1 character. -
Page 19: Terminator Settings
User manual ‘DT3163’ Custom Code ID 2.4.7 Terminator settings The terminator suffix is used to mark the end of a complete piece of data information. The terminator suffix stands alone and does not participate in any other form of data formatting. The terminator suffix must be the last piece of data sent, and no additional data will be added thereafter. -
Page 20: Ctrl + X
User manual ‘DT3163’ 2.4.8 CTRL + X Non- printable Keyboard Control + ASCII ( CTRL+ X) Mode ASCII control characters Windows Mode Control + X Control + X Mode Off Mode On CTRL + X Char CTRL + X function... -
Page 21: Case Output Settings
User manual ‘DT3163’ CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ] CTRL+ ^ CTRL+ - NP Enter 2.4.9 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. -
Page 22: Data Output Settings
User manual ‘DT3163’ 2.4.10 Data output settings OPMERKING: The prefix and suffix are not processed, and the prefix and suffix are output normally. Raw data output (default) Front-end data output Intermediate data output Back-end data output Start and end data output 2.4.11 Pre/Post data length setting... -
Page 23: All Symbologies
User manual ‘DT3163’ 2.5.1 1D all symbologies Enable Disable 2.5.2 2D all symbologies Enable Disable 2.5.3 Inverse barcode Decode regular only Decode inverse only 2.5.4 Data matrix mirror code Enable Disable 2.5.5 All barcodes Close all barcodes Turn on all barcodes... -
Page 24: Code 11 Settings
User manual ‘DT3163’ 2.5.6 Code 11 Settings Enable Disable 1 check bit 2 check bits Transmit check bit Not transmit check bit 2.5.7 Add-on code setting Adaptive UPC/EAN add-on codes Only Decode UPC/EAN Add-on codes Ignore UPC/EAN add-on codes (default) 2.5.8 EAN 13 settings... -
Page 25: Issn Settings
User manual ‘DT3163’ 2.5.9 ISSN Settings Convert EAN-13 to ISSN Do not Convert EAN-13 to ISSN (default) 2.5.10 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.5.11 UPC-A settings Transmit UPC-A check character (default) Do not Transmit UPC-A check character... -
Page 26: Upce
User manual ‘DT3163’ UPC-E on (default) UPC-E Off Do no Transmit UPC-E transmission Check Transmit UPC-E Check Character (default) Character Convert UPC-E to UPC-A Do not Convert UPC-E to UPC-A (default) 2.5.13 UPCE Enable Disable 2.5.14 EAN/UPC Enable Disable 2.5.15 Code 39 Settings... -
Page 27: Code 39 Length Setting
User manual ‘DT3163’ Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character Transmit Code 39 Check Character (default) Do not Transmit Code 39 start and stop Transmit Code 39 start and stop characters... -
Page 28: Code 32 Settings
User manual ‘DT3163’ 2.5.17 Code 32 settings Convert Code39 to Code32 Do not Convert Code39 to Code32 (default) 2.5.18 Code 128 settings Code 128 on (default) Code 128 Off 2.5.19 Code 128 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 29: Code 93 Settings
User manual ‘DT3163’ 2.5.20 Code 93 settings Code 93 On (default) Code 93 Off Enable Code 93 Check Character (default) Disable Code 93 Check Character 2.5.21 Code 93 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 30: Codabar Settings
User manual ‘DT3163’ 2.5.22 Codabar Settings Codabar on (default) Codabar Off Transmit Codabar start and stop characters Do not Transmit Codabar start and stop characters (default) Not check Enable check transmit check bit 2.5.23 Codabar Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 31: Gs1 Databar Limited
User manual ‘DT3163’ 2.5.24 GS1 Databar Limited Enable Disable 2.5.25 GS1 Databar omnidirectional Enable Disable 2.5.26 GS1 Databar Expanded Enable Disable 2.5.27 Data matrix Code Enable Disable 2 of 5 enable 2 of 5 disable Datum : feb-2024 pagina 31 van 42... -
Page 32: Msi
User manual ‘DT3163’ Matrix 2 of 5 check bit enable Matrix 2 of 5 check bit disable 2.5.28 MSI Enable Disable 2.5.29 QR Enable Disable Enable QR code URL link Disable QR code URL link 2.5.30 Micro QR code Enable... -
Page 33: Pdf417
User manual ‘DT3163’ 2.5.31 PDF417 Enable Disable 2.5.32 Micro PDF417 Enable Disable 2.5.33 RSS-Expanded Enable Disable 2.5.34 RSS-Limited Enable Disable 2.5.35 RSS-14 Enable Disable Datum : feb-2024 pagina 33 van 42 Versie : 1.0... -
Page 34: Straight 2 Of 5 Industrial
User manual ‘DT3163’ 2.5.36 Straight 2 of 5 Industrial Enable Disable 2.5.37 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.5.38 Aztec code... -
Page 35: Itf25 Length Setting
User manual ‘DT3163’ 2.5.39 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 36: Appendix
User manual ‘DT3163’ 3. Appendix 3.1.1 Data digital barcodes Datum : feb-2024 pagina 36 van 42 Versie : 1.0... -
Page 37: Ascii Character Table
User manual ‘DT3163’ 3.1.2 ASCII Character table Char ASCII Character Value Keystroke NUL (Null char.) 0x00 Null 0x00 Ctrl+2 SOH (Start of Header) 0x01 Keypad Enter 0x58 Ctrl+A STX (Start of Text) 0x02 Caps Lock 0x39 Ctrl+B ETX (End of Text) -
Page 38: Ascii Table
User manual ‘DT3163’ GS (Group Separator) 0x1d 0x41 Ctrl+] RS (Request to Send) 0x1e 0x42 Ctrl+6 US (Unit Separator) 0x1f 0x43 Ctrl+- 3.1.3 ASCII Table Binary Char NUL (NULL) SOH (Start Of Headling) STX (Start Of Text) ETX (End Of Text) - Page 39 User manual ‘DT3163’ 10100 DC4 (Device Control 4) 10101 NAK (Negative Acknowledge) 10110 SYN (Synchronous Idle) 10111 ETB (End of Transmission Block) 11000 CAN (Cancel) 11001 EM (End of Medium) 11010 SUB (Substitute) 11011 ESC (Escape) 11100 FS (File Separator)
- Page 40 User manual ‘DT3163’ 111000 111001 111010 111011 111100 < 111101 111110 > 111111 1000000 1000001 1000010 1000011 1000100 1000101 1000110 1000111 1001000 1001001 1001010 1001011 1001100 1001101 1001110 1001111 1010000 1010001 1010010 1010011 1010100 1010101 1010110 1010111 1011000 1011001 1011010...
- Page 41 User manual ‘DT3163’ 1011101 1011110 1011111 1100000 1100001 1100010 1100011 1100100 1100101 1100110 1100111 1101000 1101001 1101010 1101011 1101100 1101101 1101110 1101111 1110000 1110001 1110010 1110011 1110100 1110101 1110110 1110111 1111000 1111001 1111010 1111011 1111100 1111101 1111110 1111111 DEL (Delete)
-
Page 42: Symbology Table
User manual ‘DT3163’ 3.1.4 Symbology table CODE ID AIM ID Symbology Code ID All Symbology 0x99 Codabar 0x61 Code 11 0x68 Code 128(Including GS1 128)、GS1-128 0x6A ISBT 128 0x6A Code 32 0x3C < Code 39 0x62 Code 93 0x69 EAN-13(including ISBN)
