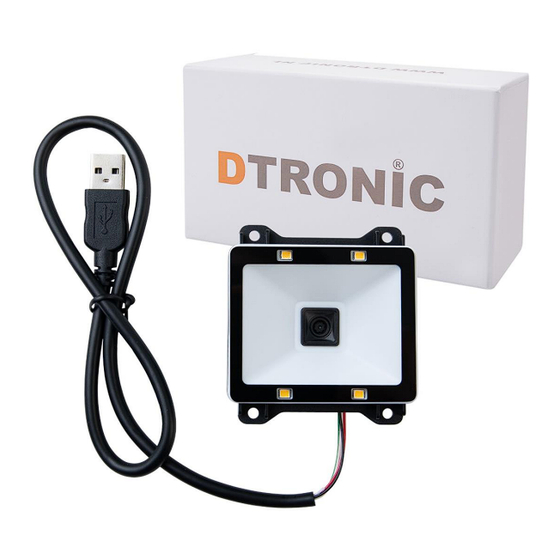

- Page 1 User Manual DT3222 Barcodescanner – DT3222 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 22-1-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT3222’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT3222’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................6 Function ..........................6 Unbox ..........................6 Start ..........................6 Window ..........................6 Reading ..........................7 Picture ..........................7 Led indicator ........................7 2. SYSTEM SETUP ........................8 System Setup ........................8 2.1.1 Setup code ...................... - Page 4 User manual ‘DT3222’ 2.4.10 Case output settings ..................... 25 2.4.11 Data output settings ..................... 25 Symbologies ........................26 2.5.1 1D all symbologies ....................26 2.5.2 2D all symbologies ....................26 2.5.3 Inverse barcode ....................26 2.5.4 All barcodes ......................27 2.5.5 EAN8 Settings .......................
- Page 5 User manual ‘DT3222’ 3.1.1 Appendix ....................... 42 Datum : feb-2024 pagina 5 van 48 Versie : 1.0...
-
Page 6: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 7: Reading
User manual ‘DT3222’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 8: System Setup
User manual ‘DT3222’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 9: Product User Settings
User manual ‘DT3222’ 2.1.3 Product User Settings Save user default settings Restore user default settings 2.1.4 Led Enable Aimer Disable Aimer Enable Illumination Disable Illumination Always off Always on 2.1.5 Beeper Duration Short Normal Datum : feb-2024 pagina 9 van 48... -
Page 10: Beeper Settings
User manual ‘DT3222’ 2.7Khz Mute 2.1.6 Beeper settings Volume set to High (50%) (default) Volume set to midrange (25%) Volume set to bass (12.5%) 2.1.7 Set the beep switch Open (default) Close 2.1.8 Power on beep switch Open (default) Close 2.1.9 Read success beep switch... -
Page 11: Reading Mode Settings
User manual ‘DT3222’ 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. After reading the code successfully or releasing the trigger key, the code reading ends and the next decoding needs to re-enter the low level state. -
Page 12: Auto Scan Mode
User manual ‘DT3222’ 2.2.4 Auto Scan mode Auto scan Delay 50ms Delay 100ms Delay 300ms 2.2.5 Repeat read switch The repeat read setting is only available in continuous mode. Allow repeat readings (default) Repeat reading is not allowed 2.2.6 Code reading timeout... -
Page 13: One Read Timeout
User manual ‘DT3222’ 2.2.7 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 14: Communication Settings
User manual ‘DT3222’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB serial port RS-232 serial port USB CDC Enable virtual keyboard Disable virtual keyboard 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Datum : feb-2024 pagina 14 van 48 Versie : 1.0... -
Page 15: Control Characters
User manual ‘DT3222’ Spanish (Brazil) Portuguese Portuguese (Brazil) French German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) 2.3.3 Control Characters Specific reference to the control character table, only the data content of the barcode is converted. Off (default) -
Page 16: Serial Communication Settings
User manual ‘DT3222’ Alt + Keypad mode 2.3.4 Serial communication settings Data bit 7 Data bit 8 Stop bit 1 Stop bit 2 Check bit O Check bit S Check bit E Check bit M Check bit N Datum : feb-2024 pagina 16 van 48 Versie : 1.0... -
Page 17: Serial Port Baud Rate Setting
User manual ‘DT3222’ 2.3.5 Serial port baud rate setting Baud rate 4800 Baud rate 9600 (default) Baud rate 19200 Baud rate 38400 Baud rate 57600 Baud rate 115200 2.3.6 Serial port output UTF-8 Serial output according to barcode content Datum : feb-2024 pagina 17 van 48 Versie : 1.0... -
Page 18: Serial Port Parity Bit Setting
User manual ‘DT3222’ 2.3.7 Serial port parity bit setting No checksum (default) Odd calibration Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. will be added before and after the decoding information. "Custom suffix", "End suffix", etc. -
Page 19: Customized Prefixes
User manual ‘DT3222’ Enable Disable (default) Clear all custom prefixes 2.4.3 Customized prefixes The custom prefix adds a user-defined string before the decoded information, and the output format after customization is "Custom Content + Barcode Content". Set the custom prefix to 'a' (the hex value of a is 0x61) 1. -
Page 20: Custom Suffixes
User manual ‘DT3222’ Enable Disable (default) Clear all custom suffixes Output all 2.4.5 Custom suffixes Custom suffix adds a user-defined string after the decoded information, and the output format after customization is "barcode content + custom content". Set the custom suffix to 'a' (the hex value of a is 0x61) 1. -
Page 21: Customize Code Id
User manual ‘DT3222’ Disable CODE ID (default) Code ID prefix Code ID suffix Clear all custom Code IDs 2.4.7 Customize Code ID Please refer to the following example for how to modify the Code ID. Modify the Code ID of Codabar (Code ID:0x61) to "Y" (hexadecimal value 0x59). - Page 22 User manual ‘DT3222’ No terminator Enter (default) Line Feed (Down) Carriage return + Line feed (Enter+Down) Datum : feb-2024 pagina 22 van 48 Versie : 1.0...
-
Page 23: Ctrl + X
User manual ‘DT3222’ 2.4.9 CTRL + X Transmit non visible character Don’t transmit non visible character Non- printable Keyboard Control + ASCII ( CTRL+ X) Mode ASCII control characters Windows Mode Control + X Mode On Control + X Mode Off... - Page 24 User manual ‘DT3222’ CTRL+ O Open CTRL+ P Print CTRL+ Q Quit Home PrtScn CTRL+ R Backspace CTRL+ S Save CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ]...
-
Page 25: Case Output Settings
User manual ‘DT3222’ 2.4.10 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. Normal output (default) Convert Case Convert all to Uppercase Convert All to lowercase 2.4.11 Data output settings OPMERKING: The prefix and suffix are not processed, and the prefix and suffix are output normally. -
Page 26: Symbologies
User manual ‘DT3222’ 2.5 Symbologies Each type of barcode has its own unique properties, and the setup codes in this chapter allow you to adjust the scanner to accommodate these property changes. The fewer barcode types that are turned on, the faster the scanner will Scan. You can turn off the barcode types that will not be used to improve the performance of the scanner. -
Page 27: All Barcodes
User manual ‘DT3222’ 2.5.4 All barcodes Close all barcodes Turn on all barcodes 2.5.5 EAN8 Settings Enable EAN8 transmission Check Character Disable EAN8 transmit Check Character (default) 2.5.6 Code 11 Settings Enable Disable 1 check bit 2 check bits Transmit check bit... -
Page 28: Ean 13 Settings
User manual ‘DT3222’ 2.5.7 EAN 13 settings Enable EAN13 transmission Check Character Disable EAN13 transmission checks (default) 2.5.8 ISSN Settings Convert EAN-13 to ISSN Do not Convert EAN-13 to ISSN (default) 2.5.9 HANXIN Enable Disable 2.5.10 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.5.11 UPC-A settings... -
Page 29: Upc-E Settings
User manual ‘DT3222’ Transmit UPC-A check character (default) Do not Transmit UPC-A check character 2.5.12 UPC-E settings UPC-E on (default) UPC-E Off Do no Transmit UPC-E transmission Check Transmit UPC-E Check Character (default) Character 2.5.13 UPCE Enable Disable 2.5.14 EAN/UPC... -
Page 30: Code 39 Settings
User manual ‘DT3222’ 2.5.15 Code 39 Settings Code 39 on (default) Code 39 Off Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character Transmit Code 39 Check Character (default) Do not Transmit Code 39 start and stop... -
Page 31: Code 32 Settings
User manual ‘DT3222’ Minimum length setting Maximum length setting Example Set the scanner to Scan only barcodes with a minimum of 8 bytes and a maximum of 12 bytes. 1. Scan "Startup Settings" 2. Scan "Minimum length setting" 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. -
Page 32: Code 93 Settings
User manual ‘DT3222’ Minimum length setting Maximum length setting Example Set the scanner to Scan only barcodes with a minimum of 8 bytes and a maximum of 12 bytes. 1. Scan "Startup Settings" 2. Scan "Minimum length setting" 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. -
Page 33: Codabar Settings
User manual ‘DT3222’ Minimum length setting Maximum length setting Example Set the scanner to Scan only barcodes with a minimum of 8 bytes and a maximum of 12 bytes. 1. Scan "Startup Settings" 2. Scan "Minimum length setting" 3. Scan Digital Code "8" (see Appendix 1 for data and edit barcode) 4. -
Page 34: Codablock A
User manual ‘DT3222’ OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. Minimum length setting... -
Page 35: Gs1 Databar Limited
User manual ‘DT3222’ 2.5.26 GS1 Databar Limited Enable Disable 2.5.27 GS1 Databar omnidirectional Enable Disable 2.5.28 GS1 Databar Expanded Enable Disable 2.5.29 DOT_CODE Enable Disable 2.5.30 Data matrix Code Datum : feb-2024 pagina 35 van 48 Versie : 1.0... -
Page 36: Msi
User manual ‘DT3222’ Enable Disable Enable Inverse DM Disable Inverse DM 2 of 5 enable 2 of 5 disable Matrix 2 of 5 check bit enable Matrix 2 of 5 check bit disable Output matrix 2 of 5 check bit Not output matrix 2 of 5 check bit 2.5.31 MSI... -
Page 37: Micro Qr Code
User manual ‘DT3222’ Enable Disable Enable inverse QR Disable inverse QR 2.5.33 Micro QR code Enable Disable Inverse micro QR Disable inverse micro QR 2.5.34 PDF417 Enable Disable Normal baroce Normal and inverse Datum : feb-2024 pagina 37 van 48... -
Page 38: Micro Pdf417
User manual ‘DT3222’ 2.5.35 Micro PDF417 Enable Disable 2.5.36 Pharmacode Enable Disable 2.5.37 RSS-Expanded Enable Disable 2.5.38 RSS-Limited Enable Disable Datum : feb-2024 pagina 38 van 48 Versie : 1.0... -
Page 39: Rss-14
User manual ‘DT3222’ 2.5.39 RSS-14 Enable Disable 2.5.40 Telepen Enable Disable 2.5.41 Straight 2 of 5 Industrial Enable Disable 2.5.42 Maxicode Enable Disable Datum : feb-2024 pagina 39 van 48 Versie : 1.0... -
Page 40: Interleave 2 Of 5 (Itf5) Setting
User manual ‘DT3222’ 2.5.43 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.5.44 Aztec code Enable Disable... -
Page 41: Itf25 Length Setting
User manual ‘DT3222’ Enable inverse Aztec Disable inverse Aztec 2.5.45 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 42: Appendix
User manual ‘DT3222’ 3. Appendix 3.1.1 Appendix Decimal base Character (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) - Page 43 User manual ‘DT3222’ ( NegativeAcknowledgment) (Synchronous Idle) (End of Trans. Block) (Cancel) (End of Medium) (Substitute) (Escape) (File Separator) (Group Separator) (Request to Send) (Unit Separator) Decimal base Character (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) &...
- Page 44 User manual ‘DT3222’ (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol) Decimal base Character Datum : feb-2024 pagina 44 van 48 Versie : 1.0...
- Page 45 User manual ‘DT3222’ (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent) Datum : feb-2024 pagina 45 van 48 Versie : 1.0...
- Page 46 User manual ‘DT3222’ Decimal base Character Datum : feb-2024 pagina 46 van 48 Versie : 1.0...
- Page 47 User manual ‘DT3222’ (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete) Non- printable Keyboard Control + ASCII ( CTRL+ X) Mode ASCII control characters Windows Mode Control + X Mode Control + X Mode Char CTRL + X CTRL + X...
-
Page 48: Datum : Feb-2024 Pagina 3 Van
User manual ‘DT3222’ PrtScn CTRL+ R Delete CTRL+ S Save Tab+ shift CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ] CTRL+ ^ CTRL+ - Datum : feb-2024 pagina 48 van 48 Versie : 1.0...
