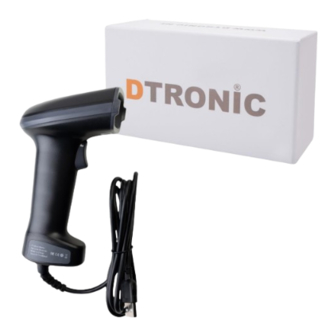

Summary of Contents for Dtronic DT322-O
- Page 1 User Manual DT322-O Barcodescanner – DT322-O 0645733500 info@diwolar.nl https://www.dtronic.nl/ Datum : 2-2-2024 Versie : 1.0...
-
Page 2: Introduction
User manual ‘DT322-O’ Introduction Thank you for trusting a product from DTRONIC. Please read the contents of the user manual carefully in order to use the products safely and effectively. You are advised to keep this manual correctly for your installation and as a reference. Please do not disassemble the product or tear off the seal, otherwise we will not provide warranty or replacement service. -
Page 3: Table Of Contents
User manual ‘DT322-O’ Inhoud INTRODUCTION .......................... 2 1. PRODUCT ..........................5 Function ..........................5 Unbox ..........................5 Start ..........................5 Window ..........................5 Reading ..........................6 Picture ..........................6 Led indicator ........................6 2. SYSTEM SETUP ........................7 System Setup ........................7 2.1.1 Setup code ...................... - Page 4 User manual ‘DT322-O’ 2.5.2 2D all symbologies ....................23 2.5.3 All barcodes ......................23 2.5.4 EAN8 Settings ....................... 23 2.5.5 Code 11 Settings ....................24 2.5.6 EAN 13 settings ..................... 24 2.5.7 ISSN Settings ......................25 2.5.8 HANXIN ......................... 25 2.5.9 ISBN setting ......................
-
Page 5: Product
- Basically the scanner scans the 95% of bar codes, remaining 5% can be set as desired with this manual. - There are patented parts in the scanner, DTRONIC has the rights to sell these items on the Dutch, Belgian and German market 1.2 Unbox... -
Page 6: Reading
User manual ‘DT322-O’ 1.5 Reading If the bar code is small, it should be closer to the scan window; if the bar code is large, it should be further away from the scan window for easier reading. If the bar code is highly reflective (for example, the coated surface), you may need to tilt the bar code at an angle to scan the bar code. -
Page 7: System Setup
User manual ‘DT322-O’ 2. System Setup 2.1 System Setup Option and function setting mainly by reading a series of special bar codes. In this chapter, we give you a detailed introduction to the options and functions available for user setup and the corresponding setup code. -
Page 8: Beeper Duration
User manual ‘DT322-O’ 2.1.4 Beeper Duration Mute 2.1.5 Beeper settings Volume set to High (50%) (default) Volume set to midrange (25%) Volume set to bass (12.5%) 2.1.6 Set the beep switch Open (default) Close 2.1.7 Power on beep switch Open (default) -
Page 9: Read Success Beep Switch
User manual ‘DT322-O’ 2.1.8 Read success beep switch Open (default) Close 2.2 Reading mode settings 2.2.1 Level trigger mode Enter the reading state when the trigger key pin is at low level. Press and hold the trigger key to start reading code. After reading the code successfully or releasing the trigger key, the code reading ends and the next decoding needs to re-enter the low level state. -
Page 10: Auto Scan Mode
User manual ‘DT322-O’ Pulse trigger mode High sensitivity Low sensitivity 2.2.4 Auto Scan mode Auto scan 2.2.5 Code reading timeout 30sec 300sec 2400sec Datum : feb-2024 pagina 10 van 44 Versie : 1.0... -
Page 11: One Read Timeout
User manual ‘DT322-O’ 2.2.6 One read timeout One time reading timeout time, the unit is 0.1 seconds. The default value is 30 (3 seconds), when set to 0, it means that the device is always in the reading state, and the time range can be set: 0~999. -
Page 12: Communication Settings
User manual ‘DT322-O’ 2.3 Communication settings 2.3.1 Communication settings USB HID (default) USB CDC RS-232 serial port 2.3.2 USB keyboard Portuguese (Brazil) cannot output "?" and "/" . Nederlands Italian Spanish (Brazil) Portuguese Portuguese (Brazil) French Datum : feb-2024 pagina 12 van 44... -
Page 13: Usb Keyboard Sending Speed
User manual ‘DT322-O’ German (Austria) Turkish Q Turkish F English (UK) Japanese German (Switzerland) French (Belgium) America 2.3.3 USB keyboard sending speed If there is missed data at the receiver side, the occurrence speed should be turned down, which is easy to occur at the receiver side with poor performance. -
Page 14: Set Usb Keyboard Sending Speed
User manual ‘DT322-O’ 2.3.4 Set USB keyboard sending speed USB keyboard send speed, unit is milliseconds (ms). The default value is 5ms, the settable time range: 0ms~200ms. Set USB keyboard sending speed Setting the USB keyboard to send speed of 50ms can be set by reading the following barcodes in order. -
Page 15: Serial Communication Settings
User manual ‘DT322-O’ 2.3.6 Serial communication settings Data bit 7 Data bit 8 Stop bit 1 Stop bit 2 2.3.7 Serial port baud rate setting Baud rate 4800 Baud rate 9600 (default) Baud rate 19200 Baud rate 38400 Baud rate 57600... -
Page 16: Serial Port Output
User manual ‘DT322-O’ 2.3.8 Serial port output UTF-8 Serial output according to barcode content 2.3.9 Serial port parity bit setting No checksum (default) Odd calibration Even Check 2.4 Data format setting Length of custom prefix and suffix: (0~10) characters, if set to "on", "Code ID prefix", "custom prefix", "end suffix", etc. -
Page 17: Custom Prefix On/Off Settings
User manual ‘DT322-O’ 2.4.1 Custom prefix on/off settings Custom prefixes add a user-defined string before the decoded information. For example, if you allow to add a custom prefix and set the prefix to the string "AB", after reading the barcode with the data "123", the scanner adds the string "AB"... -
Page 18: Custom Suffixes
User manual ‘DT322-O’ Enable Disable (default) 2.4.4 Custom suffixes Custom suffix adds a user-defined string after the decoded information, and the output format after customization is "barcode content + custom content". Set the custom suffix to 'a' (the hex value of a is 0x61) 1. -
Page 19: Terminator Settings
User manual ‘DT322-O’ Code ID suffix Clear all custom Code IDs 2.4.6 Terminator settings The terminator suffix is used to mark the end of a complete piece of data information. The terminator suffix stands alone and does not participate in any other form of data formatting. The terminator suffix must be the last piece of data sent, and no additional data will be added thereafter. -
Page 20: Ctrl + X
User manual ‘DT322-O’ 2.4.7 CTRL + X Non- printable Keyboard Control + ASCII ( CTRL+ X) Mode ASCII control characters Windows Mode Control + X Control + X Mode Off Mode On CTRL + X Char CTRL + X function... - Page 21 User manual ‘DT322-O’ CTRL+ T CTRL+ U CTRL+ V Paste CTRL+ W CTRL+ X CTRL+ Y CTRL+ Z CTRL+ [ CTRL+ \ CTRL+ ] CTRL+ ^ CTRL+ - NP Enter Datum : feb-2024 pagina 21 van 44 Versie : 1.0...
-
Page 22: Case Output Settings
User manual ‘DT322-O’ 2.4.8 Case output settings Case conversion for characters in a string, prefix and suffix have no effect. Normal output (default) Convert Case Convert all to Uppercase Convert All to lowercase 2.4.9 Data output settings OPMERKING: The prefix and suffix are not processed, and the prefix and suffix are output normally. -
Page 23: All Symbologies
User manual ‘DT322-O’ 2.5.1 1D all symbologies Enable Disable 2.5.2 2D all symbologies Enable Disable 2.5.3 All barcodes Close all barcodes Turn on all barcodes 2.5.4 EAN8 Settings EAN8 on (default) EAN8 off Enable EAN8 transmission Check Character Disable EAN8 transmit Check Character... -
Page 24: Code 11 Settings
User manual ‘DT322-O’ Convert EAN8 to EAN13 Do not Convert EAN8 to EAN13 (default) 2.5.5 Code 11 Settings Enable Disable Transmit check bit Not transmit check bit 2.5.6 EAN 13 settings EAN13 on (default) EAN13 off Enable EAN13 transmission Check Character... -
Page 25: Issn Settings
User manual ‘DT322-O’ 2.5.7 ISSN Settings Convert EAN-13 to ISSN Do not Convert EAN-13 to ISSN (default) 2.5.8 HANXIN Enable Disable 2.5.9 ISBN setting Convert EAN13 to ISBN Do not Convert EAN13 to ISBN (default) 2.5.10 UPC-A settings Transmit UPC-A check character (default) -
Page 26: Upc-E Settings
User manual ‘DT322-O’ 2.5.11 UPC-E settings UPC-E on (default) UPC-E Off Do no Transmit UPC-E transmission Check Transmit UPC-E Check Character (default) Character Convert UPC-E to UPC-A Do not Convert UPC-E to UPC-A (default) 2.5.12 UPCE Enable Disable Datum : feb-2024 pagina 26 van 44 Versie : 1.0... -
Page 27: Ean/Upc
User manual ‘DT322-O’ 2.5.13 EAN/UPC Enable Disable 2.5.14 Code 39 Settings Code 39 on (default) Code 39 Off Enable Code 39 Check Character Disable Code 39 Check Character (default) Do not Transmit Code 39 Check Character Transmit Code 39 Check Character... -
Page 28: Code 39 Length Setting
User manual ‘DT322-O’ 2.5.15 Code 39 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 29: Code 128 Settings
User manual ‘DT322-O’ 2.5.17 Code 128 settings Code 128 on (default) Code 128 Off Transmit Code 128 Check Character Do not Transmit Code 128 Check Character (default) 2.5.18 Code 128 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 30: Code 93 Settings
User manual ‘DT322-O’ 2.5.19 Code 93 settings Code 93 On (default) Code 93 Off 2.5.20 Code 93 Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 31: Codabar Settings
User manual ‘DT322-O’ 2.5.21 Codabar Settings Codabar on (default) Codabar Off Transmit Codabar start and stop characters Do not Transmit Codabar start and stop characters (default) Not check Enable check transmit check bit 2.5.22 Codabar Length Setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. -
Page 32: Gs1 Databar Limited
User manual ‘DT322-O’ 6. Scan Digital Code "1" "2" (see Appendix 1) 7. Scan "Save" (see Appendix 1 to save or cancel) 8. Scan "Exit Settings". 2.5.23 GS1 Databar Limited Enable Disable 2.5.24 GS1 Databar omnidirectional Enable Disable 2.5.25 GS1 Databar Expanded... -
Page 33: Data Matrix Code
User manual ‘DT322-O’ 2.5.27 Data matrix Code Enable Disable Enable Inverse DM Disable Inverse DM 2.5.28 MSI Enable Disable 2.5.29 QR Enable Disable Enable inverse QR Disable inverse QR Datum : feb-2024 pagina 33 van 44 Versie : 1.0... -
Page 34: Pdf417
User manual ‘DT322-O’ 2.5.30 PDF417 Enable Disable 2.5.31 Straight 2 of 5 Industrial Enable Disable 2.5.32 Maxicode Enable Disable 2.5.33 Interleave 2 of 5 (ITF5) setting ITF5 on (default) ITF5 off Datum : feb-2024 pagina 34 van 44 Versie : 1.0... -
Page 35: Aztec Code
User manual ‘DT322-O’ Enable ITF25 check character (default) Disable ITF25 Check Character Transmit ITF25 Check Character Do not Transmit ITF25 Check Charcter (default) 2.5.34 Aztec code Enable Disable Datum : feb-2024 pagina 35 van 44 Versie : 1.0... -
Page 36: Itf25 Length Setting
User manual ‘DT322-O’ 2.5.35 ITF25 length setting OPMERKING: If the maximum length is less than the minimum length, only the barcode of these two lengths will be Scan. If the maximum length is equal to the minimum length, only this length is supported. -
Page 37: Appendix
User manual ‘DT322-O’ 3. Appendix 3.1.1 Digital Barcodes Datum : feb-2024 pagina 37 van 44 Versie : 1.0... -
Page 38: Control Characters Table
User manual ‘DT322-O’ 3.1.2 Control Characters Table Scan Value Char Keystroke Ctrl combo 1000 Null CTRL 2 1001 Keypad Enter CTRL A 1002 Caps lock CTRL B 1003 Right Arrow CTRL C 1004 Up Arrow CTRL D 1005 Null CTRL E... - Page 39 User manual ‘DT322-O’ Scan Scan Scan Keystroke Keystroke Keystroke value value value 1033 1067 1101 1034 ‘ 1068 1102 1035 1069 1103 1036 1070 1104 1037 1071 1105 1038 & 1072 1106 1039 ‘ 1073 1107 1040 1074 1108 1041...
-
Page 40: Code Id
User manual ‘DT322-O’ 3.1.3 Code ID Code Barcode Type Barcode Type Code ID Code 128 GS1-128(UCC/EAN-128) AZTEC(Aztec Code) AIM 128 DM(DataMatrix) ISBT-128 MaxiCode EAN-8 Han Xin Code EAN-13 Code 32 Trioptic Code 39 ISBN/Bookland EAN Coupon Code UPC-E GS1 DataBar-14... -
Page 41: Aim Id
User manual ‘DT322-O’ 3.1.4 AIM ID Barcode Type AIM ID Description Code 128 Normal Data FNC1 at code word position 1 GS1-128(UCC/EAN-128) AIM 128 FNC1 at code word position 2 ISBT-128 General data EAN-8 data plus 2 additional bits EAN-8 ]E4…]E1…... - Page 42 User manual ‘DT322-O’ No check character output Deutsche Post 14 Normal data Deutsche Post 12 Common data NEC-25(COOP 2 of 5) Common data Common data Matrix 2 of 5 Industrial 2 of 5/ Common data Discrete 2 of 5/IND25 Standard 2 of 5 (IATA 25)
- Page 43 User manual ‘DT322-O’ MOD11 single character parity, but no parity characters Common data Plessey Normal data MOD10 checksum and outputs MSI-Plessey checksum characters MOD10 checksum, but no checksum characters Standard data packets GS1-DataBar（ RSS） No option specified at this point,...
- Page 44 User manual ‘DT322-O’ ECC 200 supports ECI protocol ECC 200, FNC1 in bits 1 or 5 and supports ECI protocol ECC 200, FNC1 in bit 2 or 6 and supports ECI protocol No option is specified at this MaxiCode time, always transmit 3...
