Disconnect all cables from the system board.
CAUTION:
Take care not to damage the system identification button while removing the system board
from the system.
Steps
1. Using the system board holder, slide the system board toward the front of the chassis.
2. Incline the system board at an angle and lift the system board out of the chassis.

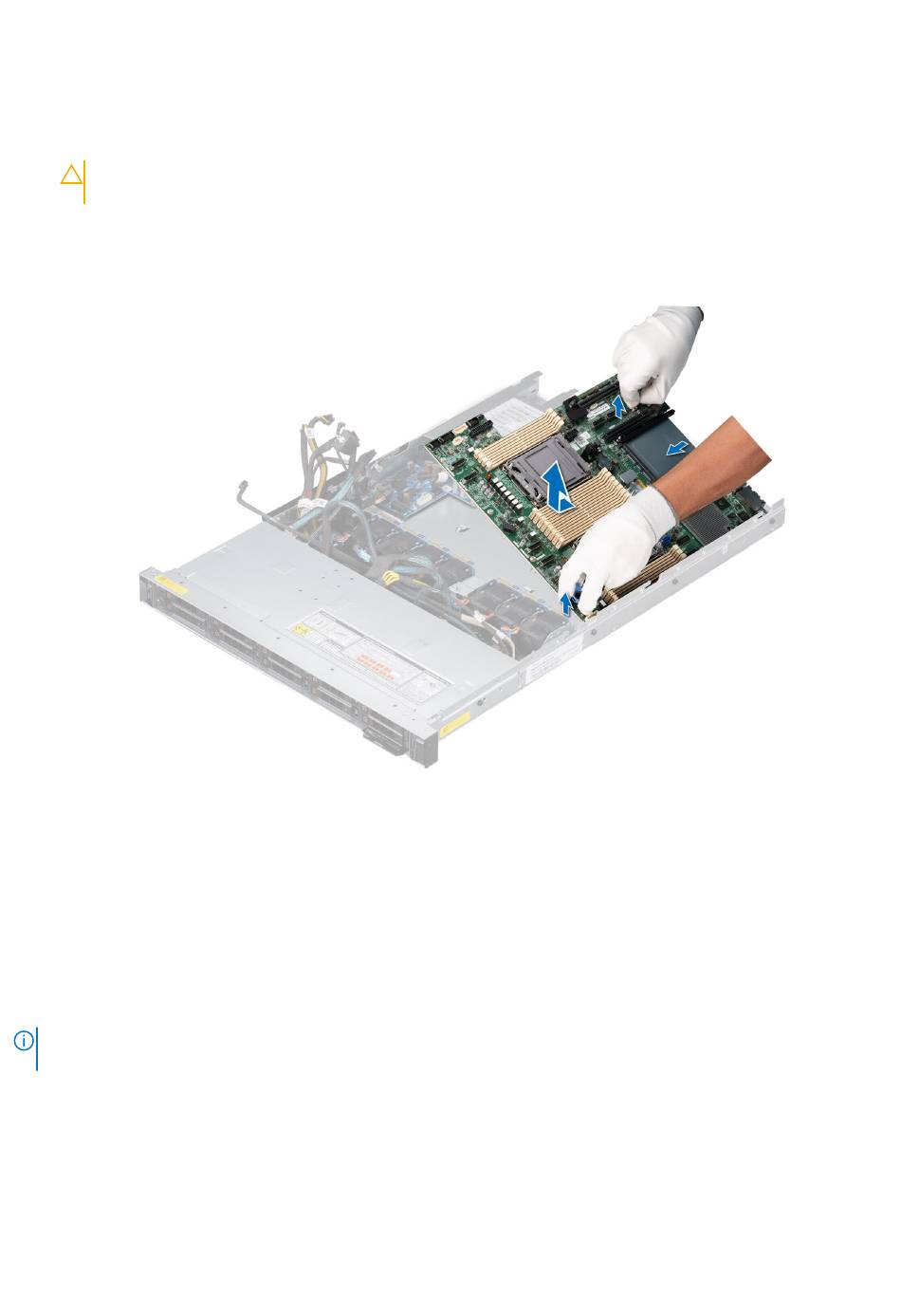

Figure 125. Removing the system board
Next steps
Install the system
board.
Installing the system board
Prerequisites
NOTE:
Before replacing the system board, replace the old iDRAC MAC address label in the Information tag with the iDRAC
MAC address label of the replacement system board
1. Follow the safety guidelines listed in the
2. Follow the procedure listed in
3. If you are replacing the system board, remove all the components that are listed in the
Steps
1. Unpack the new system board assembly.
Safety
instructions.
Before working inside your
system.
Installing and removing system components
removing the system board
section.
