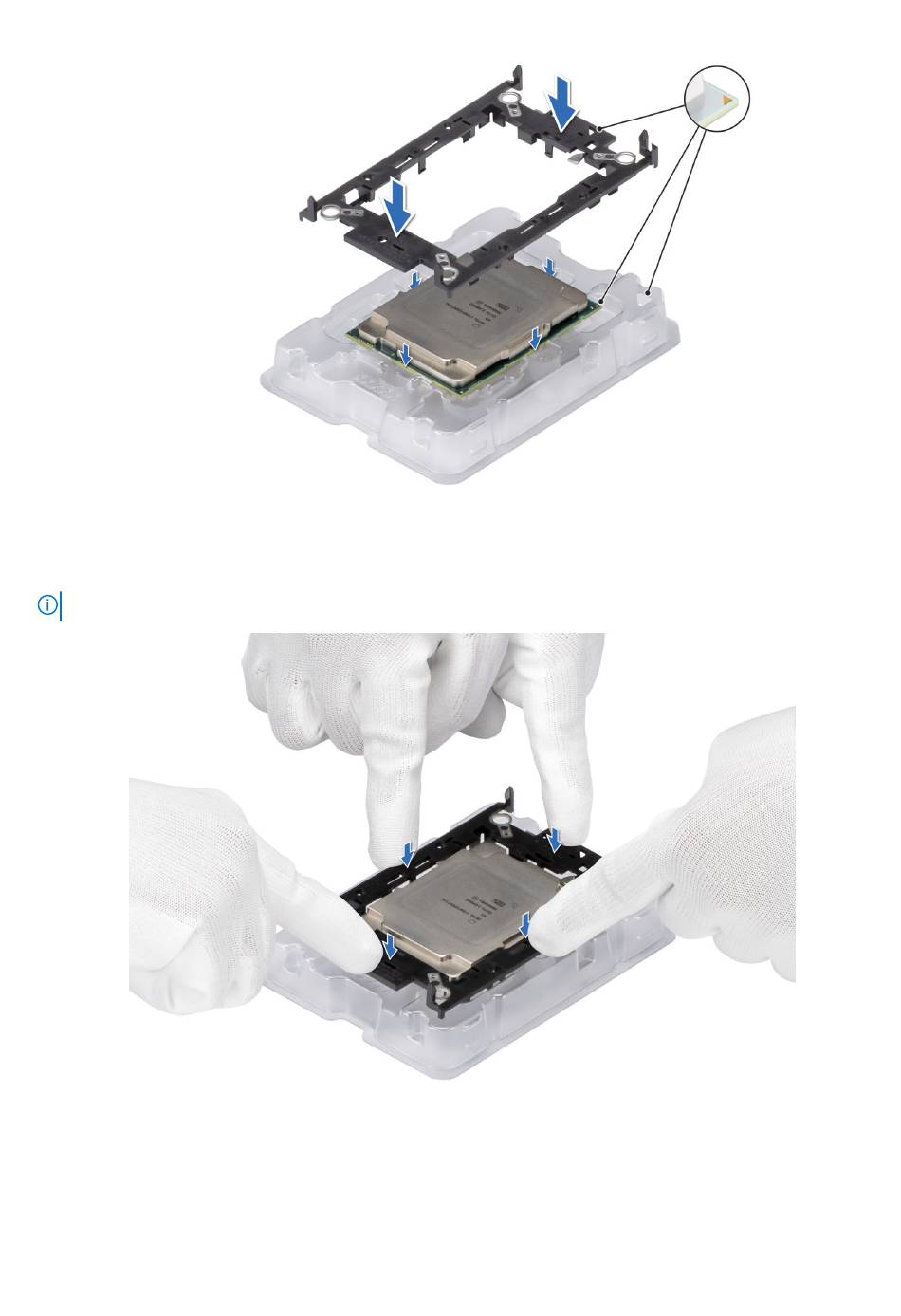

Figure 57. Installing the processor carrier
3. Align the processor with processor carrier by using your fingers to press the carrier on all the four sides until it clicks into
place.
NOTE:
Ensure that the processor is securely latched to the processor carrier.
Figure 58. Press the carrier on the four sides
4. If you are using an existing heat sink, remove the thermal grease on the heat sink by using a clean lint-free cloth.
5. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the bottom of the heat
sink.
66
Installing and removing system components
